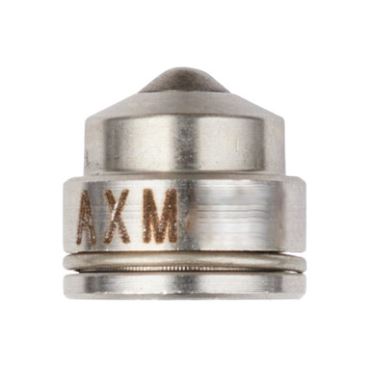

Graco AXM715 Performaa Spray Tip

Graco AXM715 Performaa Spray Tip has the following specifications:

• Orifice Size: 0.015 inches (0.381 mm)
• Fluid Output:
  • 600 psi (4.1 MPa, 41 bar): 16 fl oz/min (0.47 lpm)
  • 1000 psi (7.0 MPa, 70 bar): 21 fl oz/min (0.62 lpm)
• Maximum Pattern Width at 12 inches (305 mm): 14 to 16 inches (400 mm)

The AXM715 offers a larger orifice compared to smaller tips, which increases the fluid output. With a maximum pattern width of 14 to 16 inches, this spray tip is ideal for covering larger areas more efficiently while maintaining an optimal spray performance.
