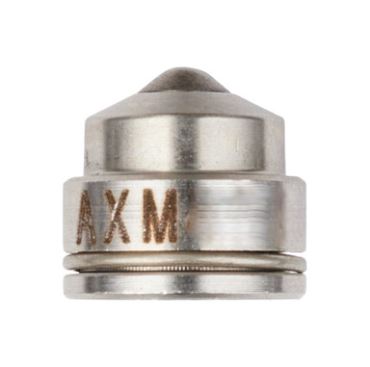

Graco AXM919 Performaa Spray Tip

Graco AXM919 Performaa Spray Tip has the following specifications:

AXM919 Specifications:

• Orifice Size:
  0.019 inches (0.483 mm)

• Fluid Output:

  • At 600 psi (4.1 MPa, 41 bar): 28.0 fl oz/min (0.8 L/min)
  • At 1000 psi (7.0 MPa, 70 bar): 36.3 fl oz/min (1.09 L/min)

• Maximum Pattern Width (at 12 inches / 305 mm distance):
  18 to 20 inches (500 mm)

Key Features:

• The orifice size of 0.019 inches (0.483 mm) allows for a moderate to high fluid output.
• At 600 psi, the output is 28.0 fl oz/min (0.8 L/min), and at 1000 psi, it increases to 36.3 fl oz/min (1.09 L/min).
• The maximum pattern width at 12 inches is between 18 to 20 inches (500 mm), providing wide coverage for large spraying or coating applications.

Summary:

The AXM919 spray tip is designed for moderate to high fluid flow and wide spray coverage. It offers substantial fluid delivery along with a large spray pattern, making it ideal for large-scale industrial, coating, or spraying applications that require both high fluid output and extensive coverage.
