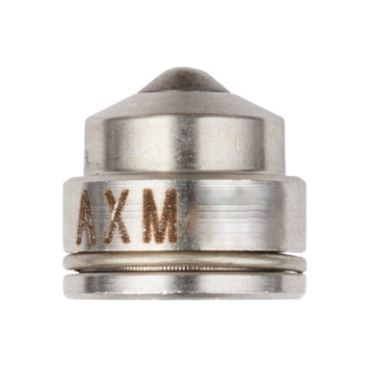

Graco AXM921 Performaa Spray Tip

Graco AXM921 Performaa Spray Tip has the following specifications:

AXM921 Specifications:

• Orifice Size:
  0.021 inches (0.533 mm)

• Fluid Output:

  • At 600 psi (4.1 MPa, 41 bar): 35.0 fl oz/min (1.0 L/min)
  • At 1000 psi (7.0 MPa, 70 bar): 45.4 fl oz/min (1.36 L/min)

• Maximum Pattern Width (at 12 inches / 305 mm distance):
  18 to 20 inches (500 mm)

Key Features:

• The orifice size of 0.021 inches (0.533 mm) provides a higher fluid output compared to smaller models, suitable for medium to large-scale applications.
• At 600 psi, the fluid output is 35.0 fl oz/min (1.0 L/min), and at 1000 psi, it increases to 45.4 fl oz/min (1.36 L/min), making it ideal for higher-volume spraying needs.
• The maximum pattern width at 12 inches is between 18 to 20 inches (500 mm), providing wide coverage for large-area applications.

Summary:

The AXM921 spray tip is designed for moderate to high fluid delivery with wide spray coverage. Its larger pattern width and substantial output make it suitable for medium to large-scale industrial applications, spraying, or coating tasks where both high output and broad coverage are necessary.
