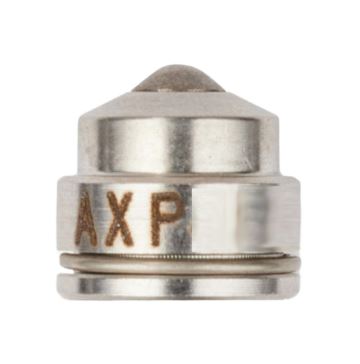

Graco AXP421 Performaa Precision Spray Tip

Graco AXP421 Performaa Precision Spray Tip Supersede Graco GG5421

It has the following specifications:

• Orifice Size: 0.021 inches (0.533 mm)
• Fluid Output:
  • At 600 psi (4.1 MPa, 41 bar): 35.0 fl oz/min (1.0 L/min)
  • At 1000 psi (7.0 MPa, 70 bar): 45.4 fl oz/min (1.36 L/min)
• Maximum Pattern Width: 8 to 10 inches (250 mm) at 12 inches (305 mm) from the spray tip.

This spray tip is ideal for high-volume spraying, offering a larger orifice size and higher fluid output. It is designed for applications that require significant material coverage while maintaining a moderate pattern width.
