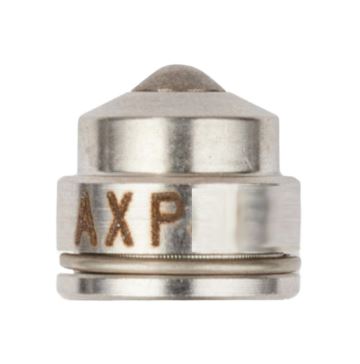

Graco AXP509 Performaa Precision Spray Tip

Graco AXP509 Performaa Precision Spray Tip Supersede Graco GG5509

It has the following specifications:

• Orifice Size: 0.009 inches (0.229 mm)
• Fluid Output:
  • At 600 psi (4.1 MPa, 41 bar): 7.0 fl oz/min (0.2 L/min)
  • At 1000 psi (7.0 MPa, 70 bar): 9.1 fl oz/min (0.27 L/min)
• Maximum Pattern Width: 10 to 12 inches (300 mm) at 12 inches (305 mm) from the spray tip.

This spray tip is designed for finer applications where a smaller orifice is necessary while still providing a larger pattern width. It works well for coatings or finishes requiring precision and even coverage.
