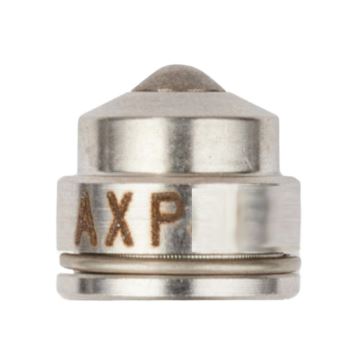

Graco AXP717 Performaa Precision Spray Tip

Graco AXP717 Performaa Precision Spray Tip has the following specifications:

• Orifice Size: 0.017 in (0.432 mm)
• Fluid Output:
  • At 600 psi (4.1 MPa, 41 bar): 22.0 fl oz/min (0.7 lpm)
  • At 1000 psi (7.0 MPa, 70 bar): 28.5 fl oz/min (0.85 lpm)
• Maximum Pattern Width at 12 inches (305 mm): 14 to 16 inches (400 mm)

The AXP717 has a slightly larger orifice size than the AXP715, delivering more fluid output at both 600 psi and 1000 psi. It maintains the same wider spray pattern range (14 to 16 inches), which makes it suitable for medium to large-scale applications where a broader coverage area is needed, while offering higher fluid delivery for more demanding tasks. This makes it ideal for large surface coatings or other high-output projects that require efficient fluid distribution.
