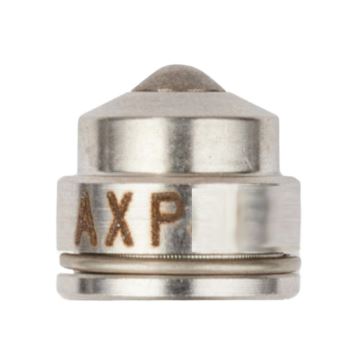

Graco AXP815 Performaa Precision Spray Tip

Graco AXP815 Performaa Precision Spray Tip Supersede Graco GG5815

It has the following key specifications:

• Orifice Size: 0.015 in (0.381 mm)
• Fluid Output:
  • At 600 psi (4.1 MPa, 41 bar): 17.0 fl oz/min (0.5 lpm)
  • At 1000 psi (7.0 MPa, 70 bar): 22.0 fl oz/min (0.7 lpm)
• Maximum Pattern Width at 12 in (305 mm): 16 to 18 in (450 mm)

This spray tip is slightly smaller in orifice size compared to the AXP719, offering a finer spray pattern and lower fluid output. It's suitable for applications that require more precision with a narrower output.
