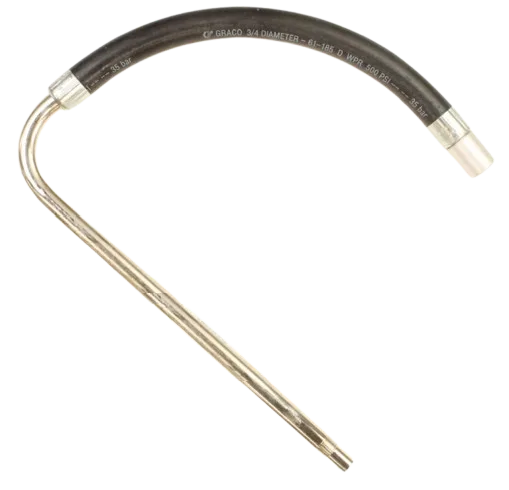

Graco 187624 Suction Hose
5/5
(1 review)
$214.38
$245.00
Save 12%
Out of Stock
The Graco 187624 Suction Hose is an OEM hose and metal intake assembly that draws paint or coating directly from the container to your sprayer pump. It ensures smooth flow and easy priming on select Graco airless sprayers.
- Durable OEM construction
- Includes metal intake tube
- Fits popular Graco 290–695 series sprayers
- Compatible with inlet strainer 235004 (sold separately)
This product has been discontinued by the manufacturer.
Genuine OEM Part
Fast Shipping (Order by 1 PM CST)
Easy Returns
Overview & Key Details
The Graco 187624 Suction Hose is an OEM hose + metal intake tube assembly that draws material from the bucket into the sprayer’s pump. It’s designed to maintain prime and flow on select Graco airless paint sprayers and accepts the common inlet strainer 235004.
Compatible Machines
- Graco ST 395 (Stand) / ST 495 (Stand)
- Graco Performance 395 (Stand) / Performance 495 (Stand)
- Graco UltraMax 695 (Lo-Boy)
- Graco EuroPro 395
- Graco 290 Easy
- Graco 395 ST (Stand)
- Graco 495 ST (Stand)
- Graco 390 Airless (various configs)
- Graco 490 Airless (various configs)
- Graco Pro501 Airless
- Graco Ultra 600 / Ultra Plus 600
Features & Benefits
- OEM fitment for reliable sealing and suction.
- Hose + metal intake tube assembly for stable pickup and reduced collapse under suction.
- Strainer-ready: threaded metal end accepts 235004 inlet strainer.
- Built for water-, solvent- and common coating compatibility (refer to coating SDS).
Specifications
| Part Number | 187624 |
|---|---|
| Assembly | Suction Hose with metal intake tube (strainer sold separately) |
| Strainer Interface | Accepts Graco 235004 inlet strainer |
| Use With | Selected Graco 290/390/395/490/495/600/695 series models listed above |
| Application | Material pickup from container to pump inlet on airless paint sprayers |
What’s Included
- 187624 Suction Hose
- Metal intake tube (pre-attached)
- Note: 235004 inlet strainer is not included
Installation Tips
- Thread the 235004 inlet strainer onto the hose’s metal end (hand-tight, then snug).
- Seat the metal intake tube fully into the sprayer’s pump inlet.
- Prime with clean water/solvent compatible with your coating before use; check for leaks.
Frequently Asked Questions
The hose includes the metal intake tube, but the 235004 inlet strainer is sold separately.
Check the Compatible Machines list above. If your model is a Graco 290/390/395/490/495, Ultra/Ultra Plus 600, or UltraMax 695 (Lo-Boy) variant, this is usually the correct suction assembly. When in doubt, match by sprayer model number or contact us.
Yes, if the strainer threads and screen are in good condition. Many users replace the 235004 at the same time to ensure proper filtration and priming.
Hard starting/losing prime, visible cracks, air leaks at the intake, or a collapsed/flattened hose under suction are common indicators that the 187624 Suction Hose should be replaced.
The assembly is designed for typical architectural coatings. Always verify chemical compatibility with your coating’s SDS and flush the system per Graco guidelines.
5
1 review
1
0%
2
0%
3
0%
4
0%
5
100%
P
Paul P.
The 187624 Suction Hose (Part #187624) - installation took less than ten minutes. Exactly what was described - no complaints.
