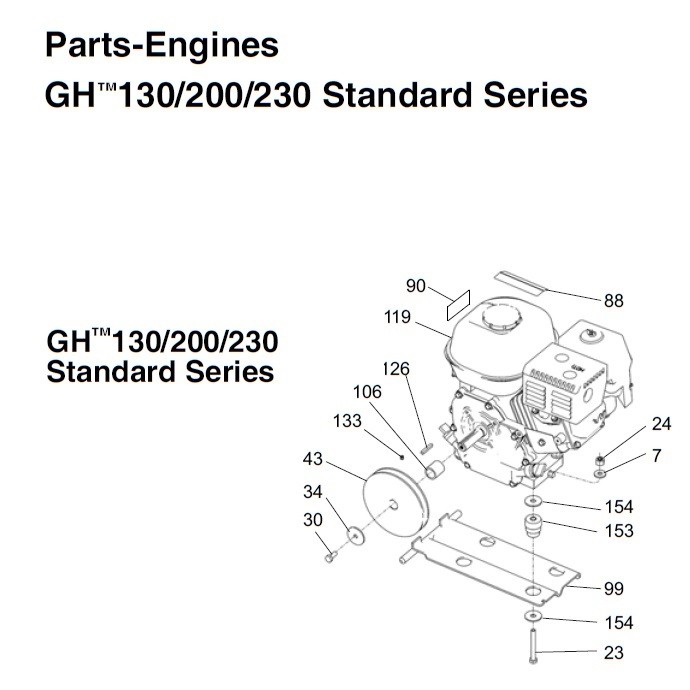

Graco GH130 Engine Parts List

Graco GH130 Engine Parts Complete Selection of Factory-Approved Graco GH130 Engine Parts List in Stock

GH130 convertible gas-hydraulic sprayer is the entry ticket to big-output performance on a tight footprint. Its 5.5 HP Honda GX160 drives a closed-loop hydraulic pump that powers an Endurance Chromex fluid section. Rated at 3 000 psi / 206 bar and 1.4 gpm (5.3 L min^-1), the GH130 covers everything from acrylic elastomerics to epoxy intumescents without flinching. That muscle disappears, though, the moment a carb jet gums, a governor spring stretches, or a hydraulic seal weeps. That’s why professional roofers, fireproofers and industrial painters trust SprayersAndParts.com for serialized OEM graco machine parts.

Graco's GH130 Engine is a top-notch machine used in the GH130 series. It is in high demand by not so experienced contractors to meet high-end demands. If you need maximum power in a small package, this engine delivers just that! We have original graco replacement parts for this product.

Why Choose Genuine GH130 Engine Parts?

• Exact Honda tolerances. OEM carburettors and governor springs keep the GX160 at 3 600 rpm, delivering rock-steady hydraulic pressure copy-cat carbs drift lean, starving the pump for torque.
• Temperature-proof hydraulic seals. Factory PTFE/Viton compounds withstand 180 °F ISO-46 oil, where nitrile knock-offs swell and leak in under 200 hours.
• Laser-balanced drive couplings. The aluminium/fibre spider limits run-out to <10 µm, saving crank bearings and reducing vibration that cracks welds.
• Warranty intact. Mixing third-party engine parts voids Graco’s two-year pump and Lifetime Advantage Drive coverage stay genuine, stay protected.

Key Specs & Top-Mover Kits

Compatible Machines—One Bin, Many Rigs

Because Graco builds on common engine platforms, a single GH130 parts bin rescues multiple rigs:

• GH 200 & GH 230. Share GX160 filters, governor gear and 287879 coupling ideal for fleets mixing midsize and high-output units.
• GMAX 5900 & GMAX 7900. Same fuel filter, spark plug and air filter elements; swap engine tune-up kits across garco gas sprayers effortlessly.
• LineLazer 3400 stripers. Uses identical recoil assembly and muffler; bring one pull-start kit for both sprayer and striper.
• Ultra Max II 695 PC (gas-conversion). Oil alert sensors and starter cups match, streamlining ultra max ii 695 procontractor series electric airless sprayer hybrids.
• Magnum Project Painter Plus. Though electric, it shares RAC X guards; stocking magnum project painter plus parts alongside GH130 seals standardises consumables.

Smart Accessory Bundles That Pay for Themselves

1. Full-Service Engine Kit. Plug, foam & paper filters, fuel filter, two quarts 10W-30, governor spring, and recoil rope torque chart included.
2. Hydraulic Seal + Coupling Pack. 248977 seal set and 287879 coupling swap in 40 minutes, stopping “ghost pressure” spikes.
3. BlueMax II Hose & graco whip hose. 50 ft × ⅜ in main plus 3 ft ¼ in whip dampen pulsation, extending seal life by 20 %.
4. RAC X LP Tip Trio. .017, .021 and .025 tips + guard cover everything from trim lacquer to roof mastic.

Field-Proven Maintenance Blueprint Five Habits for 1 000-Hour Engines

1 — Oil every 100 hrs. 10W-30 API SJ, torque drain bolt 30 N·m.
2 — Clean foam pre-filter daily. Hot water + dish soap stop dust scoring the bore.
3 — Replace fuel filter at 250 hrs. Gum kills carbs.
4 — Check governor spring weekly. 5 mm deflection maintains 3 300 psi output.
5 — Inspect coupling each oil change. Replace spider if elastomer cracks $18 part saves a $600 crankshaft.

Ready to Re-Power Your GH130?

Open the live parts list, tick your tune-up kit, seal pack, and coupling, then hit Add to Cart. One freight fee, one tracking link, one bullet-proof fix see you on tomorrow’s jobsite.

Checkout our website and place your order today!!!
