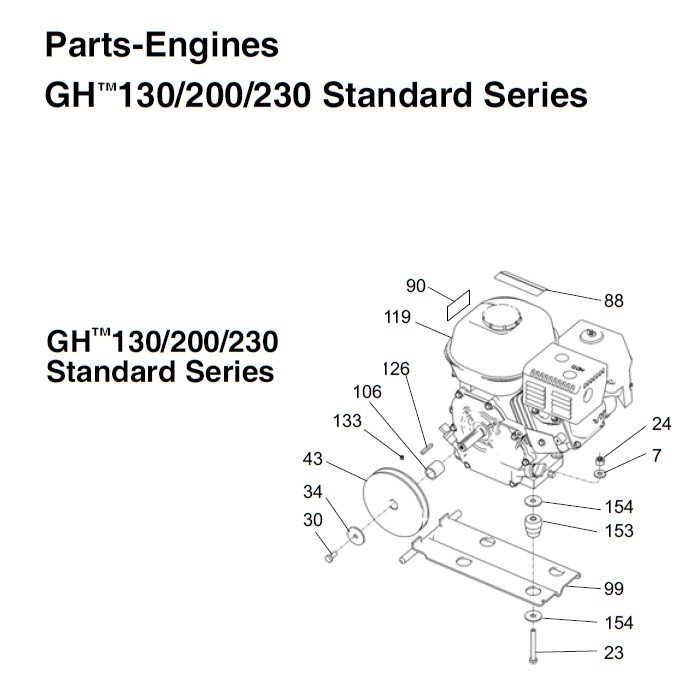

Graco GH230 Engine Parts

Downtime on a GH230 can cost thousands per hour. Whether you’re blasting intumescent coating onto structural steel or spraying two-part polyurea on a water tank, you can’t afford a blown recoil spring or a clogged fuel filter. Graco® GH230 relies on a Honda® GX270 9 HP engine coupled to a high-efficiency hydraulic pump that drives an Endurance™ MAXLIFE fluid section. When any piece of that powertrain falters, production stops. That’s why pros look to SprayersAndParts.com for factory-serialized graco paint sprayers parts that bolt in, prime up and put money back on the clock. From spark plugs to hydraulic pump couplings, we stock every OEM component that keeps the GH230 roaring.

Why Choose Genuine GH230 Engine Parts?

Exact Honda® tolerances. OEM GX270 carburettors and governor springs preserve the 3 600 rpm band Graco calibrates for steady 3 300 psi spray pressure. Copy-cat carbs drift lean, starving the hydraulic pump of torque.
Hydraulic seal chemistry. Factory Viton™ and PTFE seals withstand 180 °F ISO-46 oil, where aftermarket nitrile swells and leaks after only 200 hours.
Coupling-laser balance. OEM aluminium/fibre drive couplings are balanced to 10 µm run-out, eliminating the shaft whip that eats crank bearings.
Full warranty kept intact. Non-OEM engine parts void Graco’s two-year pump and Lifetime Advantage Drive™ coverage—stay genuine, stay covered on all graco parts.

Core Specs & Top-Seller Kits

Engine	Honda GX270 9 HP OHV • recoil & electric start
Hydraulic Oil	ISO-46 (5.7 L reservoir)
Fuel Tank	5.3 L (1.4 gal) — 2.5 hr @ full load
Tune-Up Kit	06290-Z6L-305 — plug, filter, pre-filter, oil seal
Coupling Kit	287879 silent-flex aluminium + fibre spider
Hydraulic Seal Kit	248977 piston + rod wipers, Graco Viton O-rings
Governor Spring	16561-ZE2-013 (high-altitude variant also stocked)

Which Machines Benefit from These GH230 Engine Parts?

A smart inventory strategy covers multiple rigs with one bin of spares. GH230 engine components fit or share key cross-parts with:

DutyMax GH275 & GH300—identical GX270 governor and recoil assembly.
GMAX 7900 Gas-Powered Sprayers—same 287879 coupling and air filter element.
LineLazer V 3900 & 5900 Stripers—fuel filter, spark plug & muffler interchange.
Magnum XR7 when converted to job-site generator use—carry graco magnum xr7 parts plus the GX270 tune-up kit so one service call covers both machines.
Ultra Max II 695 PC with G-Gas kit—GX160 block, but shares the same oil-alert sensor and starter cup.

Smart Bundles That Slash Downtime

Full-Service Engine Kit. Plug, paper + foam filters, governor spring, fuel filter, two quarts 10W-30, and a new recoil rope—pre-boxed with torque chart.
Hydraulic Seal + Coupling Pack. 248977 seal set + 287879 coupling; swap both in 30 minutes to stop “ghost pressure” spikes.
BlueMax II Hose & Whip. A 3/8 in × 50 ft main plus 3 ft ¼ in whip dampen pulsation and protect new seals—a must-add graco airless sprayer accessories.
RAC X™ LP Tip & Guard Trio. .017, .021, .025 tips with safety guard—perfect for loaner guns or rentals.

Pro Maintenance Blueprint—Five Habits for 1 000-Hour Engines

1 • Oil every 100 hrs. 10W-30 API SJ; torque drain bolt 30 N·m.
2 • Clean foam pre-filter daily. Hot water + dish soap stops dust scoring the bore.
3 • Log fuel hours. Replace fuel filter every 250 hrs—gum kills carbs.
4 • Check governor spring tension weekly. 5 mm deflection keeps 3 300 psi rock-steady.
5 • Inspect coupling at every oil change. Replace spider if elastomer cracks—$18 part saves a $600 crankshaft.

Order, Track, Run—Get Back to Spraying

Open the live parts list, tick your tune-up, seal, and coupling kits, then hit Add to Cart. One freight fee, one tracking link, one bullet-proof engine by tomorrow.
