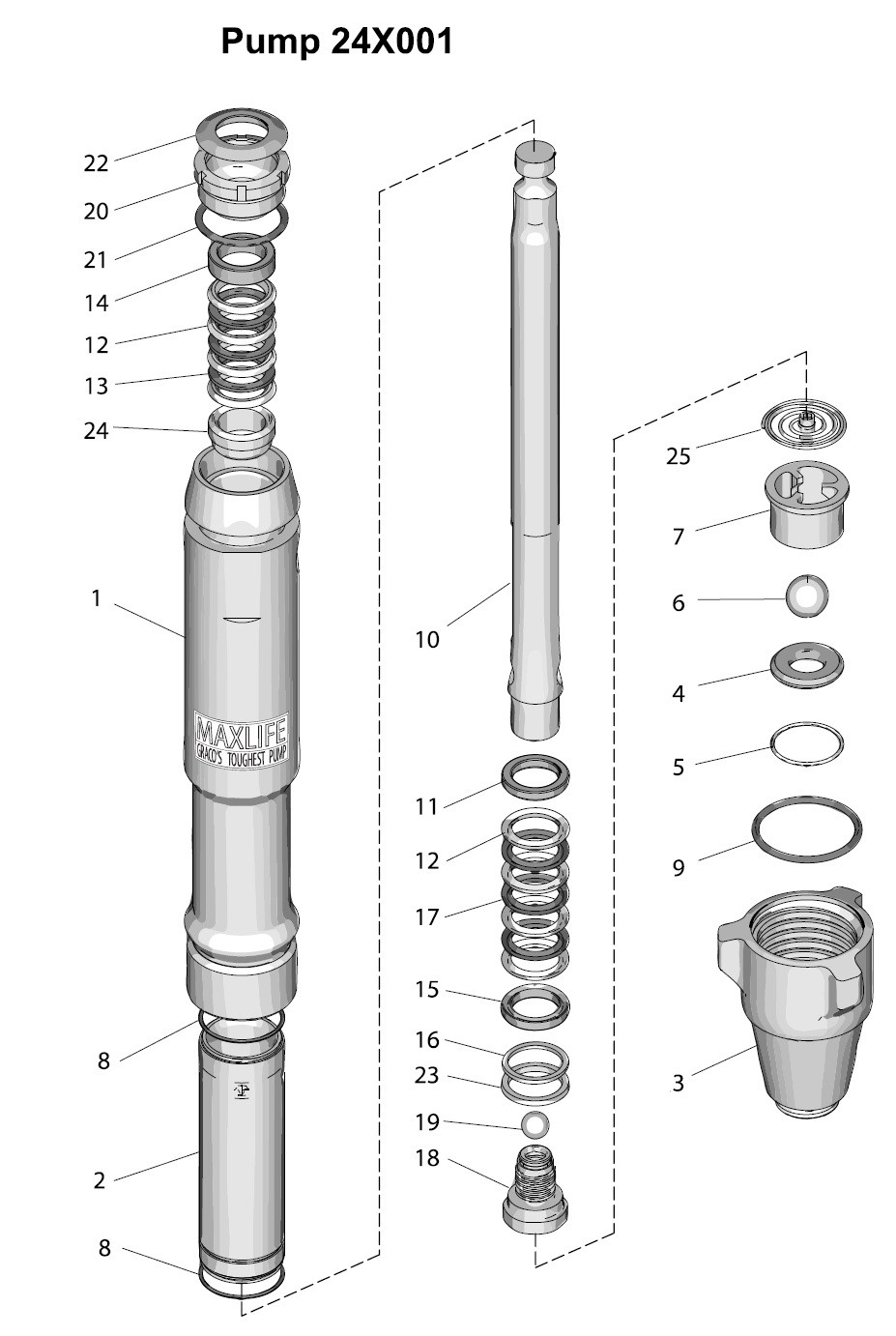

Graco GH300 HD Series Pump Parts (24X001)

Graco 24X001 Displacement Pump

Item No: -

Part Number: 24X001

UPC Number: 755652005513

The Graco 24X001 Displacement Pump is a genuine OEM fluid section designed for high-duty TexSpray Du...

Retail Price: $3790.00

You save: $1288.6 (34.00%)

Our Price: $2501.40

QTY:

Graco 24X096 Packing Repair Kit

Item No: --

Part Number: 24X096

UPC Number: 755652005520

Graco 24X096 Packing Repair Kit is an OEM kit designed to restore pump performance and stop leaks in...

Retail Price: $274.50

You save: $68.62 (25.00%)

Our Price: $205.88

QTY:

Graco 24N013 Foot Valve Repair Kit

Item No: ---

Part Number: 24N013

UPC Number: 633955114869

Retail Price: $272.50

You save: $34.06 (12.50%)

Our Price: $238.44

QTY:

Graco 17D125 Cylinder Repair Kit for DM 230/300 Pro

Item No: 1

Part Number: 17D125

UPC Number: 755652005469

Precision Repair Kit for Graco 17D125 Cylinder DM 230/300 Pro Model The Graco 17D125 Kit Repair Cyli...

Retail Price: $811.00

You save: $129.76 (16.00%)

Our Price: $681.24

QTY:

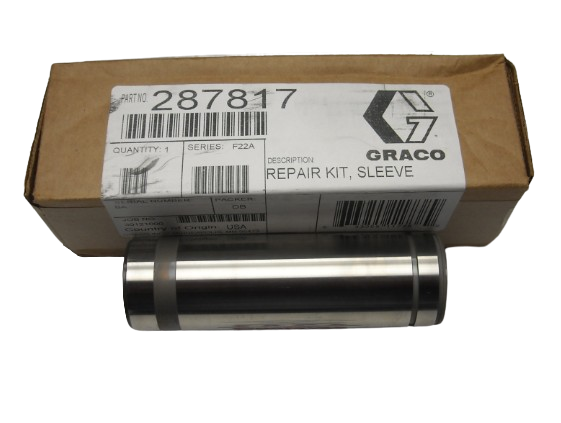

Graco 287817 Pump Cylinder Sleeve Repair Kit

Item No: 2

Part Number: 287817

UPC Number: 633955117389

The Graco 287817 Pump Cylinder Sleeve Repair Kit restores full pressure and performance in GH-series...

Retail Price: $944.00

You save: $264.32 (28.00%)

Our Price: $679.68

QTY:

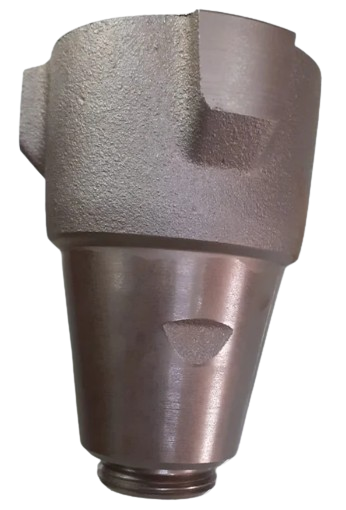

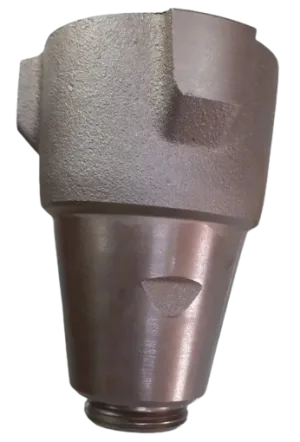

Graco 15A303 Intake Housing

Item No: 3

Part Number: 15A303

UPC Number: 633955859265

Optimize fluid intake and maintain consistent pump performance with the Graco 15A303 Intake Housing....

Retail Price: $196.50

You save: $20.44 (10.40%)

Our Price: $176.06

QTY:

Graco 15J038 Carbide Seat

Item No: 4

Part Number: 15J038

UPC Number: 633955193390

Heavy-duty carbide seat designed for long-lasting sealing performance in high-pressure spray systems...

Retail Price: $191.50

You save: $19.92 (10.40%)

Our Price: $171.58

QTY:

Graco 107098 O-Ring Packing

Item No: 5

Part Number: 107098

UPC Number: 633955331549

The Graco 107098 Packing O-Ring provides reliable sealing in high-pressure Graco spray and fluid sys...

$11.98

QTY:

Graco 118602 Ceramic Ball .875 in Diameter

Item No: 6

Part Number: 118602

UPC Number: 633955037618

The Graco 118602 Ceramic Ball ensures precise sealing and smooth operation in high-pressure airless ...

Retail Price: $155.00

You save: $16.12 (10.40%)

Our Price: $138.88

QTY:

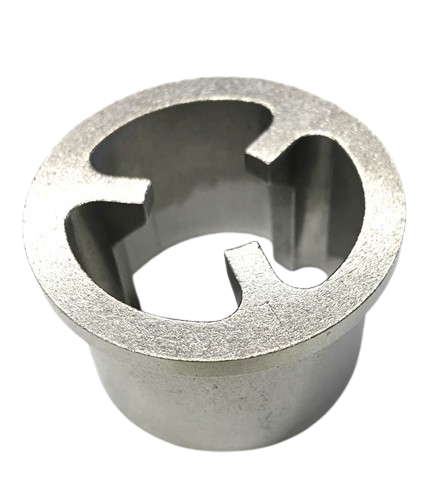

Graco 193391 Ball Guide

Item No: 7

Part Number: 193391

UPC Number: 633955855861

Retail Price: $59.75

You save: $4.53 (7.58%)

Our Price: $55.22

QTY:

Graco 108822 Packing O-Ring

Item No: 8

Part Number: 108822

UPC Number: 633955486751

The Graco 108822 Packing O-Ring is a genuine PTFE seal designed for durability and leak prevention i...

$7.94

QTY:

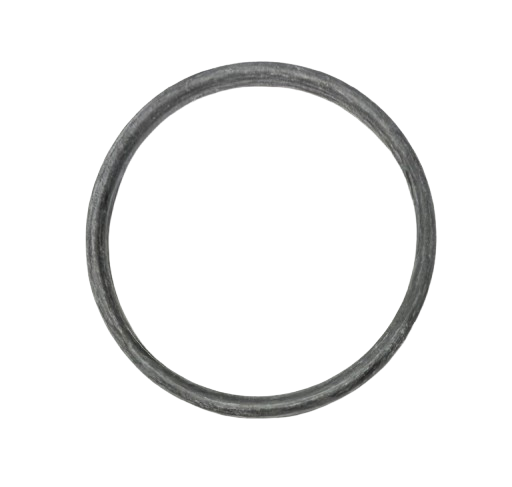

Graco 160325 O-Ring Packing

Item No: 9

Part Number: 160325

UPC Number: 633955404847

The Graco 160325 O-Ring Packing provides a tight seal to prevent air and fluid leakage in high-press...

$29.51

QTY:

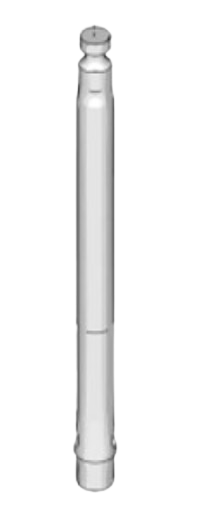

Graco 288821 Pump Piston Rod

Item No: 10

Part Number: 288821

UPC Number: 633955105744

The Graco 288821 Pump Piston Rod is a genuine OEM replacement part designed for heavy-duty TexSpray ...

Retail Price: $373.00

You save: $97.73 (26.20%)

Our Price: $275.27

QTY:

Graco 189585 Male Gland Packing

Item No: 11

Part Number: 189585

UPC Number: 633955642089

Graco 189585 Male Gland Packing – Precision Pump Maintenance The Graco 189585 Male Gland Packing i...

Retail Price: $28.80

You save: $0.58 (2.01%)

Our Price: $28.22

QTY:

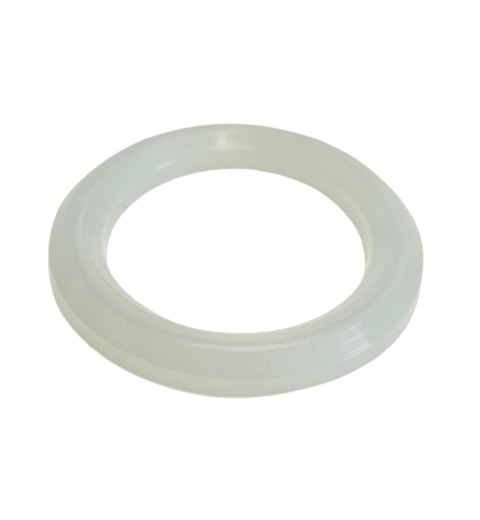

Graco 198701 Packing Vee Piston

Item No: 12

Part Number: 198701

UPC Number: 633955729445

$9.11

QTY:

Graco 198718 Packing Vee

Item No: 13

Part Number: 198718

UPC Number: 633955729452

$20.72

QTY:

Graco 15G657 Female Gland

Item No: 14

Part Number: 15G657

UPC Number: 633955117297

The **Graco 15G657 Female Gland** provides a secure, leak-free seal for female-threaded connections ...

$19.64

QTY:

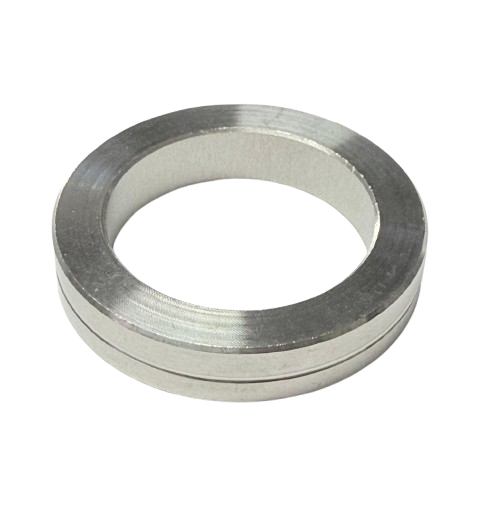

Graco 198765 Female Gland Packing

Item No: 15

Part Number: 198765

UPC Number: 633955729834

$24.87

QTY:

Graco 119636 Piston Wiper

Item No: 16

Part Number: 119636

UPC Number: 633955048485

The Graco 119636 Wiper/Piston is a crucial replacement part that ensures smooth performance by maint...

$9.76

QTY:

Graco 15F875 Packing Vee

Item No: 17

Part Number: 15F875

UPC Number: 633955609143

The Graco 15F875 Packing Vee is an OEM V‑packing seal for Graco pumps — designed to seal piston/...

$11.78

QTY:

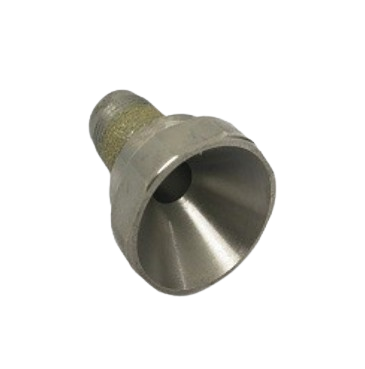

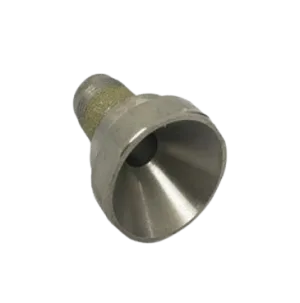

Graco 287388 Piston Valve

Item No: 18

Part Number: 287388

UPC Number: 755652960409

Retail Price: $58.75

You save: $4.46 (7.59%)

Our Price: $54.29

QTY:

Graco 118601 Ceramic Ball

Item No: 19

Part Number: 118601

UPC Number: 633955037465

Retail Price: $38.00

You save: $0.76 (2.00%)

Our Price: $37.24

QTY:

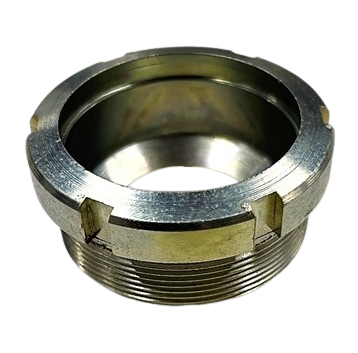

Graco 15J792 Packing Nut

Item No: 20

Part Number: 15J792

UPC Number: 633955212084

The Graco 15J792 Packing Nut secures packing assemblies in fluid systems, maintaining seal integ...

Retail Price: $31.50

You save: $0.63 (2.00%)

Our Price: $30.87

QTY:

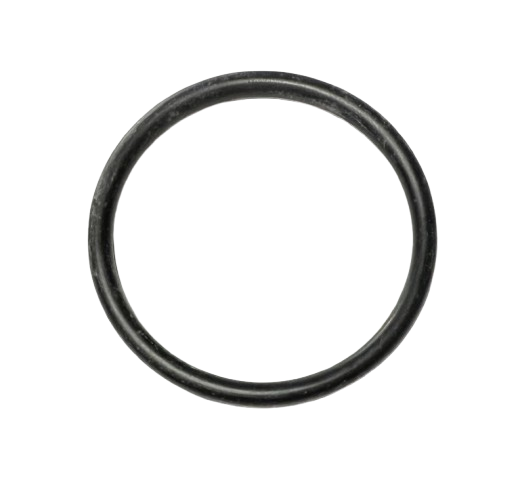

Graco 157195 O-Ring Packing

Item No: 21

Part Number: 157195

UPC Number: 633955192898

The Graco 157195 O-Ring Packing provides reliable sealing to prevent leaks and maintain pressure in ...

$20.00

QTY:

Graco 112590 Throat Seal Plug

Item No: 22

Part Number: 112590

UPC Number: 633955634558

The Graco 112590 Throat Seal Plug is an OEM replacement designed to prevent fluid leaks and maintain...

$6.30

QTY:

Graco 15J800 Back-Up Washer

Item No: 23

Part Number: 15J800

UPC Number: 633955143555

Ensure reliable pump performance with the Graco 15J800 Back-Up Washer, designed for durability and p...

$18.23

QTY:

Graco 15G658 Male Gland Packing

Item No: 24

Part Number: 15G658

UPC Number: 633955117310

The Graco 15G658 Male Gland Packing delivers a tight, durable seal for high-pressure spray systems, ...

$27.51

QTY:

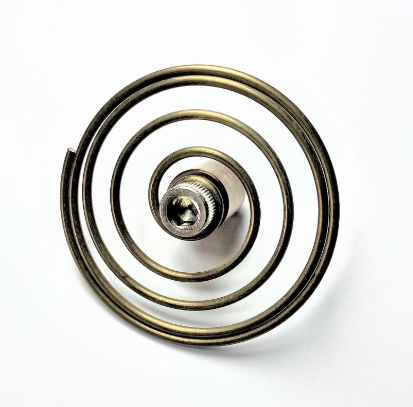

Graco 24E027 Intake Ball Spring

Item No: 25

Part Number: 24E027

UPC Number: 633955586239

Retail Price: $46.70

You save: $2.57 (5.50%)

Our Price: $44.13

QTY:

Stay Job‑Ready with Durable Graco GH300 HD Series Pump Parts (24X001)

When reliability and performance matter, professionals trust Graco GH300 HD Series Pump Parts (24X001)—available now at Sprayersandparts.com. Our curated inventory includes everything from OEM-grade pump components to Graco Magnum Project Painter Plus parts diagrams, helping contractors spec, source, and ship the right parts in one hassle-free stop.

Why Choose Genuine Graco GH300 HD Series Parts?

Precision-engineered to meet original equipment tolerances for long-term uptime
Tested for chemical compatibility and pressure ratings—unlike generic alternatives
Backed by Graco warranties and real-world technical support from industry veterans

Key Features & Specifications

Our listings detail part dimensions, material grades, and PSI ratings, making it easy to match components across sprayers and rigs. Whether you're upgrading with Graco paint sprayer hoses or fitting legacy tools like Graco fine finish guns, our clear specs give you confidence in every purchase.

Fast Shipping & Expert Support

For qualifying orders placed by 12 Noon, they ship same-day from our Graco warehouse. Need help with torque specs or part compatibility? Our experienced technicians are just a click away.

Pro Tips for Maximizing Longevity

Track service intervals to prevent costly mid-job breakdowns
Replace seal kits with fresh lubricant to extend pump life
Keep spare Graco paint sprayer parts on hand to minimize downtime
Use color-coded bins to separate parts like the Graco Magnum Project Painter Plus 257025 and Graco texture sprayer guns for quick identification

Ready to Upgrade?

Add Graco GH300 HD Series Pump Parts (24X001)—including high-performance airless paint sprayer attachments—to your cart today. Experience smoother workflows, longer equipment life, and expert support on your next jobsite.
