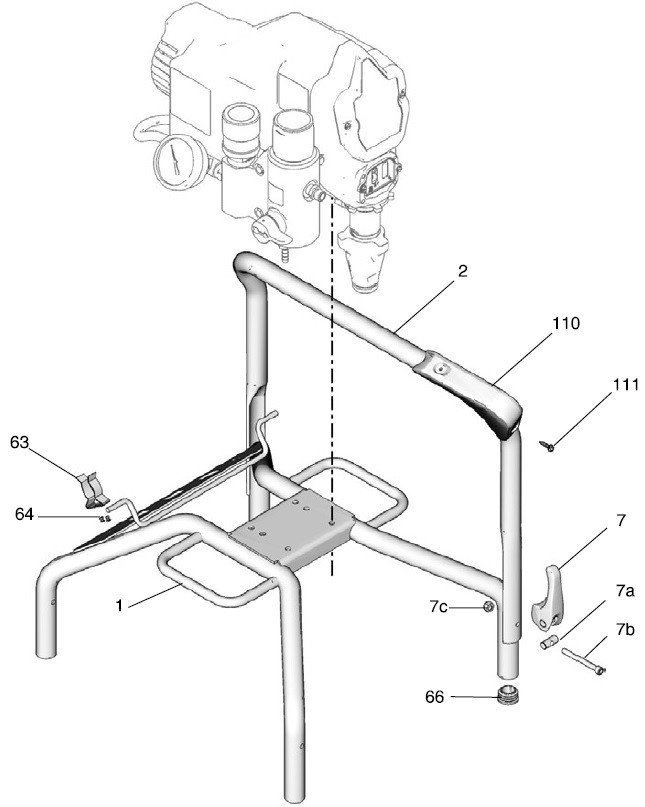

Graco 190ES Stand Parts (Model: 255847, 255848) (Part 2)

Graco 190ES Stand Parts (Model: 255847, 255848) (Part 2)

Find, Fit, and Finish Faster with Graco 190ES Stand Parts (Model 255847, 255848) – Part 2 Essentials

When your job depends on consistency, efficiency, and quality, there’s no substitute for OEM parts—especially for the Graco 190ES stand (models 255847 and 255848). Contractors looking to upgrade or maintain this engine-driven gas airless sprayer rely on Sprayersandparts.com for expertly curated, factory-authorized parts that are guaranteed to fit right and function flawlessly.


1. Why Genuine Graco 190ES Stand Parts Matter

 Maintains Precision Fit

Every bolt, seal, and weld on your 190ES stand is factory-tuned. OEM replacement parts—such as frame brackets, wheel assemblies, and hose guides—match these tolerances precisely, eliminating play, noise, or instability during operation.

 Built for Durable, Heavy-Duty Use

Spraying heavy coatings in rough environments puts stress on your stand’s structure. OEM parts are tested for impacts, vibration, and torque loads to ensure safe operation where generic aftermarket knock-offs might fail unexpectedly.

 Complete Compatibility

OEM parts are designed to integrate with your 190ES engine, hose routing components, and sprayer pack-off. They work with accessories like the Magnum Project Painter Plus, spray guards, and optional Order Graco Machines add-ons—without improvisation.

 Warranty Coverage & Expert Support

Genuine parts retain Graco’s warranty, offer full technical documentation, and provide peace of mind. Our team includes certified Graco specialists available to assist with configuration checks, torque specs, and parts cross-referenced to serial numbers.


2. Stand Structure & Mobility Essentials (Part 2 Highlights)

From wheel kits to hose guides, these are the key structural elements for 255847/255848:

  1. Wheel Assemblies & Axle Kits
    Heavy-duty wheels and bearings designed for rugged terrain, fully serviceable with threaded retainers and grease ports.

  2. Hose Clips & Guides
    OEM parts route hoses over a secure path to prevent twisting and damage under full pressure (up to 3300 PSI).

  3. Frame Legs & Cross-Braces
    Engineered to support gas engines, pump units, and materials load — these parts make your stand rigid under heavy use.

  4. Handle Brackets & Tow Ring
    Precise fit ensures the stand stays balanced when you carry or tow it; includes vibration-damped handles.

  5. Pump Mounting Plate
    Aligns the fluid section for ideal spray flow; prevents vibration and stress on fittings.

  6. Engine Cage & Guards
    Includes panels and heat shields designed for engine-to-pump airflow and safety.

  7. Accessories Mounting Points
    Perfectly positioned mount pads for additions like gun holsters, cart trays, and hose reels.


3. Key Features & Specs

Each part listing includes vital specs to guarantee compatibility:

  • Dimensions & Material Grades — Powder-coated steel, anodized metals, or polymer guards

  • Load Ratings — Wheels rated for full weight load of 250–350 lbs

  • Pressure Compatibility — Hose guides tested to stay stable under 3300 PSI spray thrust

  • Bolt Patterns & Torque — Engine-to-frame applications require precise torque (e.g. 48–60 ft-lb)


4. Fast Shipping & Expert Support

  • Same-Day Dispatch if ordered by 12 PM Central (Terms & Conditions apply)

  • Graco U.S.-based warehouse simplified logistics, 1–3 day shipping nationwide

  • Technical guidance available—contact us to match serial, model, season, or GTA edition


5. Pro Tips for Long-Term Reliability

  • Log Maintenance Intervals — Keep track of runs and replace wear parts before failure.

  • Inspect Bolts & Frames Regularly — Torque standing bolts and welds to maintain rigidity.

  • Grease Wheel Bearings every 100 hours or monthly.

  • Check Hose Clip Tension to prevent whisking or line tension that can shorten service life.

  • Clean After Every Job to minimize buildup, erosion, and element damage.


6. Cross-Model Compatibility

Graco carefully designed the 190ES stand to be used with related models:

  • Graco 390 PC Pump units

  • Graco Magnum Project Painter Plus units

  • Graco 395 / 495 Ultra Max units with similar attachments

  • Graco spray guard kits

This overlap provides operational flexibility across mixed fleets


8. Sustainability Commitment

  • Long-life OEM parts reduce replacement frequency and equipment disposal

  • Local U.S. shipping cuts carbon footprint


9. Recommended Stand Parts to Stock

Part Description Purpose
Wheel & Axle Assembly Kit Enables easy transport over rough job terrain
Hose Guide Clip – 3300 PSI Keeps hose safe, aligned, and out of the way
Frame Leg w/ Replaceable Foot Pad Provides stable stance and prevents concrete wear
Handle Bar + Bracket Ensures balanced carry and easy wagon setup
Engine Mount Plate Kit Keeps engine aligned with pump to prevent torque stress
Spray Gun Holder Convenient storage and quick access on stand
