Graco 390 Electric Airless Classic Pump 246428 Parts

Keep Your Gear Running with Authentic Graco 390 Electric Airless Classic Pump 246428 Parts Replacements

When the performance of your Graco 390 sprayer hinges on every component, contractors trust Sprayersandparts.com for authentic Graco 390 Electric Airless Classic Pump 246428 parts. Our full factory-authorized inventory includes everything from Graco TrueCoat 360 replacement parts to essential Graco airless pump components, letting pros spec, source, and ship within one optimized buying experience.

Why Choose Genuine Graco 390 Electric Airless Classic Pump 246428 Parts?

When a project's success depends on consistent pressure and performance, inferior or mismatched parts are not an option. Authentic Graco parts let you:

•  Maintain OEM-level precision and compatibility—designed to exact tolerances to minimize downtime.

•  Trust chemical compatibility and pressure thresholds, essential for professional-grade coatings.

•  Rely on full manufacturer warranties, supported by both Graco and our seasoned support staff.

Understanding the 246428 Pump: Specs & Applications

At the heart of the Graco 390 Classic electric sprayer system is the 246428 displacement pump, a rugged workhorse designed to handle up to 3,000 PS. It’s the engine that delivers consistent, powerful spray—whether you’re applying architectural coatings or performing detailed finish work.

This pump is common to multiple models, including the 390 Classic, Ultra 395, and others—making it a versatile and high-demand part among contractors.

What Makes Up the 246428 Pump Assembly?

According to the official Graco parts lists, the 246428 pump assembly includes the major components you’ll need to maintain fluid delivery and sealing integrity:

• 246428 Displacement Pump Body

• 195150 Jam Nut & 115099 Washer

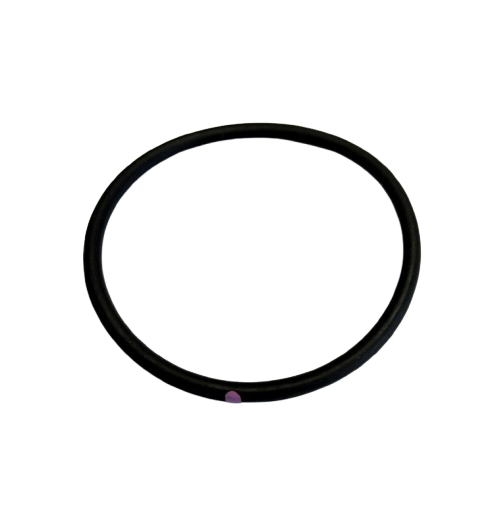

• 117559 O‑Ring Packings

• 162453 1/4 NPSM x 1/4 NPT Fittings

• 287003 Coupled Hose

• 15H977 Filter Manifold

• Control Valve Assemblies (Pressure Control, Drain Valve)

• 246385 or 235004 Strainers (depending on model)

These parts form the backbone of your sprayer’s fluid system—directly affecting pressure consistency, spray pattern, and system priming.

Real-World Value for Contractors

Top-tier contractors understand that reliability isn't optional—it’s essential. Here's why:

• Exact Fit: OEM components require no modifications or guesswork.

• Chemical Tested: Compatible with a broad range of coatings and cleaning solvents.

• Uptime-Driven: Rated for high-pressure performance and sustained use.

Whether tackling residential painting or full commercial jobs, the peace of mind that comes with factory-authorized 246428 parts is invaluable.

Easy-to-Read Listings & Part Diagrams

Every Graco part we offer is paired with:

• Clear material and PSI specs

• Thread style and size details

• OEM part numbers and superseded references

• Side-by-side photos and exploded diagrams

This makes it easy to match your pump assembly or find replacement components, even for older or discontinued rigs

Fast Shipping from Central Warehouse

We get it—a sprayer breakdown isn't planned. With Sprayersandparts.com, orders placed before 12 PM Central time are shipped same-day from  Graco warehouse—delivering parts quickly whether you're in Houston, Dallas, or coast to coast (Terms & Conditions apply). Expect:

• Fast ground and expedited delivery

• Live tracking notifications

• Secure, recyclable packaging

• Straightforward returns on eligible parts

Technical Support Backed by Experience

Our team isn’t just customer service—it's seasoned sprayer specialists. Need help with torque specs or O-ring seating procedures? We’ve got you.

Ask us about:

• Pressure-control valve torque settings

• Input-output fitting sizing

• Rear cover installation

• Pump priming procedure

We blend OEM guidance with hands-on know-how.

Pro Tips for Longevity & Performance

Maximize your sprayer life with these field-tested practices:

1. Log Service Intervals: Replace wear items—like packings and seals—proactively to prevent failure.

2. Lubricate on Install: A light coat on every seal installation reduces friction and premature wear.

3. Stock Critical Spares: Keep back-ups like packings, O-rings, filters, and valves onsite.

4. Color-coded Storage: Organize parts like Graco sprayer filters and Magnum LTS parts for easy access during breakdowns.

These small steps can save hours—and dollars—on the job.

Why Contractors Choose Sprayersandparts.com

We’re not just parts sellers—we’re jobsite partners:

• 100% Genuine Graco parts

• Same-day shipping from central U.S.

• Expert technical support

• Detailed photo charts and exploded diagrams

• Easy ordering, reordering, and shipping tracking

• Contractor-level pricing and volume options

Ready to Keep Your 390 Sprayer Running?

No more guessing or generic parts. Equip your 390 Classic sprayer with OEM Graco 246428 pump components—and spray with confidence. Whether you're replacing one O-ring or rebuilding the entire pump, we’ve got what you need.

Browse our 246428 pump parts inventory or search using your sprayer diagram to find the exact fit. Don’t let a worn packer slow you down—order genuine Graco replacements today and stay spray-ready tomorrow.
