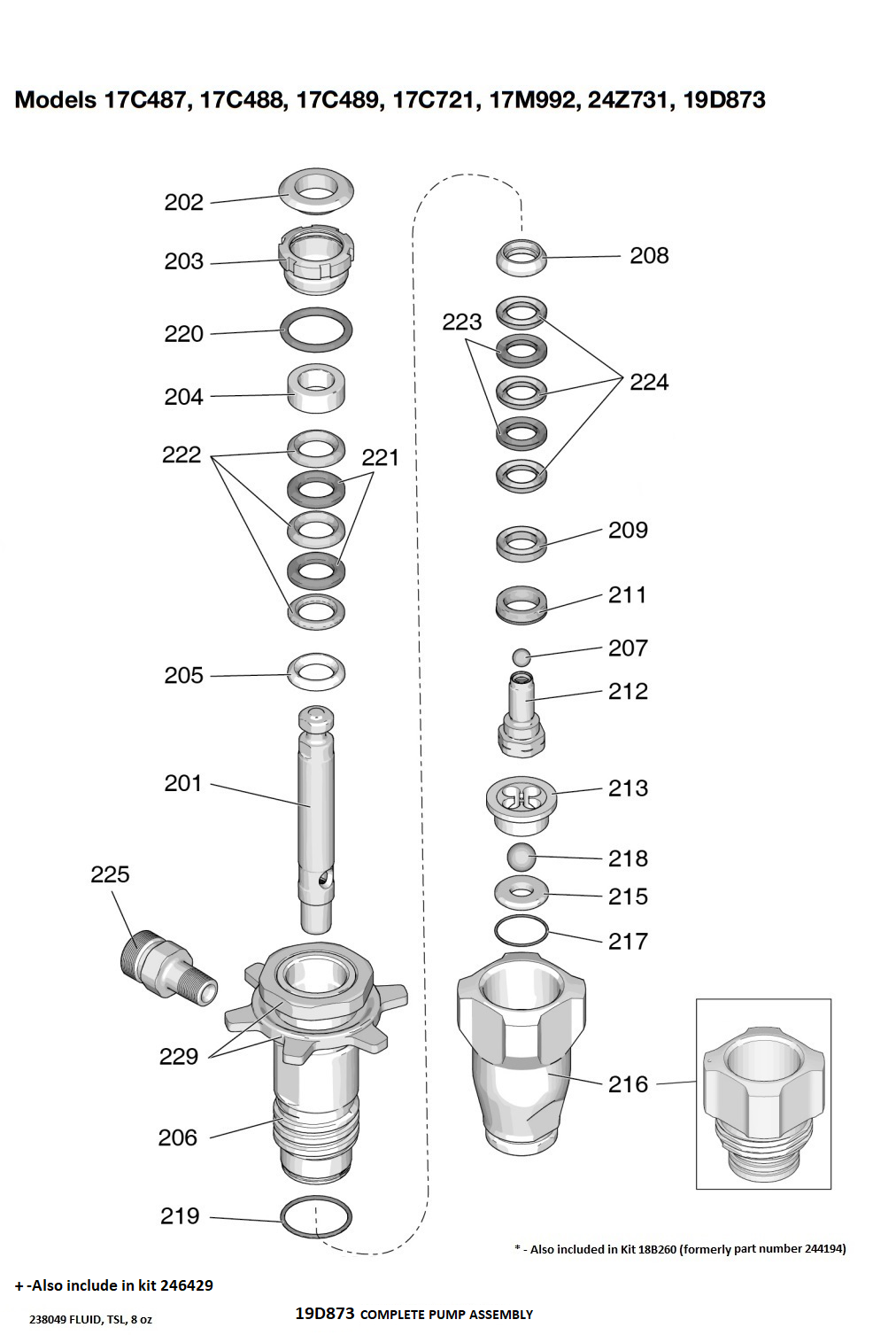

Graco 490 XT Lo-Boy Pump Assembly (19D873) Electric Airless Sprayer Parts Breakdown

Graco 490 XT Lo-Boy Pump Assembly (19D873) Electric Airless Sprayer Parts Breakdown
Product Image
Graco 19D873 Pump Kit

Item No: -

Part Number: 19D873

UPC Number: 769946281163

Retail Price: $434.00
You save: $63.36 (14.60%)
Our Price: $370.64
QTY:
Product Image
Graco 18B260 Pump Packing Kit for Graco 290 to 595 Sprayers

Item No: --

Part Number: 18B260

UPC Number: 755652963097

Graco 18B260 Pump Packing Repair Kit for Graco 390, Ultra 395, 495, 595, Ultra Max II 490 & 595, rep...

Retail Price: $101.50
You save: $28.36 (27.94%)
Our Price: $73.14
QTY:
Product Image
Graco 238049 Throat Seal Liquid - 4 oz (TSL)

Item No: --

Part Number: 238049

UPC Number: 633955609204

$12.26
QTY:
Product Image
Graco 24W617 Piston Rod

Item No: 201

Part Number: 24W617

UPC Number: 633955695382

Graco 24W617 Piston Rod Replacement for ProConnect Pump The Graco 24W617 Piston Rod Replacement is a...

Retail Price: $138.50
You save: $29.64 (21.40%)
Our Price: $108.86
QTY:
Product Image
Graco 180656 Button Plug

Item No: 202

Part Number: 180656

UPC Number: 633955261822

$7.13
QTY:
Product Image
Graco 193047 Packing Nut

Item No: 203

Part Number: 193047

UPC Number: 633955823280

Retail Price: $34.00
You save: $0.68 (2.00%)
Our Price: $33.32
QTY:
Product Image
Graco 176757 Female Gland Packing

Item No: 204

Part Number: 176757

UPC Number: 633955068124

$8.69
QTY:
Product Image
Graco 176754 Male Gland Packing

Item No: 205

Part Number: 176754

UPC Number: 633955371729

$13.69
QTY:
Product Image
Graco 2004756 Cylinder Kit

Item No: 206

Part Number: 2004756

UPC Number: 769946838893

Retail Price: $160.50
You save: $34.35 (21.40%)
Our Price: $126.15
QTY:
Product Image
Graco 105444 Ball Stainless Steel (31250)

Item No: 207

Part Number: 105444

UPC Number: 633955478855

Precision Stainless Steel Replacement Ball for Graco Sprayers Optimize your sprayer performance with...

$7.13
QTY:
Product Image
Graco 195129 Male Piston Gland

Item No: 208

Part Number: 195129

UPC Number: 633955930896

$10.71
QTY:
Product Image
Graco 15G234 Piston Wiper

Item No: 211

Part Number: 15G234

UPC Number: 633955088917

$6.80
QTY:
Product Image
Graco 180073 Female Gland Packing

Item No: 209

Part Number: 180073

UPC Number: 633955528215

$16.82
QTY:
Product Image
Graco 239937 Piston Valve

Item No: 212

Part Number: 239937

UPC Number: 633955794092

Retail Price: $69.00
You save: $5.24 (7.59%)
Our Price: $63.76
QTY:
Product Image
Graco 15C011 Inlet Ball Cage

Item No: 213

Part Number: 15C011

UPC Number: 633955950153

Upgrade Your Graco 15C011 Ball Cage for Peak Performance The Graco 15C011 Ball Cage is engineered to...

$20.72
QTY:
Product Image
Graco 19D287 Intake Housing Valve

Item No: 216

Part Number: 19D287

UPC Number: 769946841312

Retail Price: $78.50
You save: $6.52 (8.31%)
Our Price: $71.98
QTY:
Product Image
Graco 246429 Inlet Valve and Carbide Seat Kit

Item No: 215

Part Number: 246429

UPC Number: 633955950085

Retail Price: $59.00
You save: $4.48 (7.59%)
Our Price: $54.52
QTY:
Product Image
Graco 15B112 O-Ring Packing

Item No: 217

Part Number: 15B112

UPC Number: 633955017290

$6.30
QTY:
Product Image
Graco 105445 Ball Stainless Steel (0.5000 inch)

Item No: 218

Part Number: 105445

UPC Number: 633955014640

Precision Stainless Steel Intake Ball for Graco 390 105445 Engineered for high-flow accuracy, this 0...

$7.51
QTY:
Product Image
Graco 17V093 O-Ring Packing

Item No: 219

Part Number: 17V093

UPC Number: 755652703938

  Seal out leaks and pressure loss with the OEM Graco 17V093 O-Ring Packing. A flawless sea...

$8.87
QTY:
Product Image
Graco 160516 O-Ring Packing 214

Item No: 220

Part Number: 160516

UPC Number: 633955381414

Reliable Graco 160516 O-Ring Packing 214 Replacement Ensure peak performance of your airless sprayer...

$22.53
QTY:
Product Image
Graco 176755 Vee Throat Leather Packing

Item No: 221

Part Number: 176755

UPC Number: 633955194267

$12.26
QTY:
Product Image
Graco 192710 V-Packing

Item No: 222

Part Number: 192710

UPC Number: 633955793927

$13.33
QTY:
Product Image
Graco 176749 Vee Leather Packing

Item No: 223

Part Number: 176749

UPC Number: 633955147010

$8.69
QTY:
Product Image
Graco 192712 Vee Piston Packing

Item No: 224

Part Number: 192712

UPC Number: 633955793934

$10.90
QTY:
Product Image
Graco 17C231 Pump Fitting 1/4 npt

Item No: 225

Part Number: 17C231

UPC Number: 755652268116

$11.73
QTY:
Product Image
Graco 162453 Nipple Fitting 1/4NPSM X 1/4NPT

Item No: 225a

Part Number: 162453

UPC Number: 633955087712

Graco 162453 Nipple Fitting is a genuine Graco Nipple Fitting that ensures  secure and leak-free co...

$24.66
QTY:

Get the Right Graco 490 XT Lo‑Boy Pump Assembly (19D873) Electric Airless Sprayer Parts Breakdown Components for Peak Performance

In the high-paced world of professional spraying, equipment reliability spells the difference between finishing on schedule and facing costly delays. The Graco 490 XT Lo‑Boy Pump Assembly (19D873) stands as a resilient, well-designed cornerstone of many spray rigs—but even this workhorse needs the right parts to maximize uptime and longevity. At Sprayersandparts.com, we’ve built a reputation as the factory-authorized supplier of genuine Graco parts, offering everything from major pump units to fine valves, filters, and rebuild kits—complete with the expert insight to keep you spraying at full capacity.


Why OEM Matters: The Value of Genuine Graco 490 XT Parts

1. Precision Engineering for Consistent Fit & Output

OEM components are crafted within exact tolerances. That means you’ll maintain steady pressure, a stable spray pattern, and reliable performance—every time.

2. Chemical & Pressure Compatibility

Graco tests each part under rigorous conditions: high-viscosity coatings, solvents, high temperatures, and extreme pressures. Counterfeit or aftermarket parts frequently fail these criteria—leading to costly downtime.

3. Warranty Integrity & Expert Guidance

Using genuine parts protects your warranty, and our technical team—drawn from seasoned field operators—offers installation advice, torque specs, and troubleshooting to back you up at every step.


Comprehensive Breakdown of 490 XT Pump Assembly (19D873)

The 490 XT Lo‑Boy pump assembly isn’t just one piece—it comprises a number of interworking parts that each need to be maintained. At Sprayersandparts.com, we break it all down for you:

• Pump Assembly / Housing

Central to fluid movement, featuring precision-fit housings, mounting hardware, and robust construction to handle thick materials.

Piston Rod Kit

Hardened, coated piston rods engineered to resist wear, along with sleeves and bearings.

• Packing & Seal Kits

Complete kits featuring Bytek™ V-rings, O-rings, fan packings, and all necessary hardware for a leak-free assembly.

• Inlet Suction Assembly

Includes hoses, clamps, quick couplers, and suction filters designed to stand up to harsh jobsite environments.

• Prime/SPGM-Valve

Switches your pump between spray and prime, precision-crafted to minimize internal leakage.

• Check Ball Kit

Includes seats and balls—ensuring efficient material movement and backup flow control.

• Filters & Strainers

Manifold, suction, and inline filters to protect sensitive parts from premature wear.

• Motor Brushes & Electrical Bits

Ensures your electric motor performs dependably under load, with replacement brushes, control boards, and plugs.

• Fluid End Hardware Kits

Clamps, seals, retainer plates—making it easy to rebuild without missing small parts.

• Spray Gun and Tip Components

Cross-compatible with RAC X tips, Magnum X7 guns, and robust guards for edge protection.


Key Features & Specs: Exact Details You Need

Our product listings include the following critical specifications:

  • ✅ Pressure ratings: Up to 3300 PSI

  • ✅ Material specs: Stainless steel, Viton™, UHMW, steel grades

  • ✅ Dimensions & thread types for perfect fitment

  • ✅ Coating compatibility: Latex, primers, enamels, textures

  • ✅ Torque specs for safe assembly

  • ✅ Model crossmatch: Includes notes for parts shared with Graco 7900 or 490 XT units

Knowing bolt diameter, pump placement, and seal compatibility ensures you buy once—and install with confidence.


Fast Shipping & Expert Support

When the clock ticks, delays hurt. That's why:

  • Orders by 12 PM Central ship same day (Terms & Conditions apply)

  • Central U.S. shipping reduces transit time

  • In-house experts available for immediate tech questions

  • Returns/exchanges handled seamlessly if you doubt your fit

Our team can walk you through breakdown diagrams, torque values, or help identify which part matches your serial number.


Pro Tips for Long-Term Performance

  1. Log Spray Hours - Track usage to stage planned maintenance ahead of failures.

  2. Swap Complete Seal Kits - Always replace with correct lubricant.

  3. Store Key Spares – Keep filters, valves, tips on-site for fast swaps.

  4. Use Color-Coded Bins – Keep 490 XT parts separate from those of Magnum X7, Graco 7900, etc.

  5. Inspect Before Each Job – Check hoses, filters, and plumbing before turning on.


Compatible Machines & Upgrades

Our 490 XT parts often cross-fit these Graco systems:

  • Graco 7900, Graco Ultra Max II

  • Graco Magnum X7

  • Graco TrueCoat 360 VSP/DS

  • Graco Spray Texture Machines

Whether you're upgrading cold-weather seal compounds or changing paint types, we've got crossover parts ahead of sprayer lines.






OEM vs. Aftermarket: Know the Difference

Criterion OEM Graco Parts Aftermarket Parts
Fit & Finish ✅ Exact OEM specs ❌ Generic fitment
PSI Reliability ✅ Guaranteed 3300+ PSI ⚠ Possibly lower rating
Chemical Resistance ✅ Certified ⚠ Inconsistent quality
Warranty ✅ Factory-backed ❌ Rarely covered
Technical Support ✅ Full help ❌ Minimal assistance



What’s in Your Cart? Suggested Components

  • OEM Graco 490 XT Lo‑Boy Pump Assembly

  • Inlet suction and clamp kits

  • Full packing/seal kits with lubricant

  • Manifold filters & suction strainer assemblies

  • RAC X fine-finish tips, Magnum X7 gun rebuild kits

  • Motor brushes and electrical spares

  • Pressure sensors/covers for spray control

Each part optimized for quick swap, reliable assembly, and long-term performance.






Ready to Maximize Sprayer Performance?

Don’t let minor wear turn into major bottlenecks. Whether you’re:

  • Replacing seals after seasonal shut-down

  • Upgrading inlet lines for thicker coatings

  • Restoring pump pressure and flow

  • Reconfiguring for Magnum X7-style spray guns

—you can get everything you need right here. Add genuine Graco 490 XT Lo‑Boy Pump Assembly (19D873) parts to your cart and stay job-ready, every day.
