High-Efficiency Electric Double Diaphragm Pump for Industrial Fluid Handling
Compatible Machines
- Graco Quantm Electric Double Diaphragm (EODD) Pump Systems
- Industrial fluid transfer systems requiring HE Series Quantm Pumps
- Applications using high-efficiency electric diaphragm pump technology
- OEM and replacement setups designed for QHE-series configurations
Product Overview

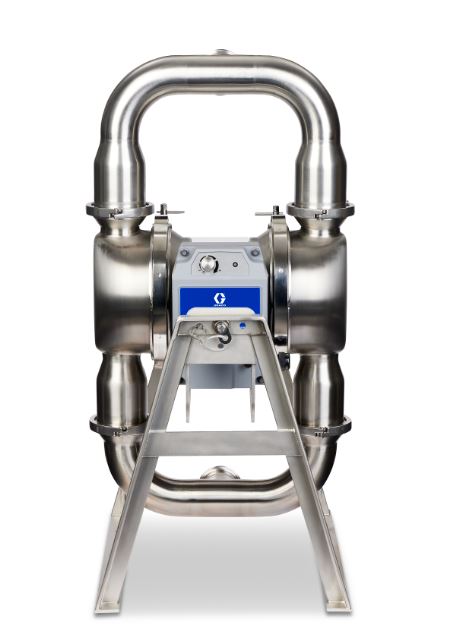

The Graco HE120-0144 Quantm Pump, QHE-PHFF1SSCWPOEPSSA0021 is a next-generation electric-operated double diaphragm (EODD) pump engineered to deliver superior energy efficiency, consistent flow control, and reduced operating costs. Designed as part of Graco’s innovative Quantm platform, this pump eliminates the inefficiencies associated with traditional pneumatic systems by utilizing advanced electric drive technology.
Built with precision and durability in mind, this model is ideal for handling a wide range of industrial fluids, including chemicals, coatings, and other demanding materials. Its robust construction and intelligent design ensure long service life, minimal maintenance, and reliable performance in continuous-duty environments.
Key Features
| Advanced Electric Drive | Provides significantly higher energy efficiency compared to traditional air-operated pumps |
| Quantm Technology | Delivers consistent flow rates with reduced pulsation and improved control |
| Durable Construction | Engineered for long-lasting performance in harsh industrial environments |
| Reduced Operating Costs | Minimizes energy consumption and maintenance requirements |
| Quiet Operation | Electric design ensures lower noise levels compared to pneumatic alternatives |
Applications
- Chemical processing and transfer
- Coatings and finishing systems
- Water and wastewater treatment
- Industrial fluid handling operations
- OEM equipment integration
Installation & Usage Tips
- Ensure compatibility with your Quantm system configuration before installation
- Install in a clean, dry environment to maximize performance and lifespan
- Regularly inspect diaphragms and seals for wear
- Use recommended fluids and operating conditions for optimal efficiency
- Follow manufacturer guidelines for electrical setup and safety compliance
Frequently Asked Questions
The Quantm pump uses an advanced electric drive instead of compressed air, resulting in higher efficiency, lower energy costs, and more precise flow control.
Yes, it is designed for continuous-duty applications and provides reliable performance in demanding industrial environments.
It can handle a wide range of fluids including chemicals, coatings, and other industrial liquids, depending on material compatibility.
No, the electric design reduces wear and eliminates air system maintenance, resulting in lower overall maintenance requirements.
