Advanced Electric Diaphragm Pump for Precision Fluid Transfer
Compatible Machines
- Compatible with Graco QUANTM Electric Double Diaphragm Pump Systems
- Designed for Graco EODD (Electric Operated Double Diaphragm) platforms
- Suitable for automated industrial fluid handling systems
- Integrates with high-efficiency electric pump configurations
Product Overview

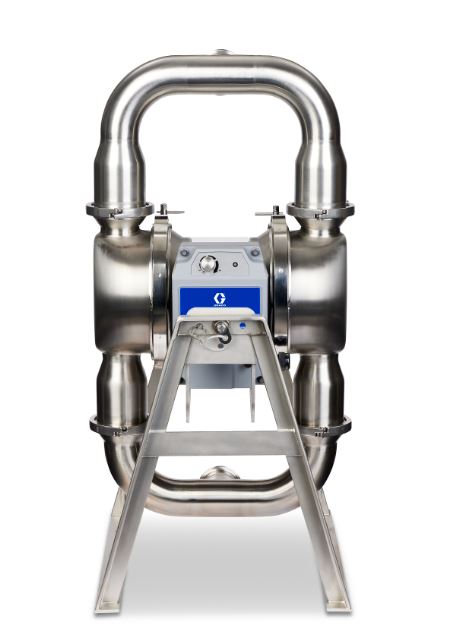

The Graco HE120-0149 Quantm Pump, QHE-PHFF1SSPTPOEPSSA0021 is a high-performance electric-operated double diaphragm (EODD) pump engineered to deliver consistent, energy-efficient fluid transfer. As part of the advanced QUANTM series, it replaces traditional air-driven systems with a modern electric drive that improves operational efficiency and reduces energy consumption.
Built with a durable stainless steel fluid section, this pump is designed for handling a wide range of industrial fluids while maintaining reliability in demanding environments. Its optimized design ensures smooth, low-pulsation flow and precise control, making it ideal for automated and high-precision applications.
Key Features
| Technology | Electric Double Diaphragm (EODD) |
| Model | HE120-0149 / QHE-PHFF1SSPTPOEPSSA0021 |
| Material | Stainless Steel for corrosion resistance and durability |
| Efficiency | Lower energy consumption compared to pneumatic pumps |
| Flow Performance | Stable, low-pulsation output with precise control |
| Maintenance | Reduced wear components for longer service intervals |
Applications
- Chemical transfer and processing systems
- Paints, coatings, and finishing operations
- Industrial automation and fluid control setups
- Manufacturing environments requiring consistent flow
- Precision fluid handling applications
Installation & Usage Tips
- Ensure compatibility with QUANTM system specifications before installation
- Mount securely in a vibration-free environment for optimal performance
- Inspect diaphragms and seals periodically to maintain efficiency
- Use compatible fluids to prevent material degradation
- Follow manufacturer electrical and operational guidelines
Frequently Asked Questions
The electric drive system eliminates compressed air usage, significantly reducing energy consumption and improving overall system efficiency.
It is ideal for industries such as chemical processing, coatings, manufacturing, and any application requiring precise and efficient fluid transfer.
The stainless steel construction allows it to handle a wide range of fluids, including corrosive chemicals and industrial coatings.
No, its efficient design reduces wear, resulting in longer service intervals and lower maintenance requirements compared to pneumatic pumps.
