High-Efficiency Electric Diaphragm Pump for Hygienic Fluid Transfer Systems
Compatible Machines & System Integration
- Food & Beverage Processing Systems – supports hygienic transfer of liquids like syrups, oils, and sauces
- Pharmaceutical Production Equipment – compatible with sterile and sensitive fluid handling lines
- Cosmetic Manufacturing Machines – used for creams, emulsions, and liquid formulations
- Hygienic CIP/SIP Systems – suitable for clean-in-place and sanitation-driven processes
- Industrial Fluid Transfer Skids – direct replacement for pneumatic diaphragm pump setups

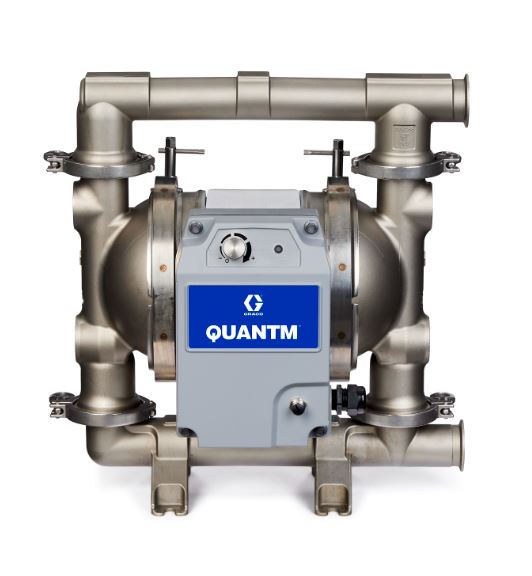

What is Graco QUANTM HE80-0225 Pump?
The Graco QUANTM HE80-0225 is an advanced electric double diaphragm pump designed for hygienic and industrial fluid transfer applications. Built within the QUANTM H80 series, it replaces traditional air-operated systems with a high-efficiency electric drive that reduces energy consumption, noise, and maintenance requirements.
Its configuration QHD-FGFF2SSPTPOPTS130021 includes sanitary-grade materials and connection options engineered for demanding process environments where reliability and cleanliness are critical.
This pump is optimized for continuous-duty operations in industries requiring consistent flow control and contamination-free handling of fluids.
Core Technical Specifications
- Maximum flow rate: up to 80 GPM (303 L/min)
- Operating pressure: up to 100 psi (6.9 bar)
- Fluid section: 316/316L stainless steel construction
- Connection type: 2-inch sanitary tri-clamp fittings
- Electric drive system for energy-efficient operation
Key Features & Benefits
- Eliminates compressed air dependency for lower operating cost
- Stable, pulsation-controlled fluid delivery
- Hygienic design suitable for food-grade and pharma applications
- Seal-less diaphragm structure reduces leakage risk
- Designed for direct retrofit into existing pneumatic systems
Frequently Asked Questions
It uses an electric drive instead of compressed air, reducing energy consumption, noise levels, and maintenance requirements while improving flow control.
Yes, it is designed with 316/316L stainless steel and sanitary tri-clamp fittings, making it suitable for food, beverage, and pharmaceutical use.
Yes, it is engineered as a direct retrofit solution for many pneumatic diaphragm pump installations with minimal system modification.
It is widely used in food processing, beverage production, pharmaceuticals, cosmetics, and hygienic chemical transfer systems.
