Home Graco Parts Graco Magnum X5 Parts
Authorized Graco Dealer Since 2010

Genuine Graco
Magnum X5
Parts &
Accessories

Keep your paint sprayer running like new with 100% OEM replacement parts, fast shipping, expert support, and unbeatable prices. Every part ships factory-sealed from Houston, TX.

★★★★★ 5.0 out of 5  (200+ reviews)
Genuine OEM Parts
Same-Day Shipping
Best Price Guarantee
Expert Tech Support

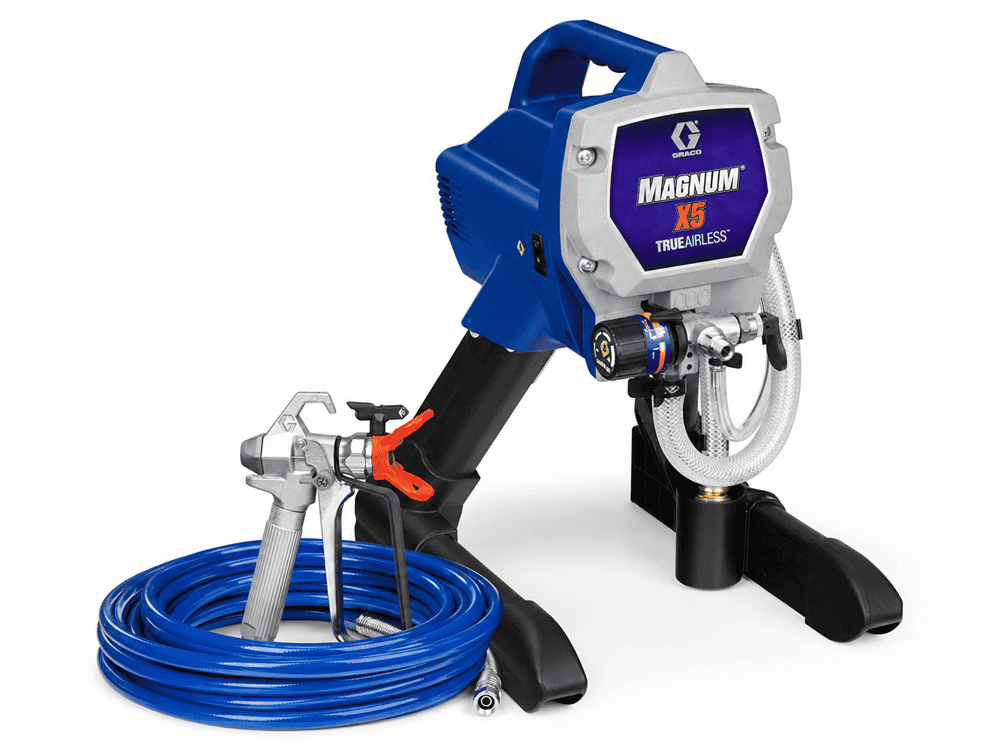

Graco Magnum X5 Airless Paint Sprayer Model 262800
Parts from
$5.20
OEM Graco replacement parts
Same-Day Shipping

Graco Magnum X5 Specifications

Model 262800 — know your machine before ordering parts

3000
Max PSI
0.27 GPM
Flow Rate
125 Gal
Annual Use
120V
Power

Essential Graco Magnum X5 Parts

Shop genuine OEM replacement parts for your Graco Magnum X5 paint sprayer. All parts are Genuine Graco OEM and come with Graco's quality guarantee.

Check Your Series Letter Before Ordering

The Magnum X5 (262800) was produced across Series A, B, C, D & E. Your series letter is on the silver serial tag on the machine body after the model number — e.g. 262800E = Series E. Not sure? Call 713-931-4102 — we'll confirm your part in under 2 minutes.

Graco Magnum X5 vs X7 Comparison

Need help deciding? Use this guide to identify which machine — and which parts — you need.

Feature Magnum X5 (This Model) Magnum X7
Best For Homeowners & DIY · Light Pros Semi-Pro · Exteriors · Heavier Use
Max PSI 3,000 3,000
Flow Rate 0.27 GPM 0.31 GPM
Annual Gallons 125 gallons/year 125 gallons/year
Max Tip Size .015" orifice .017" orifice
Configuration Fixed stand — 13 lbs Wheeled cart — 19 lbs
Warranty 1 Year 1 Year
Parts Compatibility Most parts are interchangeable between X5 & X7
Need help deciding? The X5 is perfect for occasional home projects — interiors, fences, smaller walls. If you paint more frequently or professionally, consider the X7 for increased durability and tip flexibility →

Why Buy Graco Parts From Us?

Authorized Graco dealer since 2010

100% Genuine OEM Parts

All parts come directly from Graco with full manufacturer warranty. We never sell aftermarket substitutes or knock-off components that void your warranty.

Largest Selection In Stock

Genuine Graco parts in our warehouse ready to ship. Same-day shipping on qualifying orders placed before 1pm CST, Monday–Friday.

Expert Technical Support

Our team has years of hands-on Graco experience. We'll help you identify the right parts and troubleshoot any issues you encounter.

Competitive Pricing

Best prices on genuine Graco parts. We offer volume discounts for contractors and professional painters who buy in bulk.

Hassle-Free Returns

30-day return policy on all parts in new, unused condition. Order the wrong component? No problem. Returns are simple and fast.

Free Parts Diagrams

Access detailed exploded-view diagrams for 50+ Graco models. Find exact part numbers before ordering with our visual reference guides.

Frequently Asked Questions

Common questions about Graco Magnum X5 parts and ordering

What parts do I need for Graco Magnum X5 maintenance?
For regular maintenance you'll need Pump Armor (17S980) after every use, RAC X 515 spray tips on replacement schedule, and gun handle filters changed every bucket. At service intervals, the 17V781 pump repair kit addresses all valve wear. The 17J876 inlet housing kit resolves most won't-prime failures after storage. Run the 15-second motor cycling test at the start of every job to catch pump wear early.
Are these genuine Graco parts or aftermarket alternatives?
All parts in our store are 100% Genuine Graco OEM (Original Equipment Manufacturer) parts. We are an authorized Graco dealer since 2010. We never sell aftermarket substitutes or knock-off components. Our parts arrive through Graco's official authorized distribution chain — factory-sealed directly from Graco's warehouse to our facility in Houston, TX.
What's the difference between X5 and X7 parts?
The main difference is the motor and tip ceiling — the X7 has a ⅝ HP motor (vs ½ HP on X5) and handles a .017" max tip (vs .015" on X5). However, most replacement parts are shared: the 17V781 pump repair kit, 17J876 inlet valve, 17J880 outlet valve, 247339 hose, and gun filters all fit both machines. Always confirm your model number and series letter before ordering.
How long does shipping take?
We ship same business day on qualifying orders placed before 1pm CST Monday–Friday from our Houston, TX facility. Standard shipping typically delivers within 2–5 business days. Expedited 1–2 day shipping is available at checkout. We cannot guarantee specific delivery dates, but same-day dispatch ensures the fastest possible arrival.
Do you offer technical support?
Yes. Call us at 713-931-4102 Monday–Friday 8am–4pm CST. Our team will help identify the correct part for your specific machine and series letter, troubleshoot symptoms, and confirm compatibility — typically in under two minutes. We've been supporting Graco customers as an authorized dealer since 2010.
What's your return policy?
We accept returns on all parts in new, unused, and unopened condition within 30 days of purchase. If you ordered the wrong part, contact us and we'll help identify the correct one at no additional charge. Parts that have been installed cannot be returned. Genuine OEM Graco parts are covered by Graco's manufacturer warranty against defects — we can assist with warranty claims on your behalf.

Ready to Get Your X5 Running Like New?

Shop genuine Graco X5 parts with same-day shipping before 1pm CST from Houston, TX

Shop Graco X5 Parts Now
Questions? Call 713-931-4102 Mon–Fri 8am–4pm CST  ·  [email protected]
