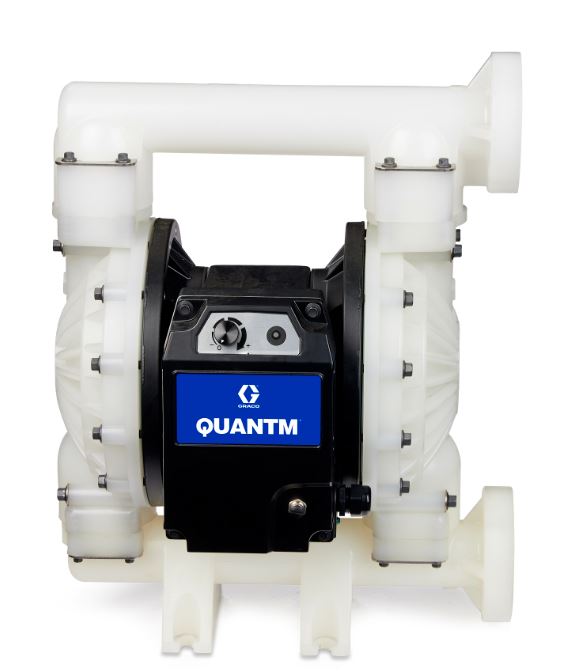

The Graco TE120-0035 QUANTM Pump is a high-efficiency electric-operated double diaphragm pump engineered for demanding industrial fluid handling applications. Designed with advanced electric drive technology, this pump delivers reliable flow performance, reduced energy consumption, and quieter operation compared to traditional air-operated diaphragm pumps.
Compatible Machines & Systems
- Chemical processing systems
- Paint and coating circulation equipment
- Industrial fluid transfer systems
- Wastewater treatment machinery
- Drum unloading stations
- Chemical batching and dosing skids
- Mixing and blending equipment
- Clean-in-place (CIP) systems
- Solvent transfer systems
- Mining and sump evacuation setups
- Existing 2-inch pneumatic diaphragm pump installations
- Husky-style diaphragm pump systems
- Wilden diaphragm pump replacement applications
- Yamada diaphragm pump conversion systems
- Sandpiper 2-inch pump replacement setups
Key Features
| Pump Type | Electric-Operated Double Diaphragm (EODD) Pump |
| Series | QUANTM i120 |
| Port Size | 2-Inch Flanged Connections |
| Power Supply | 200–240V AC, 3-Phase |
| Flow Capacity | Up to 120 GPM (Approx.) |
| Fluid Section Material | Polypropylene |
| Seat Material | 316 Stainless Steel |
| Ball Material | PTFE |
| Diaphragm Material | PTFE / Santoprene |
Performance Advantages
- Energy-efficient electric drive helps reduce operating costs
- Quiet operation compared to traditional air-operated pumps
- Seal-less design minimizes maintenance requirements
- Handles corrosive and shear-sensitive fluids with ease
- Self-priming capability for reliable fluid transfer
- Can safely stall under pressure without damaging the pump
- Suitable for continuous-duty industrial applications
Typical Applications
The Graco TE120-0035 QUANTM Pump is commonly used for transferring chemicals, solvents, wastewater, detergents, paints, coatings, and other industrial fluids. Its corrosion-resistant construction and efficient electric drive system make it an excellent solution for facilities seeking reliable performance with lower energy usage.
Frequently Asked Questions
The pump is designed for industrial fluid transfer applications including chemicals, coatings, solvents, wastewater, and other demanding processing operations.
Yes, the Graco TE120-0035 QUANTM Pump is commonly used as a replacement for traditional 2-inch pneumatic diaphragm pumps from brands such as Husky, Wilden, Yamada, and Sandpiper.
The QUANTM electric drive system offers improved energy efficiency, quieter operation, reduced maintenance, and reliable performance for continuous industrial use.
This pump is suitable for handling chemicals, paints, coatings, detergents, solvents, wastewater, and other compatible industrial fluids.
