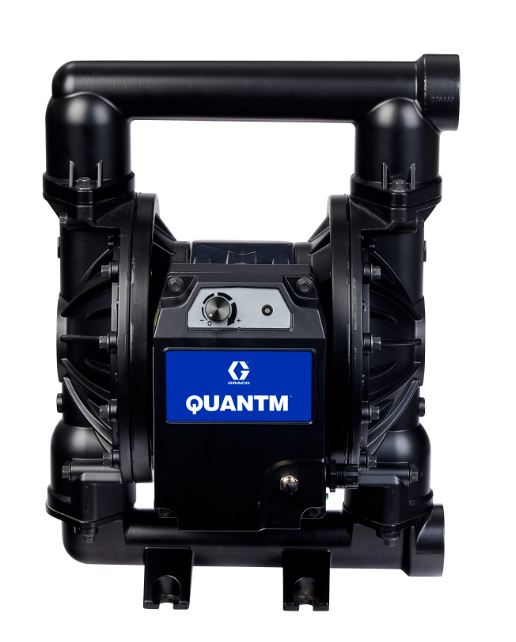

The Graco TE120-0071 QUANTM Pump, model QTE-ALFC2BNBNBN-A200, is a high-efficiency electric double diaphragm pump engineered for demanding industrial fluid handling applications. Built with an aluminium fluid section and Buna-N elastomers, this pump delivers reliable performance, reduced energy consumption, and lower operating costs compared to traditional air-operated diaphragm pumps.
Compatible Machines & Systems
The Graco QUANTM i120 Pump is commonly installed in industrial processing and fluid transfer systems. It is designed to replace many standard 2-inch air-operated diaphragm pumps while improving efficiency and reducing compressed air usage.
- Chemical transfer systems
- Paint and coating circulation machines
- Ink transfer and printing systems
- Industrial fluid processing skids
- Wastewater treatment equipment
- Drum unloading and transfer systems
- Industrial mixing systems
- Manufacturing production lines
- General fluid handling machinery
- Bulk liquid transfer equipment
- Food and beverage transfer systems (material compatibility dependent)
- Existing 2-inch AODD pump installations
Product Specifications
| Product Type | Electric Double Diaphragm Pump (EODD) |
| Model Number | QTE-ALFC2BNBNBN-A200 |
| Pump Series | Graco QUANTM i120 |
| Fluid Section Material | Aluminium |
| Elastomer Material | Buna-N |
| Power Configuration | 200–240 VAC |
| Maximum Flow Rate | Approx. 120 GPM (454 LPM) |
| Maximum Working Pressure | 60 PSI (4.14 bar) |
| Maximum Solids Size | 6.4 mm |
| Motor Type | FluxCore Electric Drive |
Key Features
- Energy-efficient electric diaphragm pump technology
- Reduced operating costs compared to pneumatic pumps
- Durable aluminium construction for industrial environments
- Reliable fluid handling performance with low pulsation
- Suitable for continuous-duty industrial applications
- Compatible with a wide range of industrial fluids
- Lower maintenance requirements than traditional AODD systems
Frequently Asked Questions
The Graco TE120-0071 QUANTM Pump is used for industrial fluid transfer applications such as chemical processing, paint circulation, wastewater handling, ink transfer, and manufacturing fluid systems.
Yes, the Graco QUANTM i120 Pump is designed as a high-efficiency replacement for many traditional 2-inch air-operated diaphragm pumps.
This model features an aluminium fluid section with Buna-N elastomers for reliable performance in industrial fluid transfer applications.
Common industries include chemical processing, manufacturing, coatings, wastewater treatment, printing, industrial processing, and bulk liquid transfer operations.
