Product Image

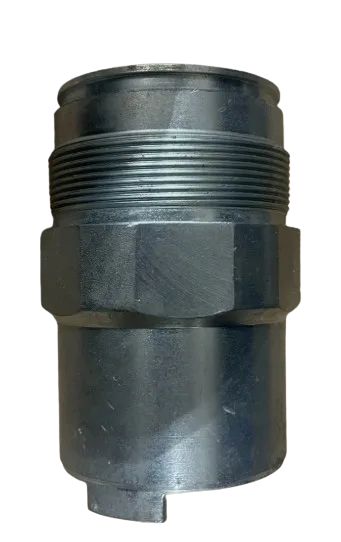

Graco 217476 Foot Valve

The Graco 217476 Foot Valve is a genuine OEM intake valve designed for heavy-duty industrial sprayers. It ensures smooth suction flow and prevents backflow for consistent pump performance.

  • OEM Part #217476 – genuine Graco replacement valve.
  • Fits Graco GH 533 and Bulldog 30:1 units.
  • Features a carbide ball seat for long wear life.
  • Improves priming and maintains inlet seal integrity.

List Price: $1135
You save: $181.6 (16.00%)
Sale Price: $953.4
0
Based on 0 reviews
5 ★
0%
4 ★
0%
3 ★
0%
2 ★
0%
1 ★
0%

Overview & Key Details

Compatible Machines

This genuine valve fits the following Graco industrial units:

  • Graco GH 533
  • Graco Bulldog 30:1

What is the Graco 217476 Foot Valve?

The Graco 217476 Foot Valve (also referred to as a Foot Intake Valve) is the inlet check assembly located at the “foot” of the pump. It ensures one-way flow into the pump during operation and helps prevent backflow when the pump is idle.

Key Highlights

  • OEM Part #217476 – direct-fit, genuine Graco component.
  • Designed for heavy-duty service on compatible industrial units.
  • Carbide ball seat with a durable housing for long service life.
  • Restores proper inlet sealing to improve priming and maintain consistent pressure.

Quick Specs

Manufacturer / Brand Graco
OEM Part Number 217476
Type Foot / Intake Check Valve (pump inlet)
Seat Carbide ball seat
Intended Use Industrial / high-duty Graco units listed above

Note: Always verify against your unit’s parts list or manual before ordering.

When to Replace

  • Hard-to-prime pump or frequent loss of prime
  • Noticeable backflow or pressure drop at the inlet
  • Visible wear or damage to the check/seat components

Frequently Asked Questions

The models listed in Compatible Machines are the confirmed fits. If your unit shares the same inlet assembly, it may be compatible—but always check your machine’s parts manual or contact us with your model and serial for confirmation before purchase.

This assembly uses a durable housing and a carbide ball seat for improved wear resistance in demanding applications.

Depressurize and isolate the unit, clean the inlet cavity thoroughly, inspect mating surfaces and seals, then install and torque per the service manual. After installation, prime the system and check for leaks and stable pressure.

Match the OEM number (217476) with your unit’s parts list. If uncertain, share your model (e.g., GH 533) and we’ll cross-check the parts breakdown for you.
