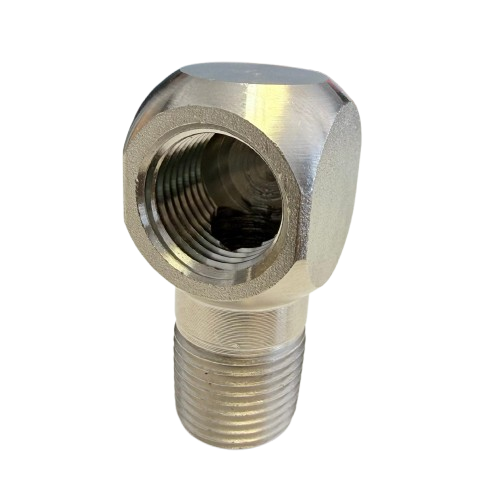

Graco 196179 Street Elbow Fitting

The Graco 196179 Fitting Elbow Street provides a durable 90-degree connection. OEM-quality construction ensures reliable fluid and air line operation.

90-degree elbow fitting for fluid lines
Durable metal for long-lasting performance
OEM-quality direct replacement
Fits multiple Graco sprayer systems

$22.57

Based on 0 reviews

Description

Compatible Machines

Fits Graco Magnum XR5 and XR7 sprayers
Used in fluid and air line assemblies
Compatible with XR9 and similar pump units
Applicable for multiple Graco spray systems

Product Overview

The Graco 196179 Fitting Elbow Street provides a secure 90-degree fluid or air connection. Its durable metal construction ensures leak-free performance. Designed for OEM reliability, it supports consistent operation in Graco sprayer assemblies.

Specifications

Part Number	196179
Component Type	Elbow Fitting
Material	Durable metal alloy
Compatibility	Graco XR5, XR7, XR9 fluid/air lines
Function	Provides secure 90-degree line connection
Replacement Type	OEM direct replacement

Key Features

90-degree elbow fitting for fluid lines
Durable metal construction ensures long life
OEM-quality for reliable operation
Fits multiple Graco sprayer assemblies
Easy installation with threaded connections

Installation

Thread the Graco 196179 Fitting Elbow Street into the appropriate port. Tighten securely using a wrench and check for proper alignment. Confirm leak-free operation before starting the sprayer.
