Graco 220853 Brush Repair Kit – Compatible Machines & Product Overview
Compatible Machines
- Graco Model 232160
- Graco Model 232161
- Graco Model 232162
- Graco Model 232163
- Graco Model 232166
- Graco Model 232171
- Graco Ultra & Ultra Max Series (selected models as per parts manual)

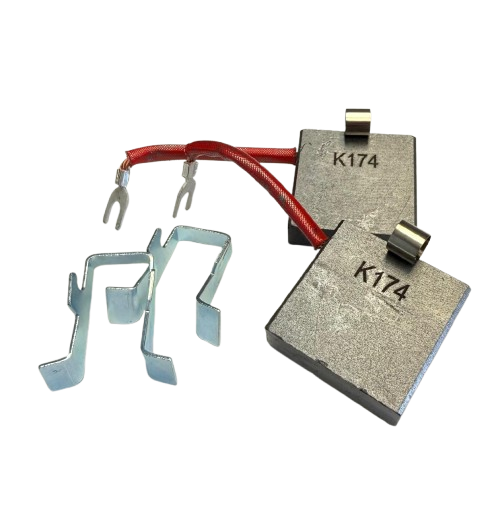

The Graco 220853 Brush Repair Kit is a genuine motor service kit designed to restore proper electrical contact inside compatible Graco electric airless paint sprayers. This kit replaces the discontinued part 108750 and is used when motor carbon brushes are worn, causing reduced performance or motor failure.
Product Function
The motor brushes are responsible for transferring electrical current to the rotating armature of the motor. Over time, these brushes naturally wear down. Replacing them with the correct repair kit helps:
- Restore smooth motor operation
- Prevent power loss and intermittent motor cut-off
- Extend overall motor service life
- Reduce the risk of motor damage

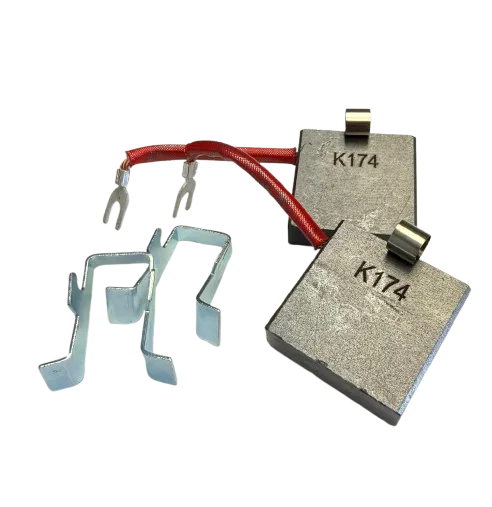

What’s Included in the Kit
| Component | Purpose |
| Carbon Brushes | Main electrical contact for motor commutator |
| Brush Springs | Maintain correct pressure on brushes |
| Brush Holders | Secure brushes in proper alignment |
Replacement Notes
- Always replace both motor brushes at the same time.
- Machine power must be fully disconnected before installation.
- Excessive sparking or weak motor output are common signs that brush replacement is needed.
- If the motor commutator is heavily damaged, brush replacement alone may not solve the issue.
Frequently Asked Questions
This kit replaces worn motor carbon brushes, allowing proper electrical transfer to the motor and restoring normal sprayer performance.
Yes, the 220853 kit officially replaces part number 108750 and serves the same function.
Common symptoms include reduced motor speed, intermittent operation, burning smell from the motor area, or failure to start.
Installation can be done by a trained technician or experienced user. Always disconnect power and follow the Graco service manual for your specific model.
