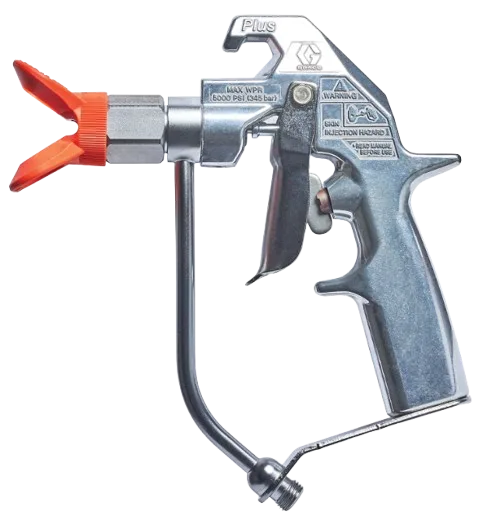

Graco 235462 Silver Plus Airless Spray Gun

The Graco 235462 Silver Plus Airless Spray Gun is a lightweight, pro-grade gun for fine-finish work—rated to 5,000 psi with a standard 1/4" NPSM inlet.

Includes: Fine-Finish flat tip guard
Trigger: 2-finger for precise control
Max Pressure: 5,000 psi (345 bar)
Inlet: 1/4" NPSM (male)
Fits: Ultra/Ultra Max II (390–1595), Mark IV–VII, GMAX II 3900/5900/7900 (≤ 5,000 psi)

Retail Price: $528

You save: $203.28 (38.50%)

Our Price: $324.72

Based on 0 reviews

5 ★

4 ★

3 ★

2 ★

1 ★

Description

Silver Plus 235462 — Overview & Fit Guide

Compatible Machines

The Graco 235462 Silver Plus Airless Spray Gun fits airless sprayers that operate at or below 5,000 psi (345 bar) and use a 1/4" NPSM hose connection. Common compatible Graco families include:

Ultra / Ultra Max II series: 390, 395, 495, 595, 695, 795, 1095, 1595
Ultimate series equivalents (contractor-grade units up to 5,000 psi)
Mark texture & paint rigs: Mark IV, Mark V, Mark VII (when configured with 5,000-psi gun/hoses)
GMAX II contractor sprayers: 3900, 5900, 7900 (≤ 5,000 psi configurations)

Note: For rigs above 5,000 psi or heavy-duty plaster applications, select the Silver Plus HD (higher pressure rating).

What is the Graco 235462 Silver Plus Airless Spray Gun?

The Graco 235462 Silver Plus is a professional, lightweight airless spray gun engineered for precision control and all-day comfort. This 235462 configuration is the Fine-Finish package, supplied with a Fine-Finish flat tip guard for smooth atomization on trim, doors, cabinetry, and high-quality wall finishes. With a 5,000 psi maximum working pressure and a 2-finger trigger, it delivers responsive control while maintaining durability in contractor environments. A standard 1/4" NPSM (male) inlet makes it drop-in compatible with most Graco contractor hoses and swivels.

Key Benefits

Fine-finish control with the supplied flat tip guard
5,000 psi rating for a wide range of coatings
2-finger trigger for reduced hand fatigue and precise metering
1/4" NPSM inlet for broad sprayer compatibility
Rugged, lightweight aluminum body for daily jobsite use

Specifications

Model / Part	Graco 235462 — Silver Plus Airless Spray Gun (Fine-Finish package)
Maximum Working Pressure	5,000 psi (345 bar)
Trigger	2-finger
Fluid Inlet	1/4" NPSM (male)
Included Guard	Fine-Finish flat tip guard (235462 configuration)
Gun Type	Airless spray gun
Body	Lightweight aluminum construction

Quick Fit Check

Your sprayer’s max pressure is ≤ 5,000 psi
Your hose/gun swivel uses 1/4" NPSM

Frequently Asked Questions

Check two things: your system’s maximum pressure is ≤ 5,000 psi, and your hose/gun connection is 1/4" NPSM. If both match, the 235462 Silver Plus will fit.

The 235462 package is the Fine-Finish variant and ships with a Fine-Finish flat tip guard pre-installed on the Silver Plus gun.

The standard Silver Plus (this model) is rated to 5,000 psi, ideal for most paint and fine-finish work. The Silver Plus HD is a higher-pressure version for applications that exceed 5,000 psi or involve very heavy materials.

Suitable for common architectural paints and fine-finish coatings. Always follow coating manufacturer recommendations for tip size, filter, and pressure settings.

If your hose end is 1/4" NPSM (the common Graco standard), no adapter is required. For other thread types, use the appropriate swivel/adapter to convert to 1/4" NPSM.
