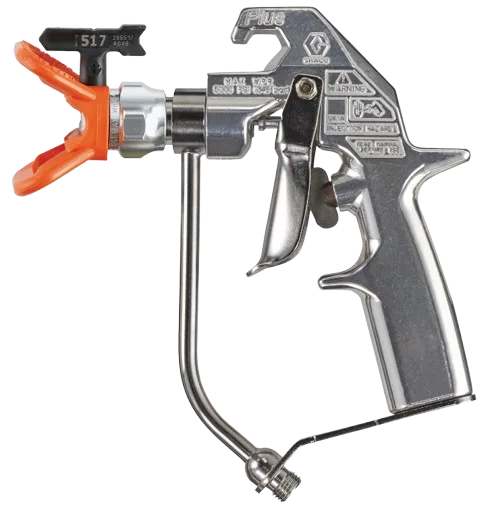

Graco 243283 Silver Plus Airless Spray Gun

The Graco 243283 Silver Plus Airless Spray Gun is a durable, high-pressure gun for professional coatings—ready to connect to most Graco rigs.

Max Pressure: 5000 psi
Included: RAC 5 517 tip & HandTite guard
Trigger: 2-finger, ergonomic control
Inlet: standard 1/4" gun/hose connection
Build: stainless-steel fluid tube for long life
Fits: GH 230, GH 300, GH 833, IronMan 500G, and other Graco sprayers rated to 5000 psi

Retail Price: $528

You save: $203.28 (38.50%)

Our Price: $324.72

Based on 0 reviews

Description

Professional Use & Compatibility Overview

Compatible Machines

The Graco 243283 Silver Plus Airless Spray Gun connects to high-pressure Graco rigs using a standard 1/4" gun/hose thread and is rated up to 5000 psi.

GH 230 (high-pressure hydraulic sprayer)
GH 300
GH 833
IronMan 500G
Any Graco airless sprayer with 1/4" gun/hose connection rated to 5000 psi

What is the Graco 243283 Silver Plus Airless Spray Gun?

The Graco 243283 Silver Plus is a heavy-duty, two-finger-trigger airless spray gun built for high-pressure, high-duty applications. It typically ships with a RAC 5 517 SwitchTip and HandTite tip guard, and features a stainless-steel fluid tube for durability and consistent finish quality.

Key Features & Benefits

Up to 5000 psi working pressure for demanding coatings.
Two-finger trigger for comfortable, controlled spraying.
Stainless-steel fluid path for long service life.
Includes RAC 5 517 tip & HandTite guard for fast tip changes.
Standard 1/4" NPSM/NPT inlet to pair with most Graco hoses.

Technical Specifications

Part Number	243283
Model	Silver Plus Airless Spray Gun
Max Working Pressure	5000 psi (345 bar)
Included Tip / Guard	RAC 5 517 SwitchTip with HandTite guard
Trigger	2-finger trigger
Fluid Path	Stainless-steel tube
Inlet Connection	1/4" NPSM/NPT (standard Graco gun/hose thread)
Typical Applications	High-build coatings, primers, elastomerics, industrial/commercial painting

In the Box

Graco 243283 Silver Plus spray gun
RAC 5 517 SwitchTip
HandTite tip guard
Operator information (as supplied)

Frequently Asked Questions

If your Graco airless sprayer uses a 1/4" gun/hose connection and is rated up to 5000 psi (e.g., GH 230, GH 300, GH 833, IronMan 500G), the 243283 will fit and perform correctly.

The gun typically includes a RAC 5 517 SwitchTip and HandTite tip guard for quick tip changes and reliable sealing.

Yes. With a 5000 psi rating and durable construction, it’s well-suited for heavy-build coatings, primers, elastomerics, and industrial jobs when paired with an appropriate sprayer.

The inlet is a standard 1/4" NPSM/NPT connection used on most Graco high-pressure hoses and sprayers.
