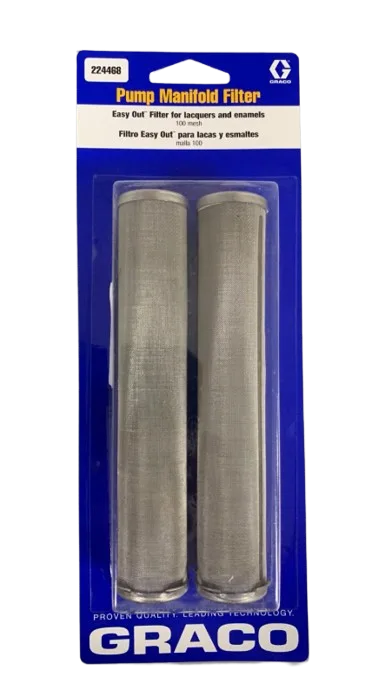

Graco 224468 100 Mesh Filter

The Graco 224468 100 Mesh Filter is a stainless-steel long manifold filter designed to trap fine debris and protect your sprayer for smooth, clog-free operation.

Part No: 224468 (replaces 167026)
Mesh Size: 100 Mesh – ideal for enamels, lacquers, and solvent-based paints
Length: Long style (~5-5/8″)
Material: Stainless Steel
Use: Fits multiple Graco Airless Sprayers (older models)

$42.9

Based on 0 reviews

Description

Graco 224468 100 Mesh Manifold Filter — Long (Older-Style Units)

Compatible Machines

This Graco 224468 100 Mesh Filter (supersedes 167026) is the long manifold/outlet screen used on many older Graco airless sprayers. Verified models include:

Graco EH 333
Graco EH 433
Graco EM 390
Graco EM 490
Graco EM 590
Ultra Max 695 (1999)
Ultra Max 695 (2000)
Ultra Plus 1000
Ultra Plus 1500

Overview

The Graco 224468 100 Mesh Filter is a stainless-steel manifold (outlet) screen that provides final filtration before fluid enters the hose and gun—reducing clogs, protecting the hose/gun, and improving finish quality. It is commonly chosen for thinner coatings such as lacquers and enamels.

Key Specifications

Graco Part	224468 (replaces 167026)
Mesh Rating	100 mesh (fine filtration for thinner coatings)
Style / Length	Long outlet/manifold filter (older-style units), ~6 in
Material	Stainless steel screen
Typical Tip Range	.013" – .015" (guideline for many enamel/lacquer applications)
Typical Use	Lacquers, enamels, and other solvent-based paints

When to Use 100 Mesh

Best for thinner materials (e.g., stains, clear coats, lacquers, enamels).
If you’re spraying thicker materials or very large tips, consider a coarser mesh (e.g., 60 mesh) to reduce restriction.

Maintenance Tips

Inspect and clean/replace the manifold filter regularly to maintain spray quality.
Flush thoroughly after each use, especially with solvent-based coatings.
Replace a dented, torn, or heavily stained screen—don’t continue spraying with a compromised filter.

Frequently Asked Questions

Yes. 224468 supersedes 167026 and is the same long 100-mesh manifold/outlet filter used on many older Graco sprayers.

Use 100 mesh for thinner materials like stains, clear coats, lacquers, and enamels. It provides fine filtration to help prevent gun clogs and improve finish quality.

No. This part is the long screen for older-style manifolds. If your sprayer uses a short screen, you’ll need the short version specified in your model’s parts list.

A common guideline for 100-mesh work is .013"–.015" tips (depending on material and technique). Always test and adjust for your coating and project.

Check your sprayer’s manual or parts breakdown for the manifold filter part number. If it lists 167026 or 224468, this is the correct long 100-mesh screen.
