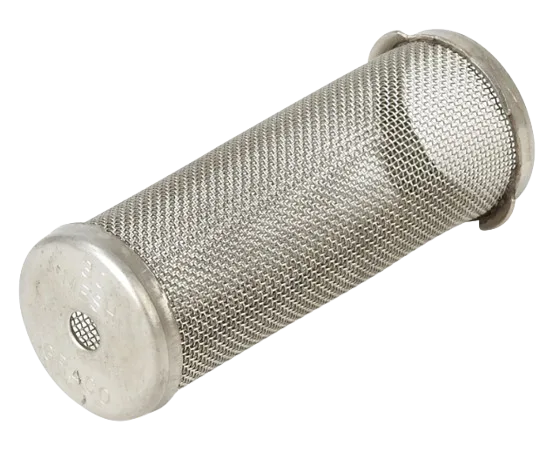

Graco 236495 Short Manifold Filter 30 Mesh (2PK)

The Graco 236495 Short Manifold Filter 30 Mesh (2PK) ensures smooth spraying performance by trapping debris before it reaches your gun. Ideal for heavy coatings like latex or elastomeric materials.

OEM 30-mesh short filters – fits ST, STX, 390, Ultra 395, 495, 595
2-Pack genuine Graco Easy-Out filters
Improves spray quality and extends pump life
Quick to clean and replace for daily maintenance

$82.25

Based on 0 reviews

Description

Compatible Machines

Graco ST Series airless sprayers
Graco STX Series airless sprayers
Graco 390 (all trims)
Graco Ultra 395 (Standard / ProContractor / IronMan)
Graco Ultra 495 (Standard / ProContractor / IronMan)
Graco Ultra 595 (Standard / ProContractor / IronMan)

Graco 236495 Short Manifold Filter 30 Mesh (2PK)

The Graco 236495 is a short Easy-Out manifold filter in 30-mesh (2-pack). Use 30-mesh when spraying heavy latex, block filler, or elastomeric coatings to protect the pump and maintain smooth flow.

Key Benefits

Optimizes spray performance by catching debris before it reaches the gun.
Extends equipment life and reduces downtime.
Easy-Out design for quick pull-and-rinse maintenance.
OEM quality fit for listed ST / STX / 390 / Ultra 395 / 495 / 595 sprayers.

What’s in the Box

2 × 30-mesh short manifold filters (OEM Graco 236495)

When to Choose 30-Mesh

Select 30-mesh for thicker materials (elastomerics, block fillers, heavy latex). For medium/fine coatings, consider 60/100-mesh variants as appropriate to the material and tip size.

Installation & Care

Depressurize sprayer and engage the trigger lock.
Unscrew manifold cap, pull the short filter straight out, and inspect.
Rinse with clean solvent/water (per coating), brush gently from the inside out.
Reinsert filter (open end first), seat fully, and tighten cap snugly.

Frequently Asked Questions

Short filters are used on pro models like ST/STX/390/Ultra 395/495/595. Some other sprayers (including many DIY/Magnum models) use a long manifold filter—check your manual or the manifold length before ordering.

Use 30-mesh for thicker coatings (heavy latex, block filler, elastomeric). 60-mesh suits medium-bodied paints/primers, while 100-mesh is for fine finishes and thinner materials. Always align mesh choice with material viscosity and tip size.

Inspect and rinse daily (or between color changes). Replace when the mesh is damaged, crushed, or won’t clean back to full flow. Frequent clogging is a sign you may need a coarser mesh or better straining of material.

236495 is the 2-pack of 30-mesh short filters. The single OEM 30-mesh short filter is commonly referenced as 167052; multi-packs include 238443 (3-pk) and 238444 (25-pk).

Best for heavy latex, block filler, and elastomeric coatings. For lighter materials, step up to a finer mesh to avoid pattern pulsation and tip spitting.
