Graco 287003 Pressure Return Hose Coupled

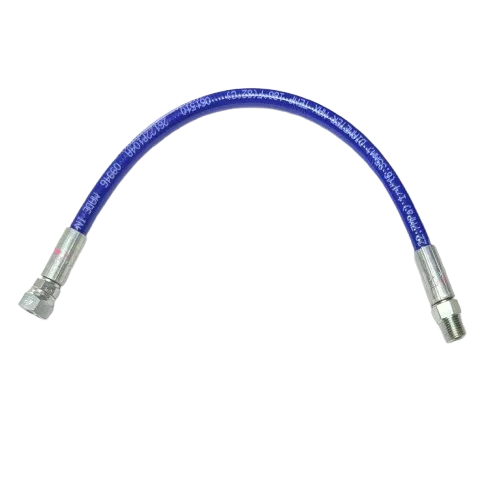

Graco 287003 Pressure Return Hose Coupled is a durable OEM replacement hose designed for reliable fluid return in Graco sprayers. It’s pre-assembled and ready to install, ensuring leak-free performance.

OEM Part: Graco 287003
Size: 1/4" NPSF (F) × 1/4" NPT (M)
Length: Approx. 16 inches
Pressure Rating: 3,300 PSI
Fits: Ultra 395 / 495 / 595, Ultra Max II 490-595, Proformance Max Series

Retail Price: $32.5

You save: $0.65 (2.00%)

Our Price: $31.85

Based on 0 reviews

Description

Product Overview & Key Benefits

Graco 287003 Pressure Return Hose (Coupled) is the pre-assembled return line that connects the pump fluid section to the sprayer’s filter/manifold. It features factory-crimped ends for a reliable seal and quick swap-out during maintenance.

Compatible Machines

Graco Ultra 395 (various Lo-Boy/Hi-Boy models)
Graco Ultra 495 (various Lo-Boy/Hi-Boy models)
Graco Ultra 595 (various Lo-Boy/Hi-Boy models)
Graco Ultra Max II 490 (Standard / Pro / ProContractor)
Graco Ultra Max II 495 (Standard / Pro / ProContractor)
Graco Ultra Max II 595 (Standard / Pro / ProContractor)
Graco Proformance Max 395 / 495 / 595 series

Specifications

OEM Part	Graco 287003 (Coupled Pressure Return Hose)
Hose Length	Approx. 16 in (≈ 406 mm)
Thread Ends	1/4" NPSF (female) × 1/4" NPT (male)
Rated Pressure	3,300 PSI (return/pressure-return service)
Function	Returns pressurized fluid from the pump to the filter/manifold within the sprayer
Assembly	Factory-crimped (coupled) ends for leak-resistant installation

Why Choose This Hose

Direct OEM fit on popular Ultra / Ultra Max II / Proformance Max models
Coupled, ready-to-install—no field crimping required
Durable construction for high-duty paint applications
Maintains system reliability by ensuring proper return flow to the filter/manifold

Fitment Tip: Match your sprayer series and model (e.g., Ultra 495 Hi-Boy) and verify the 1/4" NPSF × 1/4" NPT ends and ~16" length against your existing hose routing.

Frequently Asked Questions

Yes - this pressure return hose is commonly used on Ultra Max II 490, 495, and 595 models (Standard, Pro, and ProContractor variants), as well as Ultra 395/495/595 and Proformance Max 395/495/595 series.

The return hose routes fluid back to the sprayer’s filter/manifold inside the machine. The spray hose carries fluid from the pump/manifold out to the gun. They have different duties and lengths—do not interchange them.

The 1/4" NPT male end typically requires thread sealant or PTFE tape. The 1/4" NPSF female end seals at the seat; avoid over-tightening. Always follow Graco best practices for leak-free connections.

Measure your existing hose center-to-center and verify the routing space. Confirm end types (1/4" NPSF × 1/4" NPT) against your manifold and pump ports. If your machine is listed above, 287003 is the typical OEM replacement.
