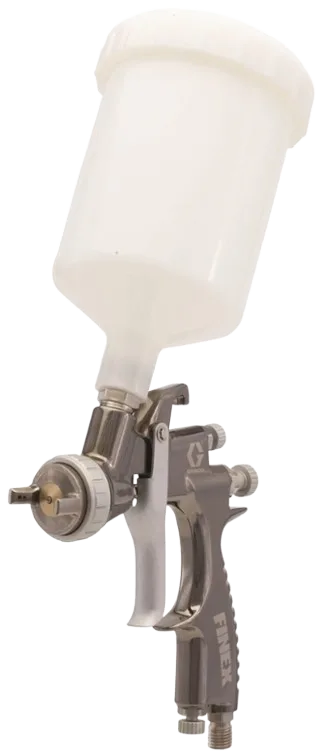

Graco 289243 Finex Air Spray Gravity Feed Gun

Graco 289243 Finex Air Spray Gravity Feed Gun is a lightweight, professional-grade spray gun designed for fine finishing and smooth atomization. Ideal for both industrial and workshop use.

1.3 mm nozzle for precision finishing
Gravity-feed design for quick color changes
Compatible with 1/4" air and 3/8" fluid connections
Sprays waterborne, solventborne, epoxy, urethane coatings
Includes plastic cup and tool kit

Based on 0 reviews

Description

Overview & Key Benefits

Compatible Machines & Systems

Graco 289243 Finex Air Spray Gravity Feed Gun integrates easily with common finishing setups that meet the gun’s air and fluid interface specs.

Compressed air systems with 1/4" NPSM air hose connection (clean, dry air recommended).
Gravity cups (includes plastic cup); also compatible with 3M PPS cup systems and aluminum cups available for Finex guns.
Pressure/remote feed paint supply (when used as a gravity gun with assist) that can adapt to the gun’s 3/8" NPSM fluid inlet.
Typical finishing lines/booths for wood, metal, plastics and general manufacturing where a conventional gravity gun is required.

What It Is

A lightweight, ergonomic conventional gravity-feed air spray gun with a 1.3 mm (0.051 in) needle/nozzle. It’s built for smooth atomization on common coatings and features an easy trigger pull with an integrated air inlet adjustment (cheater) valve for fine control.

Non-bleeder gun with optimized aircaps for high-quality finish.
Standard gravity feed design for quick color changes and easy cleanup.
Handles a wide range of materials: waterborne, solventborne, urethanes, epoxies, latex, high solids and more.
Durable build with wetted parts in aluminum, stainless steel, and engineered plastic.

Specifications

Gun Type	Conventional, gravity-feed, manual, non-bleeder
Needle/Nozzle	1.3 mm (0.051 in)
Air Inlet	1/4" NPSM
Fluid Inlet	3/8" NPSM (female)
Feed Type	Standard gravity feed (plastic cup included)
Compatible Materials	Waterborne, solventborne, epoxies, urethane, latex, high solids, plural-component, sealants
Approx. Weight	~ 1.2 lb (gun)
Wetted Parts	Aluminum, stainless steel, engineered plastic

In the Box

Finex gravity gun (289243) with 1.3 mm setup
Air cap, needle & nozzle assembly
Plastic gravity cup
Basic tool kit

Best-Fit Applications

Wood finishing (cabinets, furniture, doors, trim)
Metal fabrication and general industrial finishing
Automotive/transport refinishing & touch-ups (where conventional spray is acceptable)
Prototyping, shops and jobbing work where quick color change matters

Frequently Asked Questions

No-289243 is a conventional (non-HVLP) gravity-feed model. Graco does offer Finex guns in HVLP variants if your process requires HVLP compliance.

The gun uses a 1/4" NPSM air inlet and a 3/8" NPSM fluid inlet (female). Ensure your hoses/adaptors match these thread types for a proper, leak-free connection.

The 1.3 mm needle/nozzle works well for many topcoats, clears, lacquers, urethanes, waterborne finishes and medium-viscosity coatings. For very thick/high-build materials, consider a larger orifice size.

Yes, a plastic gravity cup is included. The gun is also compatible with 3M™ PPS™ cups and aluminum cup options designed for Finex.
