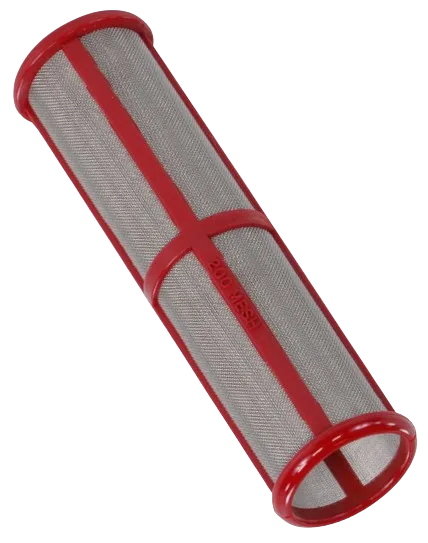

Graco 243226 Short Manifold 200 Mesh (Red) Filter

Graco 243226 Short Manifold 200 Mesh (Red) Filter is a genuine OEM Easy-Out filter designed to protect your sprayer by trapping fine debris before it reaches the hose and spray gun.

  • Mesh Size: 200-mesh (Red) for fine coatings like stains, lacquers, and enamels.
  • Type: Short/Horizontal Easy-Out manifold filter.
  • Purpose: Prevents tip clogs and improves finish quality.
  • Compatibility: Fits many Graco airless sprayers such as 190ES, 210ES, 295ST, 395/495/455 ST PRO, and NOVA models.
  • OEM Quality: Durable construction ensures long-lasting performance.

Retail Price: $30.3
You save: $11.51 (37.99%)
Our Price: $18.79
0
Based on 0 reviews
5
0%
4
0%
3
0%
2
0%
1
0%

Manifold Filter Overview – 200 Mesh, Short (Red)

Compatible Machines

This Graco 243226 Short Manifold 200 Mesh (Red) Filter fits Graco airless sprayers that use the Easy-Out short/horizontal manifold housing. Check your sprayer’s parts manual to confirm the short/horizontal style.

  • Graco 190ES High-Boy (Easy-Out short/horizontal manifold)
  • Graco 210ES High-Boy
  • Graco 295 ST (series variants with short/horizontal manifold)
  • Graco 395 ST PRO (Hi-Boy)
  • Graco 455 ST PRO (Stand / Hi-Boy / Lo-Boy)
  • Graco 495 Duron Pro (Stand / Hi-Boy)
  • Graco 495 ST PRO (Stand / Lo-Boy / Hi-Boy)
  • Graco NOVA (new) – Stand & Hi-Boy configurations with short/horizontal manifold
  • Performance Pro 395 / 495 models that specify the short/horizontal Easy-Out filter

Product Summary

The Graco 243226 Short Manifold 200 Mesh (Red) Filter is an OEM Easy-Out filter element that screens fine debris before paint enters the hose and gun, helping prevent gun/tip clogs and protecting downstream components.

  • 200-mesh (Red): fine filtration for thin to medium-bodied coatings (stains, lacquers, polyurethanes, many enamels).
  • Short/Horizontal format: designed for Easy-Out short/horizontal filter housings.
  • OEM quality: maintains flow while improving finish consistency and tip life.

Key Specifications

Part Number Graco 243226
Filter Style Easy-Out Short / Horizontal manifold filter
Mesh / Color Code 200 Mesh (Red)
Primary Use Fine filtration to reduce clogs and improve finish quality
Compatibility Note Use only on sprayers that specify the short/horizontal Easy-Out filter housing

When to Use 200 Mesh (Red)

  • Thin/medium coatings that show tip spitting with coarser filters
  • Finishing work where surface quality is critical
  • After flushing lines to capture residual fines before spraying

Installation & Care (Quick Guide)

  1. Power off and relieve pressure; engage trigger lock.
  2. Open the manifold cap on the short/horizontal Easy-Out housing.
  3. Remove the old filter; inspect & clean the cavity.
  4. Insert the Graco 243226 with the correct orientation.
  5. Re-install cap snugly; prime and test spray for leaks/flow.

Frequently Asked Questions

Short/horizontal filters (like Graco 243226) sit in a low-profile manifold. If your machine shows a tall vertical cap, it likely uses the long/vertical filter—use the part specified in your manual for that housing style.

Match mesh to material: 200-mesh (Red) for thin/medium coatings; 100-mesh (Blue) or 60-mesh for heavier paints/primers. Using too-fine a mesh on thick coatings can restrict flow and spike pressure.

Flush after each use and remove the filter to rinse from the inside-out. Replace if the mesh is torn, crushed, or won’t clear after cleaning. Keep spare filters on hand to minimize downtime.

Cross-Reference & Notes

  • Color code: Red = 200-mesh (Easy-Out series color coding).
  • Use with the short/horizontal Easy-Out manifold only; other housings require different filters.
  • Always confirm with your sprayer’s parts manual for exact fit and mesh recommendations.
