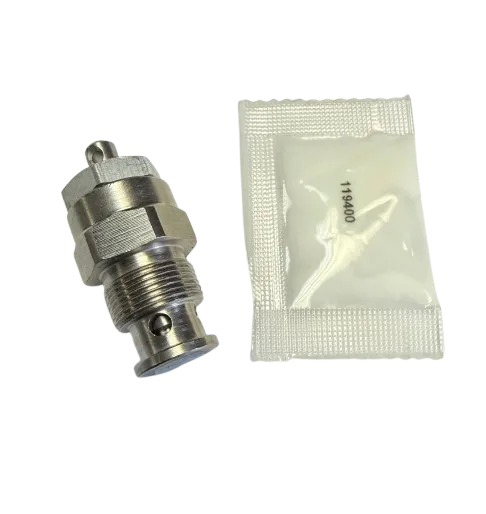

Graco 239914 Drain Valve Kit
5/5
(1 review)
$110.21
$123.00
Save 10%
In Stock
The Graco 239914 Drain Valve Kit replaces worn or leaking prime/drain valves to restore smooth priming and prevent leaks. Designed for reliability and direct OEM fit.
- OEM part number: 239914
- Function: Controls priming and draining of paint sprayers
- Fits: Pro210ES, Ultra 395 PC, Ultra Max II 490/495/595, LineLazer 3400/3900/5900
- Includes: Valve assembly only (reuse handle/base if needed)
- Fixes: Leaks, hard valve movement, poor priming issues
Quantity
Genuine OEM Part
Fast Shipping (Order by 1 PM CST)
Easy Returns
Quick Compatibility & Essentials
Compatible Machines
Use this list to confirm if the Graco 239914 Drain Valve Kit matches your sprayer. Always verify with your model’s parts manual before ordering.
- Pro210ES Electric Airless Sprayer (e.g., 17C305 and related variants)
- Ultra 395 PC Electric Airless Sprayers (select configurations)
- Ultra Max II 490 / 495 / 595 series (various Standard / ProContractor / IronMan configs)
- LineLazer 3400 Airless Line Striper
- LineLazer IV 3900 Airless Line Striper
- LineLazer IV 5900 Airless Line Striper
Overview
The Graco 239914 Drain Valve Kit is the factory replacement drain/prime valve that restores reliable priming and clean system draining. If your existing valve is leaking, clogged, or hard to turn, this kit is the OEM fix designed for long service life and proper sealing.
| Part Number | 239914 (OEM) |
|---|---|
| Function | Prime / drain control valve for paint flow during priming and system flushing |
| Included | Valve assembly (handle/base/pin typically not included; reuse existing hardware if applicable) |
| Typical Symptoms Replaced | Persistent drips at drain port, hard-to-turn valve, poor priming, or paint bypassing to return |
| Compatibility Guidance | Matches select Ultra, Ultra Max II, Pro210ES, and LineLazer models—confirm via your sprayer’s parts manual |
Why Choose the OEM Kit
- Direct-fit OEM quality for reliable sealing and correct flow paths
- Restores priming performance and reduces messy leaks at the drain/return
- Service-friendly: straightforward swap with basic hand tools
- Protects pump by enabling proper flushing after use
Installation & Use Tips
- Relieve pressure fully before service; lock trigger and follow manufacturer safety steps
- Clean threads and mating surfaces; apply thread sealant only if specified in your manual
- Open/close the valve several times after installation to confirm smooth operation and no leaks
- Prime with water/appropriate solvent (per coating) to verify proper flow to return hose
Frequently Asked Questions
It fits many Ultra, Ultra Max II, Pro210ES, and LineLazer units listed above. Because sub-variants differ (Standard, ProContractor, IronMan, Hi-Boy/Lo-Boy, year revisions), confirm via your model’s parts manual or serial-specific parts list before purchase.
The kit typically includes the valve assembly. Handles, bases, pins, or extra hardware are usually not included and should be reused from your sprayer unless otherwise specified in your manual or product listing.
If the old valve is leaking or stuck, replacement often restores priming. However, also check inlet strainers, pump packings, intake valves, and tip/inline filters for clogs or wear, and flush the system thoroughly.
Fully relieve pressure, lock the gun trigger, and disconnect power. Clean threads/mating surfaces; apply sealant only if your manual requires it. After installation, cycle the valve and inspect for leaks during a controlled flush.
Flush after each use with the recommended solvent, keep the return hose clean, and avoid dried-paint buildup on the valve knob and port. Periodic inspection prevents sticking and premature wear.
