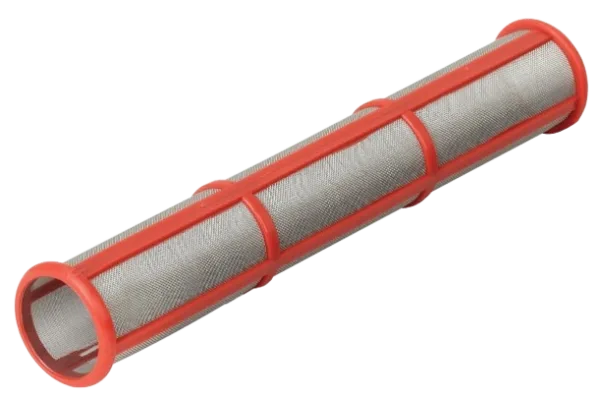

Graco 244069 Easy Out Pump Manifold Long Filter — 200 Mesh
Compatible Machines
Fits Graco airless sprayers that use the Easy Out Long (vertical) manifold filter body:
- Ultra Max series (models using the Easy Out Long manifold filter)
- GMAX series (e.g., jobsite gas models that accept Long manifold filters)
- GH 200 (specified for Long Easy Out filters)
- HydraMax series (units with Long Easy Out filter housings)
Key Specifications
| Part Number | 244069 |
| Filter Family | Easy Out Manifold Filter (Long style) |
| Mesh Rating | 200 Mesh (extra-fine) |
| Best For | Thin/coating materials such as stains, varnishes, and many solvent-based paints |
| Function | Protects pump & gun by filtering debris before fluid reaches the hose/tip |
| Orientation | Vertical (Long filter body) |
Overview
The Graco 244069 Easy Out Pump Manifold Long Filter (200 Mesh) is an extra-fine replacement filter that sits in the manifold housing to keep contaminants out of your fluid path. Using the correct mesh helps reduce tip clogs, improves finish quality, and extends pump life.
Material Guidance & Use
- Choose 200 Mesh when spraying thin materials (stains, lacquers, varnishes, many solvent paints).
- For heavier materials (high-solids/coarser), your sprayer may require a coarser mesh (e.g., 30/60/100).
- Match the filter style: this part is for Easy Out – Long housings (not the “Short” style).
Quick Installation & Care
- Relieve pressure and follow all safety steps in your Graco manual.
- Unscrew the manifold cap; pull out the existing Long filter.
- Inspect/clean the housing; seat the new 244069 200-mesh filter.
- Reinstall cap securely; test with water/approved solvent before coating.
- Clean or replace the filter regularly to maintain optimal performance.
What’s Included
- 1 × 244069 Easy Out Long Manifold Filter (200 Mesh)
Notes
- This is the Long filter variant. If your sprayer uses the Short (horizontal) manifold filter, this part will not fit.
- Always verify fit using your exact sprayer model’s parts manual.
Frequently Asked Questions
Check your sprayer’s parts list or the manifold filter housing. Models calling for Easy Out (Long) use a vertical filter body like 244069. If your manual shows a horizontal filter, you likely need the Short style instead.
Use 200 mesh for thin materials (stains, lacquers, varnishes, many solvent paints). For thicker or high-solids coatings, switch to a coarser mesh (e.g., 30/60/100) as specified by your coating and sprayer manual to avoid flow restriction.
Yes. The Easy Out manifold filter removes debris before it reaches the hose and tip, helping reduce clogs and improving finish quality, especially with fine tips and thin materials.
In many cases, yes—flush with the appropriate solvent and use a soft brush. Replace the filter if the screen is damaged, deformed, or won’t come clean. Following the maintenance schedule in your sprayer manual is recommended.
It shares the Long body style with other Easy Out Long filters but differs by mesh rating (200). If your sprayer calls for the Long style, you may use different meshes (30/60/100/200) depending on material, but always match the Long vs Short requirement.
