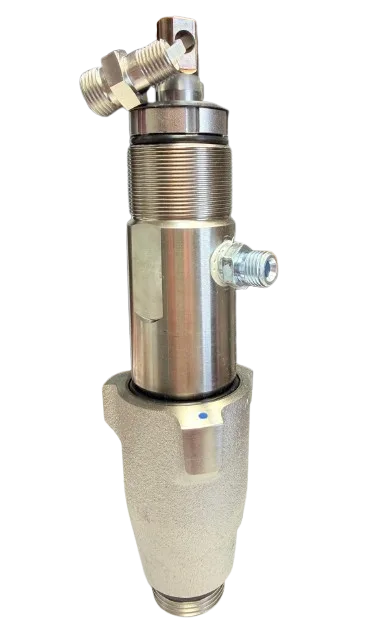

Graco 248204 Pump Assembly for 695 and 795

The Graco 248204 Pump Assembly is a complete OEM fluid section designed for Ultra Max II and Ultimate MX II sprayers, ensuring reliable paint flow and consistent spray performance.

Fits: Ultra Max II 695 & 795, Ultimate MX II 695 & 795
Max Pressure: 3600 PSI (250 bar)
Includes: Piston rod, sleeve, valves, and packings
Replacement for: Worn or leaking pump assemblies

Retail Price: $741

You save: $118.56 (16.00%)

Our Price: $622.44

Based on 0 reviews

Description

Compatible Machines

Graco Ultra Max II 695 (selected first-generation/early series)
Graco Ultra Max II 795 (selected first-generation/early series)
Graco Ultimate MX II 695
Graco Ultimate MX II 795

Product Overview

The Graco 248204 is the OEM pump assembly (complete fluid section) used on specific Ultra Max II/Ultimate MX II 695 & 795 sprayers. It includes the piston/rod, cylinder/sleeve, intake valve & ball, and fluid packings—restoring pumping performance when the original fluid section is worn or damaged.

Key Specs
Graco Part #	248204
Type	Complete pump assembly / fluid section for select 695 & 795 units
Max Working Pressure	Up to 3600 psi (250 bar) (per generation documentation)
Typical Outlet	1/4 in. NPT (f)
Service Packings (when rebuilding)	Packing repair kit 248212 services pump 248204 (see Notes)

Specs can vary by series; verify against your unit’s manual.

What’s Included

Piston rod & cylinder/sleeve
Intake valve & ball
Fluid packings

Notes & Cross-References

Packing Repair Kit: For servicing the internal packings of pump 248204, use repair kit 248212. This is not a complete fluid section.
Generations: Compatibility applies to specific early/1st-generation Ultra Max II 695/795 and Ultimate MX II variants—confirm by model & serial.

Frequently Asked Questions

248204 replaces the entire fluid section/pump assembly (rod, sleeve, valves, packings). 248212 is the packing repair kit used to rebuild the seals inside pump 248204 when the hardware is still serviceable.

Match your sprayer’s model/series and serial range against the parts list in your Graco manual. Early/1st-generation Ultra Max II 695/795 use the 248204 pump; later generations may differ.

Loss of pressure or pulsation that persists after tip/filters are checked
Material bypass/leakage past packings or erratic spray pattern
Rod/sleeve scoring or severe valve/seat wear found during teardown

Refer to your pump repair manual for inspection points and rebuild steps.

Basic hand tools plus a bench vise are typical; follow Graco’s pressure-relief and assembly procedures exactly. The official manual lists recommended tools and sequence.
