Graco 114420 Machined Panhead Phillips Sems Screw
$5.25
Available to Order

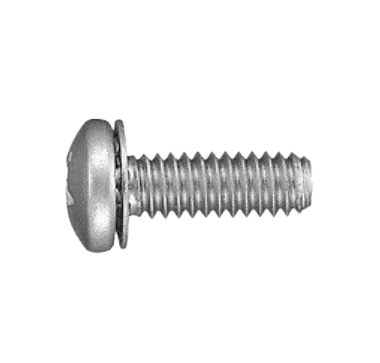

The Graco 114420 Machined Pan‑Head Phillips SEMS Screw is a precision OEM fastener used in Graco equipment for internal panel and assembly mounting.
- Pan‑head design with pre‑assembled washer (SEMS)
- Phillips drive for standard tools
- Genuine Graco part number 114420
Quantity
Genuine OEM Part
Fast Shipping (Order by 1 PM CST)
Easy Returns
Overview of the Graco 114420 Machined Pan-Head Phillips SEMS Screw
The Graco 114420 Machined Pan-Head Phillips SEMS Screw is a genuine OEM fastener designed for secure and reliable assembly of components within Graco spray and fluid-handling equipment.
Key Features
- OEM Quality: Manufactured by Graco to original equipment specifications.
- Pan-Head Style: Provides a broad bearing surface, suitable for sheet-metal or panel fastening.
- Phillips Drive: Standard Phillips head for quick installation with common tools.
- SEMS Design: Comes pre-assembled with a washer to simplify assembly and maintain proper preload.
Compatible / Known Applications
Based on available documentation, this screw is used in Graco equipment where that exact fastener specification is required. Please verify your machine’s parts list for part number 114420. Known application includes:
- Graco Ultra MAX II 1095 Series B sprayer (parts list includes 114420).
- Other Graco spray rigs and industrial units where the parts breakdown lists part 114420 for internal fastening.
Specification Details
| Part Number | 114420 |
|---|---|
| Item Type | Screw, Machine, Pan-Head, SEMS, Phillips |
| Drive Style | Phillips |
| Head Style | Pan Head |
| Washer Assembly | SEMS (pre-assembled washer) |
| Manufacturer | Graco (OEM) |
Installation & Maintenance
- Ensure the machine is powered off and safe before servicing internal components.
- Locate the original screw in the parts diagram and remove it noting position and orientation.
- Verify threads are in good condition and mating surfaces are clean.
- Install the Graco 114420 screw, driving it until the head is flush but avoid over-tightening which may strip threads or damage the panel.
- During periodic maintenance, inspect the screw and surrounding area for loosening, corrosion or wear; replace with OEM part if required.
Frequently Asked Questions
This screw is used to fasten internal components, panels or housings within Graco spray equipment, providing a reliable assembly point with pre-washer (SEMS) for secure fit.
To confirm compatibility, check your machine’s exploded-view diagram or service parts list for part number 114420. If it appears, this is the correct replacement screw.
While a generic pan-head Phillips screw may physically fit, using the genuine Graco 114420 ensures correct washer-seated SEMS design, thread engagement and material grade — which contributes to long-term reliability.
