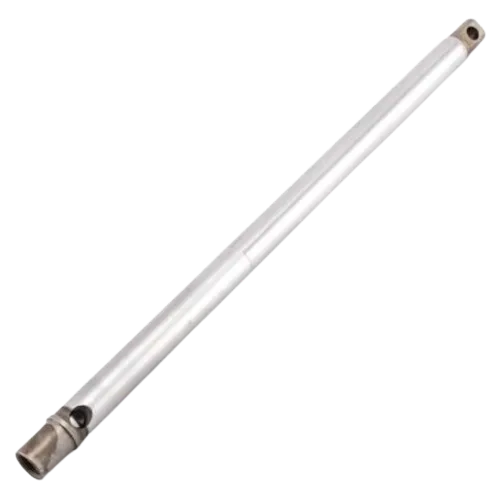

Graco 249969 Piston Rod

The Graco 249969 Piston Rod is a durable OEM replacement rod designed for Graco Mark IV sprayers, ensuring smooth and consistent fluid delivery.

Part Number: 249969
Material: Chromex wear-resistant finish
Fits: TexSpray Mark IV Standard & Premium
Compatible Pumps: 16X428, 17H828, 253056
Use: For airless paint & texture sprayers

Retail Price: $497

You save: $130.21 (26.20%)

Our Price: $366.79

Based on 0 reviews

Description

Precision OEM Replacement for Graco Pump Sections (P/N 249969)

Compatible Machines

Graco TexSpray Mark IV — Standard Series
Graco TexSpray Mark IV — Premium Series

Also used in the following pump assemblies: 16X428, 17H828, 253056.

What is the Graco 249969 Piston Rod?

The Graco 249969 Piston Rod is a factory OEM pump rod for the Mark IV pump section. It translates crank motion to piston movement, maintaining consistent fluid delivery and pressure. This rod is commonly listed as a Chromex pump rod, engineered for durability and wear resistance in high-duty spraying and texturing applications.

Quick Specs

Graco Part #	249969
Component	Pump / Piston Rod (OEM)
Finish/Construction	Chromex wear-resistant surface (for extended life)
Primary Platform	Graco TexSpray Mark IV (Standard & Premium)
Associated Pump Assy.	16X428, 17H828, 253056
Typical Use	Airless texture & paint spray pumping section

Fitment Notes & Best Practices

Verify against your sprayer’s serial/model revision and pump assembly number before ordering.
Inspect/replace packings, seals, and balls during piston-rod service to restore full pump performance.
Lubricate per Graco service manual; check rod straightness and surface condition during install.
After installation, pressure-test with water/mineral spirits and check for leaks or pressure drop.

Frequently Asked Questions

Match the rod to your pump assembly (e.g., 16X428, 17H828, 253056) and confirm your sprayer is a TexSpray Mark IV (Standard or Premium). If unsure, check the illustrated parts list for your exact model/serial.

Chromex is a hardened, wear-resistant surface treatment that improves durability against abrasion and extends the service life of the rod under high-pressure operation.

It’s highly recommended. Worn packings/seals can cause pressure loss and premature wear on a new rod. Replacing them during rod service restores full pump efficiency and reliability.

Scoring on the rod, pressure fluctuation, reduced output, leakage past packings, or excessive pump noise are common indicators the rod (and packings) need service.

Yes—249969 is an OEM Graco piston rod specified for TexSpray Mark IV pump sections and listed with associated pump assemblies (16X428, 17H828, 253056).
