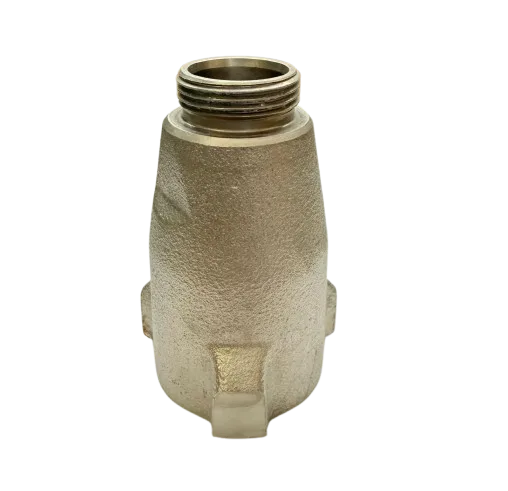

Graco 15C785 Intake Valve Housing

The Graco 15C785 Intake Valve Housing houses the intake valve components, ensuring proper fluid entry and sealing for high-pressure Graco sprayers.

Supports intake valve assembly
Maintains leak-free fluid flow
Durable for high-pressure use
OEM Graco replacement part

Retail Price: $58.75

You save: $4.46 (7.59%)

Our Price: $54.29

Based on 0 reviews

Description

Graco 15C785 Intake Valve Housing – Detailed Overview

Compatible Machines

Graco Ultra Max II 695 series sprayers
Graco Ultra Max II 795 series sprayers
Graco GMax II 3900 sprayers

Product Description

The Graco 15C785 Intake Valve Housing is the lower section of the pump fluid manifold that houses the intake valve components—such as the ball, seat, and O‑ring—ensuring reliable fluid entry and sealing in high‑pressure airless sprayers. It is built to handle rigorous cycling and demanding conditions, helping maintain optimal pump performance and prevent leakage or fluid loss.

Part Specifications

Part Number	15C785
Name	Intake Valve Housing / Housing, Intake
Function	Houses intake valve assembly for fluid inlet
Application	Pump manifold intake for Graco high‑pressure sprayers

Frequently Asked Questions

It supports and seals the intake valve components to ensure fluid flows into the pump without leaking or bypassing.

Symptoms include seepage around the intake area, damaged threads, or housing cracks—these indicate a replacement is required.

Installation involves removing the pump manifold, cleaning the surface, fitting the new housing with proper torque, and replacing seals—it is manageable with servicing experience.
