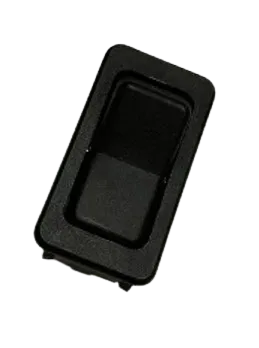

Graco 15D527 240V Rocker Switch

Graco 15D527 is a genuine OEM 240V rocker switch designed for reliable ON/OFF control in Graco electric sprayers and control boxes.

  • Snap-in rocker design for easy installation
  • Rated up to 20A at 125–277V AC
  • Durable polymer housing resists wear
  • Compatible with Graco UltraMax II and Mark V 240V models

Retail Price: $29.8
You save: $0.6 (2.01%)
Our Price: $29.2
0
Based on 0 reviews
5
0%
4
0%
3
0%
2
0%
1
0%

Graco 15D527 240V Rocker Switch — Detailed Overview

The Graco 15D527 is a genuine OEM rocker switch rated for 240 V AC, commonly used in Graco control boxes to enable reliable on/off operation for electric sprayers. It's designed for durable performance under demanding conditions.

Key Features & Benefits

  • OEM replacement part built to Graco specification.
  • Rated for up to 20 A at 125–277 V AC, allowing for robust switching capacity.
  • Snap-in rocker design makes installation secure and straightforward.
  • Designed for use in Graco control boxes and compatible sprayers, including UltraMax II and Mark V models.
  • Durable polymer housing resists electrical and mechanical wear over repeated cycles.

Compatibility & Application

This rocker switch is used in several Graco electric sprayer machines and control boxes:

  • Graco UltraMax II 695/795/1095 (240 V models)
  • Graco Mark V TexSpray (240 V models)
  • Graco control housings that specify the 15D527 switch per parts manuals.

Technical Specifications

Specification
Part Number 15D527
Description Rocker Switch, ON/OFF, 240 V
Voltage Rating 125–277 V AC
Current Rating Up to ~20 A (depending on voltage)
Switch Style Snap-in rocker switch

Installation & Maintenance

  1. Power off and unplug the sprayer before replacing the switch.
  2. Open the control housing to access the existing rocker switch.
  3. Remove the old switch by carefully prying it out from its panel slot.
  4. Insert the new 15D527 rocker switch into the cut-out, ensuring it snaps securely in place.
  5. Reconnect wiring as per the original configuration, ensuring proper polarity and tight connections.
  6. Close the control housing, power on the machine, and test the switch operation under normal conditions.

Why Replace With 15D527?

  • If your current switch is faulty, cracked, or has poor contact, the 15D527 restores reliable power control.
  • Using an OEM switch ensures correct voltage rating and safe operation in Graco control systems.
  • Prevents electrical arcing, overheating, or failure that can arise from improper or worn switches.

Frequently Asked Questions

The 15D527 is used in several Graco 240 V machines, such as the UltraMax II 695/795/1095 and the Mark V TexSpray.

It's rated up to around 20 A depending on the voltage (125–277 V AC), making it suitable for many Graco 240 V systems.

Yes — it is a simple snap-in switch. Remove the old one, snap in the new 15D527, rewire, and test. Just ensure power is off before you begin.
