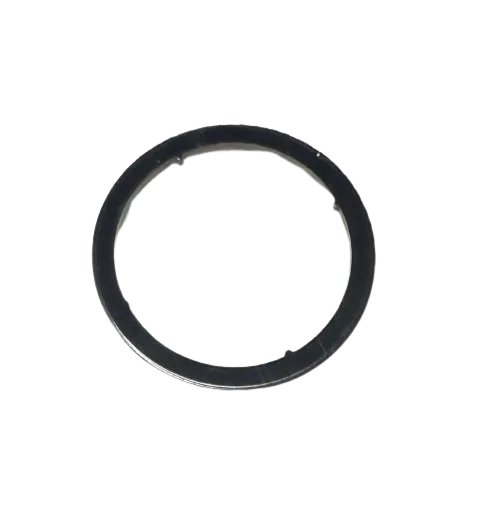

Graco 15D541 Seal (Washer) — Detailed Description
The Graco 15D541 is a genuine OEM seal washer designed to provide reliable sealing in critical connection points of Graco sprayer systems. It prevents leaks, protects internal components from contamination, and ensures optimal performance and longevity of the equipment.
Key Features & Benefits
- OEM-quality seal washer for precise fit and compatibility
- Reliable sealing for fluid or hydraulic systems to prevent leaks
- Compact and low-profile design for easy installation
- Maintains proper pressure and prevents contamination ingress
Compatibility & Application
The Graco 15D541 seal washer is used in a variety of Graco sprayer models and assemblies, particularly in pump or fluid sections where a proper seal is required.
Technical Specifications
| Specification |
| Part Number | 15D541 |
| Description | Seal (Washer) for Graco equipment |
| Material | OEM-grade elastomer/plastic mix suitable for fluid sealing |
| Typical Use | Sealing joint surfaces, preventing leaks in pump or fluid module assemblies |
Installation & Maintenance
- Ensure the system is depressurized and powered off before servicing.
- Disassemble the joint or housing where the old seal washer is located.
- Remove the old washer and clean the mating surfaces thoroughly.
- Place the Graco 15D541 seal washer in the groove or mounting spot, ensuring proper orientation.
- Reassemble the components, torque to manufacturer specifications, and test the system for leaks.
Why Replace or Use This Seal?
- Prevents fluid leaks, loss of pressure, and contamination entry.
- Maintains system performance and supports service standards.
- Reduces downtime and maintenance costs by ensuring reliable operation.
Frequently Asked Questions
The 15D541 seals joint surfaces or housing interfaces in Graco pump or fluid systems to prevent leaks and ensure reliable performance.
Yes, the 15D541 is a genuine OEM Graco seal washer listed in official Graco parts catalogs.
The replacement interval depends on usage and exposure. Inspect during routine maintenance and replace if wear, flattening, or leakage is detected.
