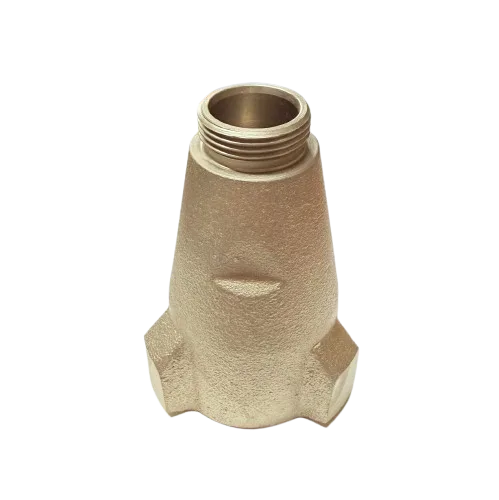

Graco 15E654 Intake Valve Housing

Graco 15E654 Intake Valve Housing used for proper inlet fluid intake and sealing in compatible airless/hydraulic sprayers.

Part number 15E654 — OEM intake valve housing
Secures pump inlet and ensures pressure integrity
Compatible with 1095 XT Ultra and Ultra Max II sprayers
Durable cast housing for heavy-duty use

Retail Price: $149

You save: $15.5 (10.40%)

Our Price: $133.5

Based on 0 reviews

Description

Graco 15E654 Intake Valve Housing

The Graco 15E654 Intake Valve Housing is a genuine OEM component used in airless/hydraulic paint sprayers. It serves as the main inlet housing that channels fluid or material intake properly into the pump assembly. This housing helps maintain pressure integrity and ensures reliable fluid delivery under heavy industrial spraying conditions.

Compatible Machines

Graco 1095 XT Ultra and Ultra Max II sprayers
Other Graco sprayers that specify 15E654 as intake valve housing
Industrial airless sprayer models using OEM intake housing 15E654

Specifications

Specification	Detail
Part Number	15E654
Component Type	Intake Valve Housing
Function	Provides sealed inlet for fluid entry into pump
Material	Cast metal housing (OEM standard)
OEM Replacement	Yes

Key Features

OEM-specified housing — ensures correct fit and sealing
Maintains proper fluid intake and pressure integrity
Durable cast housing for long-term industrial use
Reduces risk of leaks or intake faults under load
Compatible with multiple Graco airless sprayer models

Installation

Remove the old intake housing and clean mating surfaces thoroughly. Install 15E654 using original bolts and gaskets, tightening evenly to ensure proper sealing. After installation, prime the pump and check for leaks before full-pressure operation.
