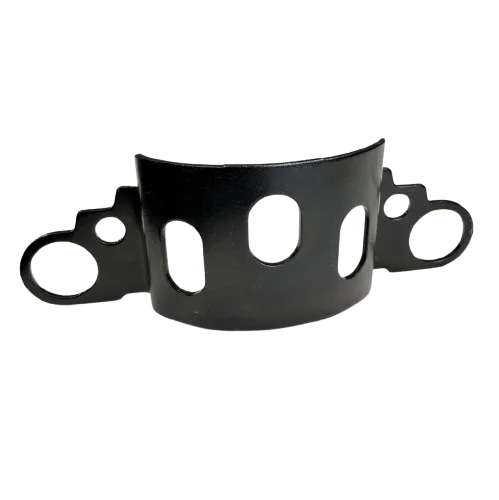

Graco 16X770 Pump Rod Shield

The Graco 16X770 Pump Rod Shield protects the pump rod from debris and wear, ensuring smoother performance and longer component life.

  • OEM Genuine Graco Part
  • Fits Ultra Max II 695, 795, 1095, and 1595
  • Prevents paint build-up and rod damage
  • Easy to install and maintain

$7.76
0
Based on 0 reviews
5
0%
4
0%
3
0%
2
0%
1
0%

Overview & Compatibility

Compatible Machines

This Graco 16X770 Shield, Pump Rod is used on the following Ultra Max II airless sprayers:

  • Ultra Max II 695 (Hi-Boy & Lo-Boy)
  • Ultra Max II 795 (Hi-Boy)
  • Ultra Max II 1095 (Hi-Boy)
  • Ultra Max II 1595 (Hi-Boy)

Tip: If your model is one of the above but a different year/trim, match by part number 16X770 in your parts manual.


What is the Graco 16X770 Shield, Pump Rod?

The Graco 16X770 Pump Rod Shield is a genuine OEM protective cover that sits around the pump rod area to help guard against paint debris, job-site contamination, and incidental contact. By keeping the rod area cleaner and protected, it supports smoother operation and extends service life of pump components.

Key Benefits

  • OEM fit & finish—engineered by Graco for consistent alignment and coverage.
  • Helps reduce wear by shielding the pump rod area from overspray and debris.
  • Quick replacement—straightforward swap during routine maintenance.

At-a-Glance Details

Part Number 16X770
Item Name Shield, Pump Rod
Category Protective / Guard component
Fits Series Graco Ultra Max II (select models listed above)
Compatibility Check Verify against your sprayer’s parts manual for the exact build/year.

Installation & Care Notes

  • Always depressurize the sprayer and follow Graco safety procedures before service.
  • Inspect surrounding seals/rod for damage while replacing the shield.
  • Wipe clean after use to prevent paint build-up around the rod area.

Frequently Asked Questions

It fits the Ultra Max II 695 Lo-Boy. For other Lo-Boy variants, match by part number in your unit’s parts manual or contact support with your model code/serial.

Yes—this is a genuine Graco OEM component designed for the Ultra Max II platform listed above.

Typically the shield can be replaced on its own. While servicing, many techs also inspect the pump rod, packings, and guards. Replace any worn items per your parts manual.

Check your unit’s parts breakdown for part number 16X770. If listed, it fits your configuration. If unsure, share your model number and serial for verification.

Keep the area clean after each use, avoid impact, and store the sprayer covered in dusty environments. Regular cleaning reduces build-up and helps the shield perform as intended.
