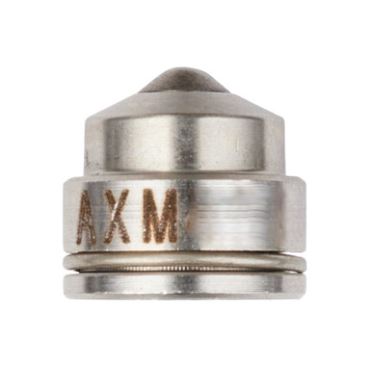

Graco AXM627 Performaa Spray Tip

Graco AXM627 Performaa Spray Tip has the following specifications:

• Orifice Size:

  • 0.027 inches (0.686 mm)

• Fluid Output:

  • 58.5 fl oz/min (1.7 L/min) at 600 psi (4.1 MPa, 41 bar)
  • 75.8 fl oz/min (2.27 L/min) at 1000 psi (7.0 MPa, 70 bar)

• Maximum Pattern Width:

  • 12 to 14 inches (350 mm) at a 12-inch distance (305 mm)

This spray tip is designed for high-output applications, providing large volumes of fluid with a wide spray pattern. It is especially suitable for projects requiring significant coverage and a thicker application of material, making it ideal for commercial or industrial painting, coating, or similar heavy-duty spraying tasks.
