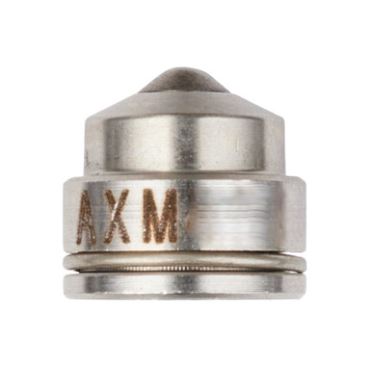

Graco AXM629 Performaa Spray Tip

Graco AXM629 Performaa Spray Tip Supersede Graco GG4629

It has the following specifications:

• Orifice Size:

  • 0.029 inches (0.737 mm)

• Fluid Output:

  • 68.0 fl oz/min (1.9 L/min) at 600 psi (4.1 MPa, 41 bar)
  • 88.2 fl oz/min (2.65 L/min) at 1000 psi (7.0 MPa, 70 bar)

• Maximum Pattern Width:

  • 12 to 14 inches (350 mm) at a 12-inch distance (305 mm)

This spray tip offers high fluid output and is suitable for larger volume applications. It provides a wide spray pattern, making it ideal for projects requiring large coverage areas, such as industrial and commercial coatings or spraying thicker materials. The combination of a larger orifice size and substantial fluid output ensures efficient and effective application.
