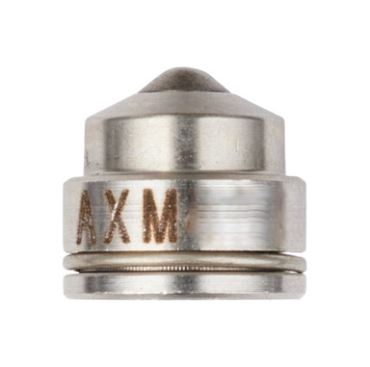

Graco AXM625 Performaa Spray Tip

Graco AXM625 Performaa Spray Tip Supersede Graco GG4625

It has the following specifications:

• Orifice Size:

  • 0.025 inches (0.635 mm)

• Fluid Output:

  • 50.0 fl oz/min (1.5 L/min) at 600 psi (4.1 MPa, 41 bar)
  • 64.8 fl oz/min (1.94 L/min) at 1000 psi (7.0 MPa, 70 bar)

• Maximum Pattern Width:

  • 12 to 14 inches (350 mm) at a 12-inch distance (305 mm)

This spray tip is designed for high-fluid-output applications, suitable for larger coverage areas or thicker coatings. With its larger orifice size, it is especially effective for tasks that require a high volume of fluid delivery and wide spray patterns, making it ideal for heavy-duty spraying on large surfaces.
