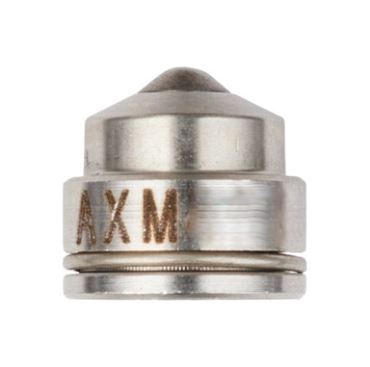

Graco AXM827 Performaa Spray Tip

Graco AXM827 Performaa Spray Tip has the following specifications:

AXM827 Specifications:

• Orifice Size:
  0.027 inches (0.686 mm)

• Fluid Output:

  • At 600 psi (4.1 MPa, 41 bar): 58.5 fl oz/min (1.7 L/min)
  • At 1000 psi (7.0 MPa, 70 bar): 75.8 fl oz/min (2.27 L/min)

• Maximum Pattern Width (at 12 inches / 305 mm distance):
  16 to 18 inches (450 mm)

Key Features:

• The orifice size of 0.027 inches (0.686 mm) allows for a larger fluid output compared to smaller spray tips, delivering higher flow rates.
• At 600 psi, the output is 58.5 fl oz/min (1.7 L/min), and at 1000 psi, it increases to 75.8 fl oz/min (2.27 L/min), making it suitable for high-volume applications.
• The maximum pattern width at 12 inches is between 16 to 18 inches (450 mm), providing broad coverage for large-scale spraying or coating needs.

Summary:

The AXM827 spray tip is designed for high fluid output and wide spray coverage, ideal for large-scale industrial or commercial applications that require substantial fluid distribution and wide coverage areas, such as in heavy-duty coating, painting, or similar processes.
