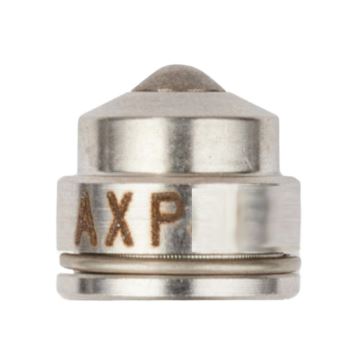

Graco AXP417 Performaa Precision Spray Tip

Graco AXP417 Performaa Precision Spray Tip Supersede Graco GG5417

It has the following specifications:

• Orifice Size: 0.017 inches (0.432 mm)
• Fluid Output:
  • At 600 psi (4.1 MPa, 41 bar): 22.0 fl oz/min (0.7 L/min)
  • At 1000 psi (7.0 MPa, 70 bar): 28.5 fl oz/min (0.85 L/min)
• Maximum Pattern Width: 8 to 10 inches (250 mm) at 12 inches (305 mm) from the spray tip.

This spray tip is ideal for applications requiring moderate to high fluid output, with a controlled spray width. It offers efficient coverage for medium to large scale projects that require a higher volume of material without sacrificing precision in the spray pattern.
