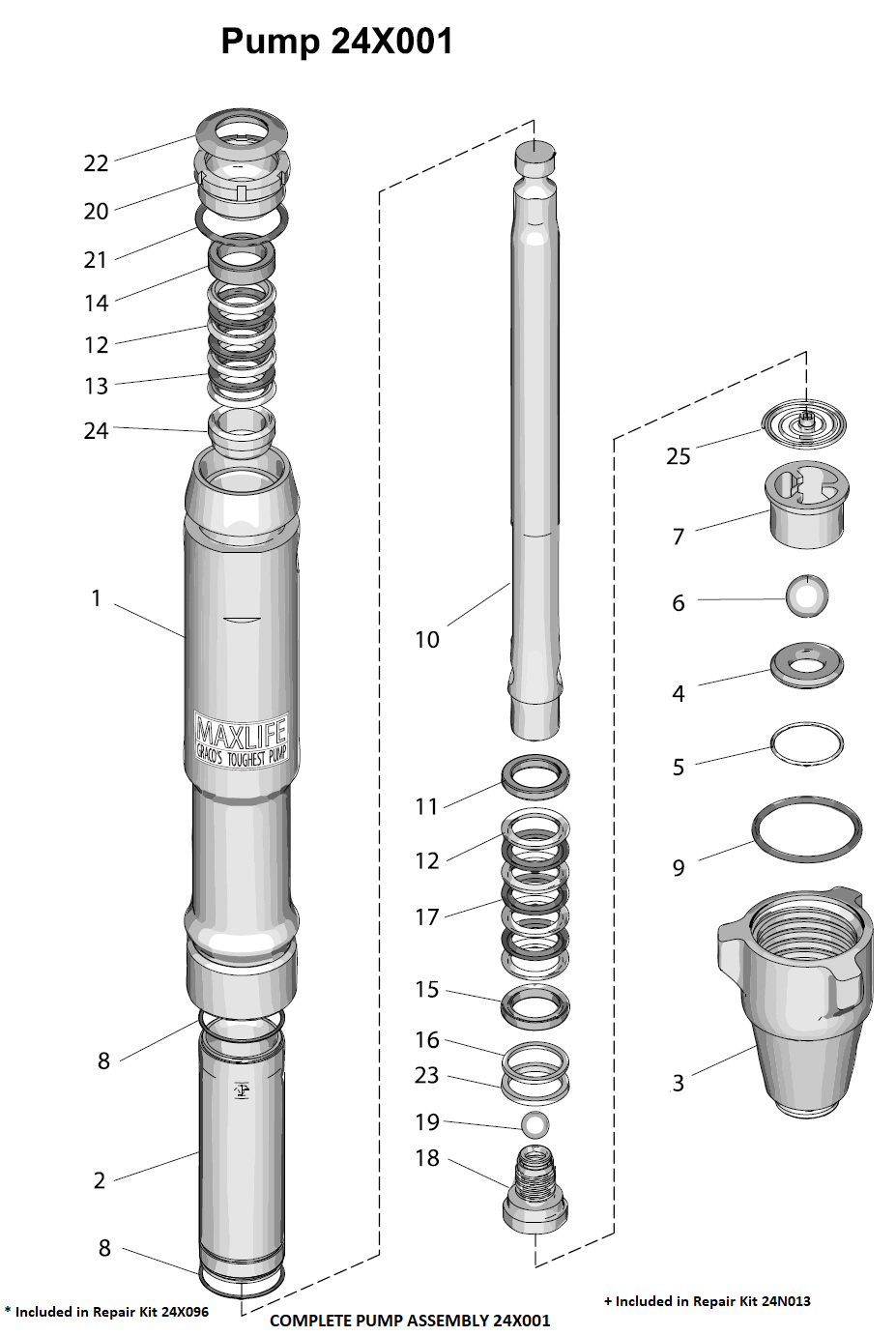

Graco DutyMax GH230 HD (24X001) Pump Breakdown

Get the Right Graco DutyMax GH230 HD (24X001) Pump Breakdown Components for Peak Performance

When spraying must be precise, reliable, and efficient—whether tackling drywall texture, elastomeric coatings, or commercial paintwork—the Graco DutyMax GH230 HD (24X001) pump is a proven workhorse. But to get the most out of this rugged sprayer, you need top-tier breakdown components and replacement parts. That’s where Sprayersandparts.com comes in.

We offer factory-authorized components for the GH230 HD pump breakdown—everything from pack-off kits to whip hoses—all in one easy order. Featuring fast shipping, in-depth specifications, and contractor-level support, our system ensures you can spec, source, and ship parts without hassle.

1. Why Genuine Graco DutyMax GH230 HD Components Matter

 Designed to OEM Specifications

All OEM parts are built to match Graco’s exact engineering tolerances. When reassembling a pump breakdown, precise alignment prevents leaks, unsafe disassembly, and wasted servicing hours.

 Chemical & Pressure-Resistant

These components are tested for pressures up to 3300 PSI and are compatible with coatings such as acrylic, high solids, textures, and solvents. Knock-off parts often lack this level of testing, leading to early failure or unexpected issues.

 Warranty Compliance & Expert Support

Only OEM parts preserve your Graco warranty and eligibility for official technical guidance. Our support staff includes seasoned technicians who can assist with torque specs, reassembly tips, and part-fitment checks.

2. DutyMax GH230 HD Spec Overview

• Pump Model: GH230 HD (24X001)

• Sprayer Type: Electric airless

• Ideal Jobs: Contractor-grade interiors, exterior textures, elastomerics

• Max Pressure: 3300 PSI

• Output: Up to 0.55 GPM

• Motor: Commercial-grade with SmartControl options

Maintaining this performance requires paying attention to key pump breakdown components: pack-off sets, manifold valves, whip hoses, and accessories.

3. Core Breakdown Components & Their Role

 Pump Pack-Off Kit

Includes rod, packing, seals, and O-rings critical for maintaining pressure. Replace at regular intervals to prevent leaks or trigger hesitation.

 Inlet & Outlet Valve Assemblies

Restore pump flow efficiency by replacing worn valve seats, springs, and guides—essential after heavy usage or previous pump rebuilds.

 Whip Hose with Swivel

Highly flexible high-pressure hose to connect pump to gun. OEM parts include stainless steel braiding and swivel coupling for improved handling and operator comfort.

Piston & Cylinder Wear Parts

These friction-heavy components wear over time. OEM replacements ensure hydraulic precision and longer life.

 Gun Components & Whip

While secondary to the pump, proper gun nozzle, whip, and check valve assemblies complete system compatibility.

Lubricants & Seals

OEM-supplied grease and chemical seals ensure parts fit and perform as intended— extending component life.

5. Fast Shipping & Pro-Level Support

•  Order by 12 PM Central for same-day fulfillment (Terms & Conditions apply)

•  1–3 Business Day delivery to most locations

•  Technical help via phone, chat, and email

•  Houston pick-up available for local contractors

Need torque specs? Advice during rebuild? We provide on-the-go technical expertise for real-world solutions.

6. Pro Tips for Pump Longevity

 Maintain a Service Log

Track rebuild dates, kit replacements, and total gallons sprayed to know when to preemptively regenerate pump integrity.

 Use OEM-Supplied Lubrication

Applying Graco grease with seal kits ensures longevity and proper seating.

 Match Seals to Coatings

Use elastomer compatibility charts—e.g., Viton for rubber-based coating, EPDM for water-based textures.

 Keep a Breakdown Kit Handy

Every project gets intense. A spare kit avoids downtime when packing or parts fail mid-job.

 Keep Components Organized

Use bins to differentiate between GH230, GMAX, 3400 parts to avoid mix-up.

7. Cross-Model Compatibility

These pump breakdown components are also used in:

• Graco 3400, 390, FieldLazer Line Stripers

• Graco GMAX series industrial sprayers

• Graco Ultra electric sprayers

Cross-compatibility helps build a versatile inventory across job types.

9. Sustainability in Every Kit

•  Recyclable packaging

•  Parts built to last, reducing landfill waste

•  Fast shipping reduces multiple shipments

10. Setup: Rebuild Steps for Peak Performance

1. Remove old pump breakdown parts

2. Clean and inspect piston, valve cage, etc.

3. Install new pack-off kit with OEM grease

4. Replace valves using torque specs

5. Attach whip hoses with proper torque

6. Pressure check for leaks & flow

7. Document rebuild in service log

A complete rebuild restores hydraulic consistency and extends equipment life.

11. Tool Kit Suggestions

Equip your maintenance bucket with:

• Complete Pack-Off Kit (24X001)

• Full Inlet/Outlet Valve Assemblies

• Stainless Whip Hose (2' or 3')

• Pump Armor Kit

• Replacement Seal O-Ring Sets

• Torque Wrench & Grease Gun

• Pressure Gauge & Calibration Kit

Keep this on-hand for rapid service between shifts or jobzones.
