Graco FT500 Electric Airless Sprayers Main Assembly Parts

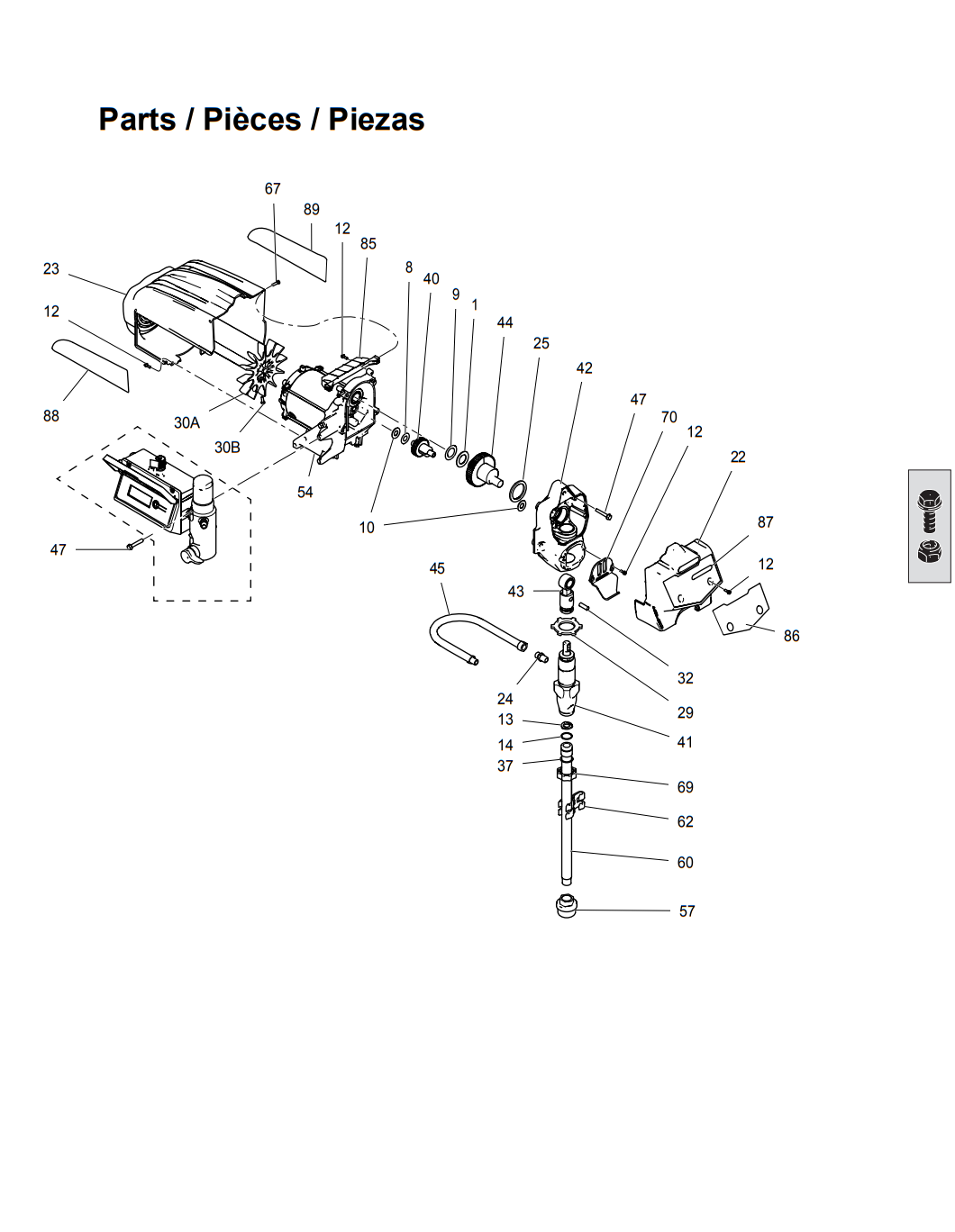

Graco FT500 Electric Airless Sprayer Main Assembly Category and Diagram, feature a lot of parts.

From the electric motor, fan and other parts essential for the operation of the Paint Sprayer. Among those are Pump Assembly, Pressure Return Hose, suction pipe, and Filter. Broken, Cracked or mis threaded Housing? Checkout items 42 Graco 287899 and Graco 24B439.

Unlock Maximum Uptime with Genuine Graco FT500 Main Assembly Parts

The FT500’s main assembly ties the SmartControl™ board, 2.4 hp TEFC motor, crankcase and Endurance™ pump into one rugged Lo-Boy frame. Copy-cat components rarely match the hardened Chromex® finish or ±1 % pressure algorithm that keep fans flat and coat weight accurate. Our OEM parts ship with QR-coded instructions, torque specs and a digital graco spray gun parts diagram so even a first-year apprentice can swap and spray in minutes.

Five Reasons Pros Stay Genuine

• Chromex® Precision. OEM rods and cylinders hold micron-grade clearances, preserving 90 % volumetric efficiency 2× longer than chrome-plated clones.
• Pressure-proof Hardware. Manifold blocks and filter housings are hydro-tested to 5000 psi—essential when you run a .031 WRM on hot roofs.
• SmartControl™ Firmware Match. Replacement boards arrive pre-flashed; no laptop, no jittery pressure curve, just plug-and-spray stability.
• ProConnect™ Speed. Pop the pump with a ½-in wrench; a complete swap averages 60 seconds, slashing labor costs on night shifts.
• Warranty Intact. Using non-OEM seals voids Graco’s drive-train warranty—don’t gamble with callbacks.

Key Specs & Top-Seller Kits

Which Rigs Share FT500 Parts?

Graco engineers build on modular platforms; stocking one kit protects a multi-sprayer fleet:

• Ultra Max II 695 & 795—identical pump module, pick-up tube and graco spray tip guards.
• GMax II 7900 gas unit—shares Easy-Out filter, transducer and crank gear, so you can support gas powered paint sprayers with one inventory bin.
• LineLazer 3400 stripers—filter core and piston rod match graco 3400 parts, perfect for pavement crews.
• Magnum LTS 17 consumer rig—tip guards, inlet strainer and pressure valve align with adapter kit 17P186; keep the magnum lts 17 paint sprayer manual on hand for torque specs.
• TrueCoat 360 cordless—RAC X FFLP tips create identical fan geometry, unifying finishes when you add graco cordless paint sprayer parts to the cart.
• Graco 3400 LineLazer—clutch bearing and drive belt identical; one spare pack covers both texture and striping crews.

Smart Accessory Bundles that Extend Pump Life

1. Pump Armor® Winter Kit. One gallon anti-corrosion fluid + quick-connect makes the FT500 startup-ready after months in storage.
2. BlueMax II Hose Set. 50 ft × ¼ in main + 3 ft whip dampens pulsation, cutting pack-off wear by 20 %—critical on graco drywall texture sprayer jobs.
3. RAC X Tip & Guard Bundle. Eight FFLP & WRM patterns and two graco spray tip guards cover trim to roof-coat duties.
4. Laminated Parts Map. Color-coded graco sprayer repair kit diagram folds into the toolbox; green = seals, red = rods, blue = electrics.
5. Job-Box Spare Pump. Pre-primed Endurance pump saves a $5 000 day when the on-board unit takes a hit mid-shift.

Five Habits for 1 000-Hour Pumps

1 — Log Gallons & Hours. Swap packings at 750 gal latex / 400 gal elastomeric.
2 — Flush Warm. 38 °C water dissolves acrylic faster; half-pressure back-flush keeps debris out of the transducer.
3 — Lube the Throat. Two drops TSL™ every break keeps rods mirror-bright.
4 — Torque Weekly. Crankcase screws 15 ft-lb; loose bolts eat gears.
5 — Stock Redundancy. One $60 filter + $200 pump kit = zero “man-standing” hours.

Ready to Re-Power Your FT500?

Don't compromise your sprayer with aftermarket parts. Shop now at sprayersandparts.com to find the perfect components for your Graco FT500 electric airless sprayer's main assembly. Our extensive inventory and competitive prices make us the go-to source for all your sprayer needs. Look no further than Sprayers and Parts at sprayersandparts.com if you are in search of Genuine Graco FT500 electric airless sprayer parts. Our website boasts a diverse range of genuine Graco Sprayer parts.
