Graco DutyMax GH230 HD Pump Parts List (24W999)

Maintain & Upgrade with Precision-Engineered Graco DutyMax GH230 HD Pump Parts List (24W999)

DutyMax GH230 HD puts gas-powered muscle behind Graco’s Endurance™ lower, feeding block filler, asphalt emulsion, and fibered roof coatings at up to 2.0 gpm and 3 300 psi. When a belt squeals, a packing weeps, or a seat chips, the whole rig grinds to a halt—and your crew’s payroll meter keeps spinning. That’s why rental yards, municipal striping departments, and commercial roofers rely on SprayersAndParts for factory-serialized rods, packings, belts, check balls, bearings,control panels and any graco accessories. Each kit is bench-tested, heat-sealed, and shipped the same afternoon you order, complete with torque specs so you can finish the swap in the time it takes for the compressor to cycle.

Why Choose Genuine Graco DutyMax GH230 HD Pump Parts (24W999)?

• Chromex® Rod + MaxLife™ Seats — nitrided 64 Rc hardness repels sand-filled mastics that chew stainless knock-offs.
• V-Max Blue™ Packings — leather/UHMW stack self-lubricates from 40 °F dawn starts to 120 °F hot-roof jobs.
• Antistatic 5V-60 EPDM Belts — built for continuous 3 000 psi load; generic lawn-mower belts glaze and slip.
• Integrated Surge Suppressor — OEM control box absorbs 260 VAC generator spikes that fry clone MOSFETs.
• Warranty Stays Live — only genuine parts keep Graco’s one-year Endurance lower and engine warranty intact.

Key Technical Specs at a Glance

One Parts Bin Protects Multiple Money-Makers

Graco’s gas-hydraulic family shares drive belts, seats, and packings. Stocking one 24W999 kit rescues:

• DutyMax GH230 HD & ProContractor — factory platform.
• GH300 & GH733 — belt, rod, ball, and 30-mesh filter drop straight in (add belt shim).
• GMAX 7900 — same Endurance pump lower; swap manifold gasket.
• LineLazer V 3900 Stripers — Easy-Out™ filter core, belt, and gun cartridge match.
• Ultra Max II 1095/1595 — seats, balls, 60-mesh filters, and RAC X guards interchange.
• TrueCoat 360 DS Parts — LP tips and guards let handheld touch-ups match main-gun texture.

Top-Moving DutyMax GH230 HD Parts

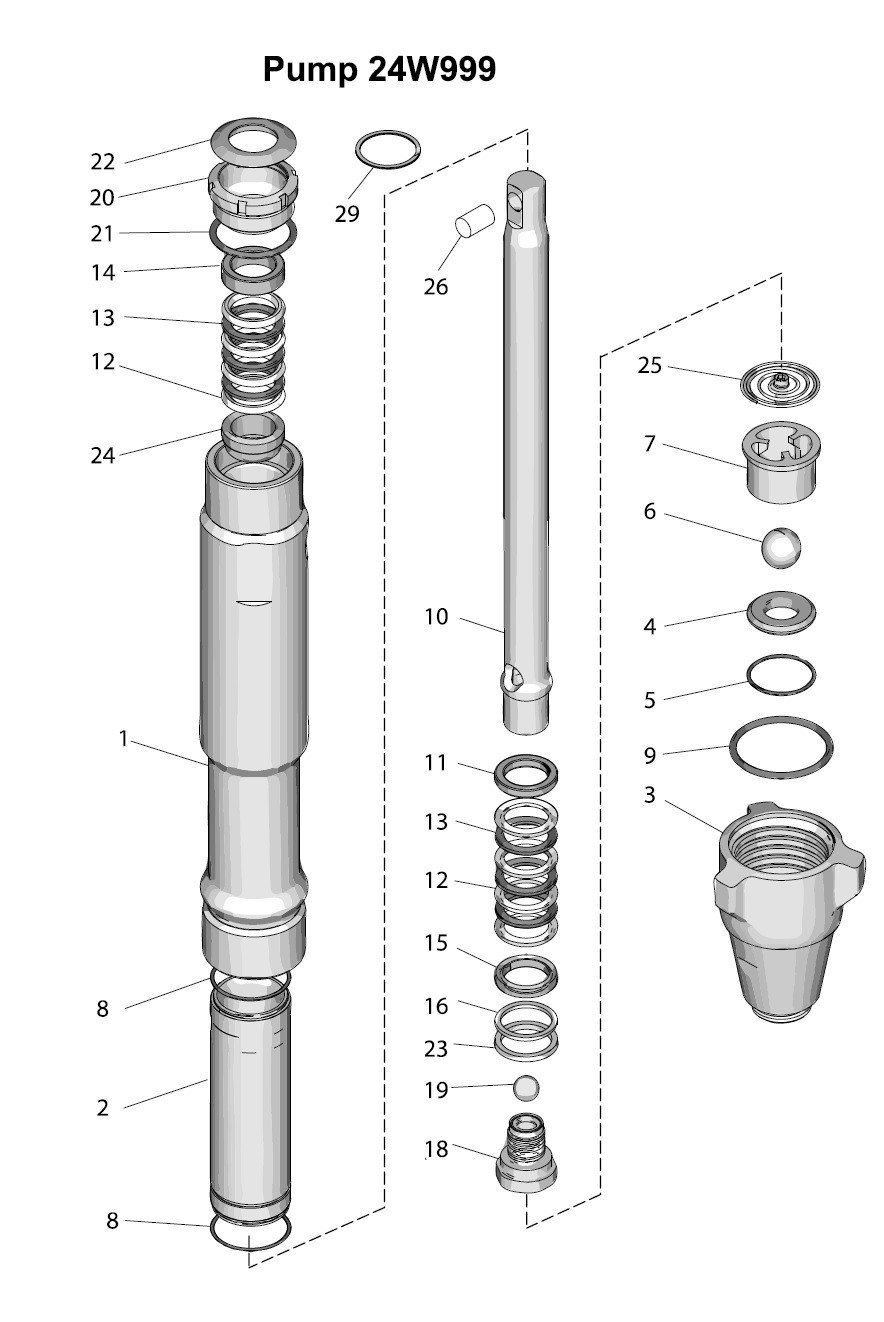

1. 24W999 Endurance™ Pump Lower — Chromex rod, V-Max packings, MaxLife seats, pressure-tested at 5 000 psi.
2. 17F332 Antistatic 5V-60 Belt — oil-resistant EPDM with aramid cords; replaces two clone belts every season.
3. Easy-Out™ Filter Pack — 30-mesh yellow (roof coat), 60-mesh black (latex), 100-mesh blue (enamel).
4. 240 797 BlueMax II 100-ft Hose — ⅜″ ID, 3 300 psi dual swivel; maintains 2 900 psi at 0.031″ tip.
5. 17G180 RAC X LP 517 Tip + Guard — sprays satin at 1 400 psi; 18 % overspray reduction.
6. Pump Armor™ Gallon — rust-proofer that keeps leather packings supple through winter.

Five Field-Tested Tips for a 1 000-Hour Pump

• Warm Flush 100 °F — dissolves latex 30 % faster; BlueMax liners rated 160 °F.
• Add TSL Every Break — five drops keep leather packings from dry-skiving.
• Retension Belt After First Hour — ½″ deflection at 10 lb; glazed belts slip and overheat oil.
• Rotate Hose Ends Weekly — equalizes liner wear, keeps SmartControl capacitance steady.
• Mesh-to-Tip Rule — 30-mesh ≥0.025″ tips; 60-mesh for 0.017–0.023″; 100-mesh for graco fine-finish guns.

Frequently Asked Questions

Will 24W999 fit my GH300?

Yes—rod stroke identical; belt spacer shim included.

Max hose length with a 0.031″ tip?

200 ft total: ⅜″ BlueMax first 150 ft, ¼″ whip last 50 ft; maintain 2 900 psi.

Can I spray solvent enamel?

Packings solvent-rated; flush with mineral spirits and store in Pump Armor™.

Ready to Swap Downtime for Billable Gallons?

Add the Endurance pump, Easy-Out filters, and RAC X LP tip bundle to your cart. We’ll ship —so tomorrow your DutyMax GH230 roars to life, sprays smooth, and keeps invoices flowing.

Shop GH230 HD Parts →
