Graco GH200 Fan Belt Parts

Find, Fit, and Finish Faster with Graco GH200 Fan Belt Parts Essentials

You know the scene all too well: a highway-stripe contract is on the clock, daylight is burning, and every minute the pavement crew waits for a stalled sprayer feels like pouring revenue straight into the storm drain. Somewhere inside the thumping heart of that Graco GH200, a fan belt has begun to glaze and squeal. Ignore it and the belt will snap, the hydraulic pump will stall, and crews will start sweeping paint chips instead of laying fresh yellow lines. That nightmare is precisely why pros bookmark Sprayersandparts.com and keep genuine Graco GH200 fan belt parts riding shotgun in the work van.

Why Choose Genuine Graco GH200 Fan Belt Parts?

• Profit-First Tolerances: Factory belts are cut, cured, and cogged to micro-accurate angles that maintain drive-pulley tension and stop the harmonic flutter that shreds copycat belts long before warranty ink dries.
• Chemical Resilience: Graco compounds each belt with heat-resistant elastomers blended to shrug off diesel fumes, UV blast, and atomized solvent—conditions that turn no-name belts brittle and glassy in weeks.
• Warranty Coverage: By Graco’s global guarantee.

Pro Tips for Long-Term Reliability

1. Log Hours, Not Months: Replace belts every 600 hours or at the first sign of glazing. A belt’s calendar birthday means nothing compared to the brutal math of RPM and tension cycles.
2. Tension Every Tuesday: Set a recurring Tuesday walk-around. Cold-start the GH200, kill the motor, pop the guard, and press your thumb midway between pulleys. The belt should deflect roughly 3/8-inch. Too loose? Heat will polish the ribs and invite slippage. Too tight? Bearings cry and you buy a new tensioner.
3. Pair with Fresh Filters: Whenever you drop a belt, swap the inline screens called out in the graco parts replacement schedule. Clean flow reduces RPM spikes caused by cavitation.
4. Color-Code Spares: Green tags for belts, blue for governors, red for hydraulic seals. Mixing a GH200 belt into the Graco TrueCoat 360 Electric TrueAirless Sprayer tote is the fastest way to strand a night crew.
5. Stage a Spare Pulley: Belts rarely fail alone. Keep an extra pulley and key in the same bin. Ten dollars of aluminum can save ten hours of overtime.

Your Next Move—Lock in Uptime

Replay the nightmare of a rig coughing mid-stripe, cars whipping past, and a foreman counting lost minutes. Or choose the calmer path: click the authentic Graco GH200 Fan Belt Parts into your cart, toss in a pair of backup graco 3400 parts, top off with a fresh graco whip hose, and schedule belt swaps during tomorrow’s warm-up stretch. Later, while the competition scrambles for replacements, you’ll be banking finishing bonuses and packing gear before lunch.

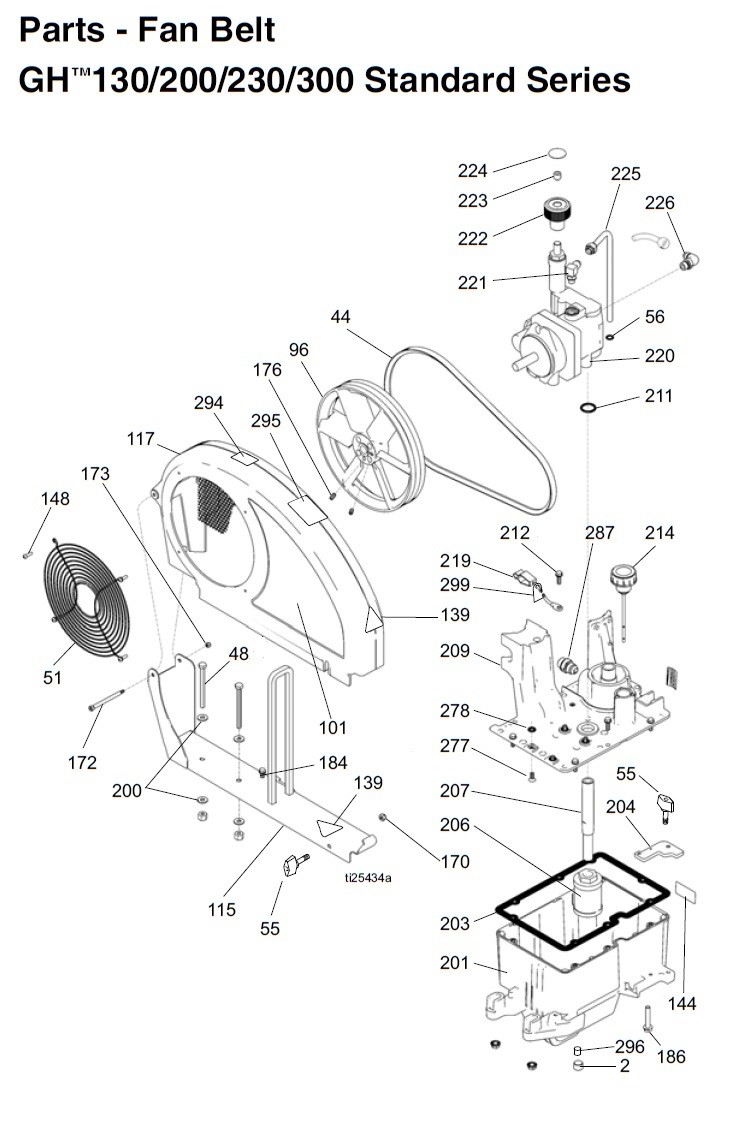

This section is crucial for the overall functionality of the sprayer, ensuring that it operates smoothly and efficiently. One of the most essential parts in this section is the Graco 119433 Grip Notch Vee Belt AX41. This belt is designed to provide a secure grip and efficient power transmission, which is vital for the sprayer’s operation. Another important component is the Graco 117284 Fan Guard Grill, which protects the fan from debris and damage, ensuring that it continues to function properly. Graco 15E410 Fan Pulley is also a key part, as it helps to drive the fan and maintain the correct tension on the belt. Without these components, the fan belt section would not be able to perform its critical role in the sprayer’s operation.

In addition to these parts, there are several other components that are essential for maintaining the fan belt section of the Graco GH200 paint sprayer. Graco 288261 Belt Guard Rail Assembly and Graco 288734 Belt Guard Painted are both important for protecting the belt and pulley system from external damage and wear. These guards help to extend the life of the belt and pulley by preventing debris and other contaminants from entering the system. Graco 120726 Breather Filler Cap is another crucial component, as it is used for gauging the proper hydraulic fluid level, it allows for proper ventilation and prevents the buildup of pressure within the system. This helps to ensure that the sprayer operates safely and efficiently. Graco 116919 Hydraulic Suction Filter Screen is also important, as it helps to filter out contaminants from the hydraulic fluid, preventing damage to the pump and other components.

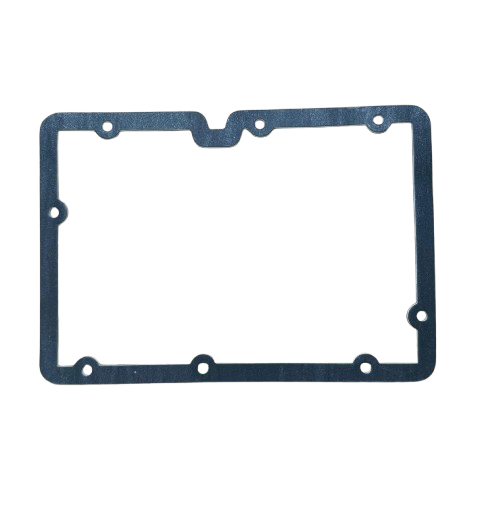

Finally, Graco 15J363 Reservoir Cover and Graco 120604 Reservoir Gasket are essential for maintaining the integrity of the hydraulic system. The reservoir cover helps to protect the hydraulic fluid from contamination, while the gasket ensures a tight seal, preventing leaks and maintaining the correct pressure within the system. Regular maintenance and replacement of these parts are crucial for ensuring the long-term performance and reliability of the Graco GH200 paint sprayer. By keeping these components in good condition, you can prevent costly repairs and downtime, ensuring that your sprayer is always ready for use. Investing in genuine OEM parts is the best way to ensure that your sprayer continues to operate at its best, providing you with reliable performance for years to come.

Sprayersandparts.com—where downtime goes to die and productivity rolls off the pallet.
