Graco GH200 Standard Series Parts (1)

Graco 235014 Prime Drain Valve Spray Kit

Item No: -

Part Number: 235014

UPC Number: 633955349100

Maintain your Graco airless sprayer with the 235014 Prime Drain Valve Spray Kit. Ensures smooth prim...

Retail Price: $116.00

You save: $24.82 (21.40%)

Our Price: $91.18

QTY:

Graco 245103 Drain Valve Assembly

Item No: --

Part Number: 245103

UPC Number: 633955644045

Graco 245103 Drain Valve Assembly a Reliable OEM Replacement for Pressure Control Graco 245103 Drai...

Retail Price: $262.00

You save: $32.75 (12.50%)

Our Price: $229.25

QTY:

Graco 246173 Hydraulic Oil Filter

Item No: ----

Part Number: 246173

UPC Number: 633955887626

Retail Price: $80.50

You save: $6.68 (8.30%)

Our Price: $73.82

QTY:

Graco 24W753 Filter Repair Kit

Item No: ---

Part Number: 24W753

UPC Number: 633955696822

Retail Price: $530.00

You save: $142.04 (26.80%)

Our Price: $387.96

QTY:

Graco 112827 Snap Button

Item No: 35

Part Number: 112827

UPC Number: 633955658240

The Graco 112827 Snap Button provides secure and reliable panel and frame fastening for select Graco...

$6.30

QTY:

Graco 119420 Pneumatic Wheel

Item No: 39

Part Number: 119420

UPC Number: 633955036376

The Graco 119420 Pneumatic Wheel is a durable, air-filled replacement wheel designed for Graco Hi-Bo...

Retail Price: $80.25

You save: $6.65 (8.29%)

Our Price: $73.60

QTY:

Graco 156306 Flat Washer

Item No: 54

Part Number: 156306

UPC Number: 633955237209

The Graco 156306 Flat Washer is a genuine OEM hardware part designed for stability and secure assemb...

$18.77

QTY:

Graco 243814 Coupled Hose

Item No: 63

Part Number: 243814

UPC Number: 633955698345

Retail Price: $59.00

You save: $4.48 (7.59%)

Our Price: $54.52

QTY:

Graco 120211 Retaining E-Ring

Item No: 70

Part Number: 120211

UPC Number: 633955135109

Graco 120211 Retaining E-Ring – Precision Component for High-Pressure Spray Systems Optimize your ...

$9.47

QTY:

Graco 15J645 Washer

Item No: 75

Part Number: 15J645

UPC Number: 633955227958

The Graco 15J645 Washer provides proper spacing and load distribution in spray system assemblies, ...

$6.30

QTY:

Graco 189246 Warning Label

Item No: 79

Part Number: 189246

UPC Number:

$5.00

QTY:

Graco 17D947 Label Set

Item No: 79

Part Number: 17D947

UPC Number: 755652064800

Retail Price: $59.75

You save: $4.53 (7.58%)

Our Price: $55.22

QTY:

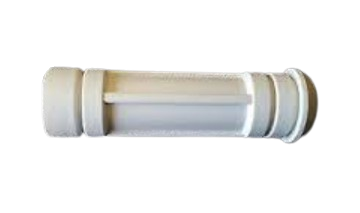

Graco 192027 Cart Sleeve

Item No: 81

Part Number: 192027

UPC Number: 633955773653

$12.26

QTY:

Graco 194317 English Warning Label

Item No: 91

Part Number: 194317

UPC Number: 633955876590

$5.00

QTY:

Graco 288732 Drain Hose Repair Kit

Item No: 103

Part Number: 288732

UPC Number: 633955005914

Retail Price: $103.50

You save: $8.59 (8.30%)

Our Price: $94.91

QTY:

Graco 24M397 Cart Handle

Item No: 112

Part Number: 24M397

UPC Number: 633955660540

Retail Price: $116.50

You save: $9.67 (8.30%)

Our Price: $106.83

QTY:

Graco 288169 Cart Frame

Item No: 116

Part Number: 288169

UPC Number: 633955210752

Graco 288169 Cart Frame

Retail Price: $323.00

You save: $44.9 (13.90%)

Our Price: $278.10

QTY:

Graco 109032 Pan Head Machine Screw

Item No: 132

Part Number: 109032

UPC Number: 633955196346

Graco 109032 Pan Head Machine Screw is an OEM fastener designed for multiple Graco sprayers, ensurin...

$9.89

QTY:

Graco 193710 Valve Seat

Item No: 150A

Part Number: 193710

UPC Number: 633955877009

Graco 193710 Valve Seat a Reliable OEM Component for Consistent Fluid Sealing Graco 193710 Valve Se...

$6.30

QTY:

Graco 193709 Valve Seat

Item No: 150B

Part Number: 193709

UPC Number: 633955876996

Graco 193709 Valve Seat a Precision OEM Replacement for Airless Systems Graco 193709 Valve Seat is ...

$21.81

QTY:

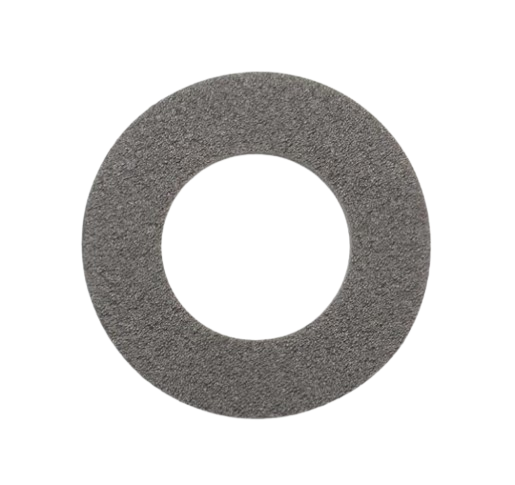

Graco 114797 Gasket

Item No: 150C

Part Number: 114797

UPC Number: 633955876989

OEM sealing gasket for Graco sprayers & paint equipment — part # 114797. Used in GMax 3900/5900...

$6.30

QTY:

Graco 114708 Compression Spring

Item No: 150E

Part Number: 114708

UPC Number: 633955876972

OEM Graco compression spring for valve assemblies and spray equipment. Part number: 114708. Fits...

$6.30

QTY:

Graco 15G563 Prime Drain Valve Handle

Item No: 150F

Part Number: 15G563

UPC Number: 633955112773

The Graco 15G563 Valve Handle provides smooth, reliable control for valve operation in Graco spray s...

$15.84

QTY:

Graco 116424 Cap Nut

Item No: 150G

Part Number: 116424

UPC Number: 633955884298

The Graco 116424 Cap Nut is an OEM cap‑style nut used to securely fasten valves or housings in flu...

$6.30

QTY:

Graco 110838 Lock Nut

Item No: 174

Part Number: 110838

UPC Number: 633955577107

Ensure secure assembly and reliable operation of your Graco sprayer components with this durable OEM...

$9.43

QTY:

Graco 116038 Wave Spring Washer

Item No: 180

Part Number: 116038

UPC Number: 633955947979

The Graco 116038 Wave Spring Washer is a genuine OEM component designed to maintain tension and redu...

$11.66

QTY:

Graco 101354 Pin

Item No: 182

Part Number: 101354

UPC Number: 633955257016

The Graco 101354 Pin is a genuine OEM spring straight pin used to secure frame and linkage component...

$8.60

QTY:

Graco 867539 Screw 5/16-18 X3.75 Hx Hd

Item No: 199

Part Number: 867539

UPC Number: 763289104462

$3.46

QTY:

Graco 100527 Plain Washer

Item No: 200

Part Number: 100527

UPC Number: 633955203617

Graco 100527 Plain Washer is a genuine OEM flat washer designed for load distribution and surface pr...

$8.74

QTY:

Graco 119426 Machined Hex Washer Head Screw

Item No: 213

Part Number: 119426

UPC Number: 633955084186

Ensure secure and reliable assembly in your Graco equipment with the 119426 Machined Hex Washer Head...

$11.02

QTY:

Graco 198841 Press Bypass Ball Retainer

Item No: 215

Part Number: 198841

UPC Number: 633955835924

$8.77

QTY:

Graco 100084 Metallic Ball

Item No: 216

Part Number: 100084

UPC Number: 633955609068

The Graco 100084 Metallic Ball is a durable OEM check-valve component used in Graco hydraulic spraye...

$15.55

QTY:

Graco 116967 Compression Spring

Item No: 217

Part Number: 116967

UPC Number: 633955837300

The Graco 116967 Compression Spring ensures reliable tension and smooth operation in your sprayer sy...

$6.30

QTY:

Graco 15E599 Filter Base

Item No: 228

Part Number: 15E599

UPC Number: 633955091351

Graco 15E599 Filter Base OEM outlet filter housing that protects downstream fluid path by capturin...

Retail Price: $149.00

You save: $15.5 (10.40%)

Our Price: $133.50

QTY:

Graco 15G331 Pipe Plug

Item No: 229

Part Number: 15G331

UPC Number: 633955146808

The **Graco 15G331 Pipe Plug** is a durable OEM component designed to securely seal unused ports in ...

$11.02

QTY:

Graco 196178 Nipple Adapter

Item No: 230A

Part Number: 196178

UPC Number: 633955961678

The Graco 196178 Nipple Adapter is an OEM connector designed for reliable fluid connections in high-...

$9.04

QTY:

Graco 244067 Easy Out Pump Manifold Long Filter 60 mesh

Item No: 231

Part Number: 244067

UPC Number: 633955960077

The Graco 244067 Easy Out Pump Manifold Filter (Long, 60 Mesh) keeps paint clean and ensures smooth...

Retail Price: $19.10

You save: $6.11 (31.99%)

Our Price: $12.99

QTY:

Graco 15C766 Diffusion Tube

Item No: 232

Part Number: 15C766

UPC Number: 633955040274

Graco 15C766 Diffusion Tube – Maintain Consistent Pressure and Pattern Quality. Graco 15C766 Di...

$8.82

QTY:

Graco 117285 O-Ring Packing

Item No: 233

Part Number: 117285

UPC Number: 633955833821

Graco 117285 O-Ring Packing provides a secure, leak-free seal for the manifold filter housing on Gra...

$9.83

QTY:

Graco 15C765 Filter Cap

Item No: 234

Part Number: 15C765

UPC Number: 633955033559

The Graco 15C765 Filter Cap secures the filter housing in high-pressure sprayers, maintaining proper...

Retail Price: $52.50

You save: $2.89 (5.50%)

Our Price: $49.61

QTY:

Graco 196177 Nipple Adapter

Item No: 235

Part Number: 196177

UPC Number: 633955642959

Graco 196177 Nipple Adapter Genuine Hose Connector Graco 196177 Nipple Adapter is an authentic Gr...

$7.38

QTY:

Graco 2007096 Press Fluid Gauge

Item No: 236

Part Number: 2007096

UPC Number: 769946859607

The Graco 2007096 Pressure Fluid Gauge provides accurate pressure monitoring for high-pressure Graco...

$104.50

QTY:

Graco 243683 Union Swivel

Item No: 237

Part Number: 243683

UPC Number: 633955139930

OEM Graco GH200 Standard Series Sprayer Parts

Downtime devours profit. Graco® GH200 Standard Series Gas-Hydraulic Convertible Sprayer (part #24W925/24W926) delivers up to 2.15 gpm at 0 – 3300 psi through tips to .047-in, powered by a 5.5 HP Honda® GX160 and an Endurance™ Chromex® pump. When packings wear or the filter block gums up, your schedule—and reputation—take the hit. That’s why pros trust SprayersAndParts.com for factory-fresh graco oem parts that bolt in, prime up, and put revenue back on the clock.

Maintain & Upgrade with Precision-Engineered Graco GH200 Standard Series Parts

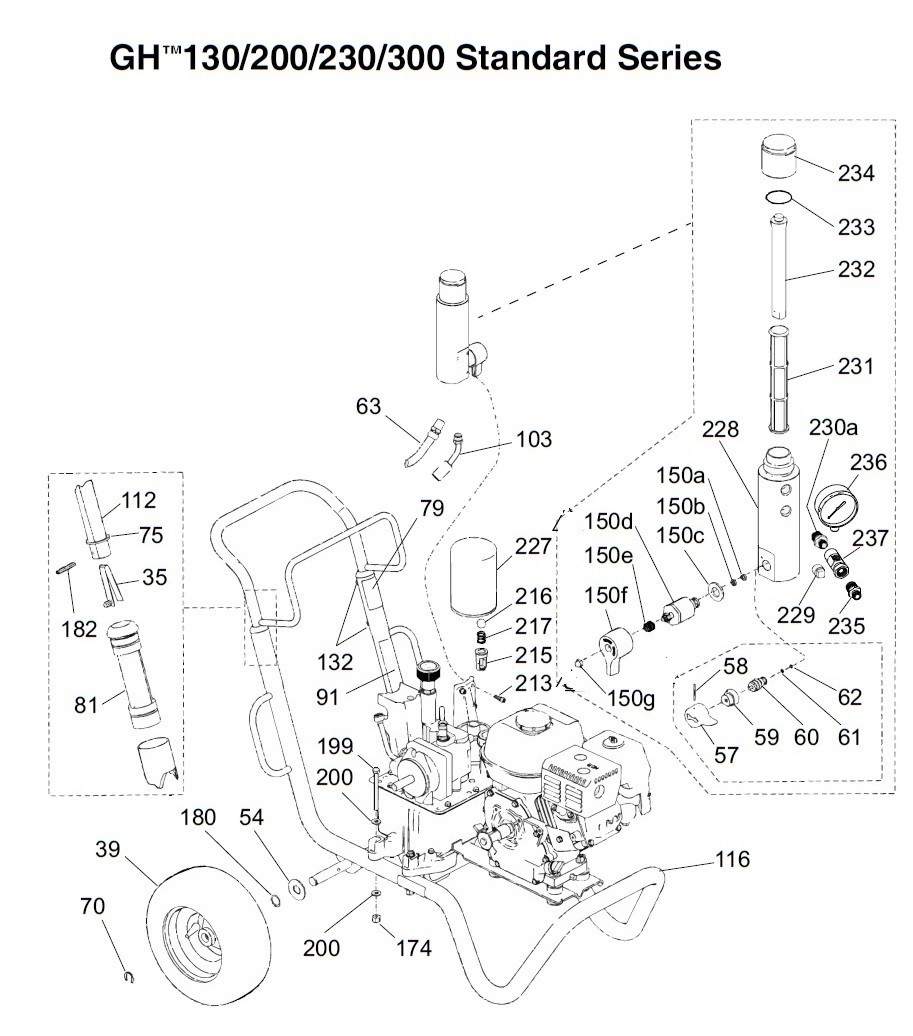

Our interactive Graco Sprayer Parts Diagram maps every screw from the SmartControl™ hydraulic block to the 50-mesh Easy-Out™ filter. Click any call-out, see live inventory, and drop genuine parts into one friction-free cart—no cross-referencing PDFs at midnight. Whether you run a roof-coating crew or a fine-finish cabinet shop, we stock the correct Chromex rod (248206), V-Max Blue™ packing kit (17D485), 60-mesh manifold filter (181072), and every O-ring called out in manual 311 797.

Why Choose Genuine GH200 Parts over After-Market Copies?

Chromex® Wear Layer. OEM pistons get a nickel-diffusion ChromeX finish that lasts 2× longer than flash-chrome imports, maintaining 90 % volumetric efficiency past 1,000 hours.
3300 psi Hydro-Test. Manifold blocks and hoses are burst-checked to 5,000 psi—crucial when a clogged filter spikes pressure during elastomeric runs.
Convertible Pump Lower. Only OEM components keep the tool-free switch from gas to electric smooth; copy-cats mis-align the pin boss and seize under load.
Fully Warrantied. Backed by Graco coverage—stay genuine, stay covered.
Color-Coded QR Guides. Every kit links to a 90-second micro-tutorial—no guessing torque on the rooftop.

Core Specs & Top-Seller Kits

Max Working Pressure	3300 psi / 228 bar
Max Flow	2.15 gpm / 8.1 L min^-1
Engine	Honda® GX160 5.5 HP • Lo-Boy frame
Packing Kit	248212 V-Max Blue™ (rod, seals, seat)
Piston Rod	248206 Chromex® hardened stainless
Manifold Filter	181072 60-mesh Easy-Out™
Recommended Tip Guard	RAC X™ blue – fits all graco spray tips and guards

Cross-Fleet Compatibility—One Cart, Many Sprayers

Graco engineers build on modular platforms; stocking one kit can rescue several rigs and protect your mixed fleet investment:

GMAX 7900 Gas Sprayer. Shares piston rod, filter core, and RAC X guard—streamlines graco gmax 7900 maintenance bins.
Ultra Max II 795 & 695. Chromex rods and 60-mesh manifold filters interchange, perfect for crews running a graco fine finish sprayer in the same trailer.
LineLazer 3400 Stripers. 181072 filter and 17D485 packing stack match, covering pavement & lot-striping contracts with GH200 stock.
TrueCoat 360 Handhelds. RAC X FFLP tips unify fan geometry, so touch-ups sprayed with graco truecoat 360 parts match GH200 field coats.
Magnum Project Painter Plus. Same tip guard and inlet strainer via adapter 17M223; good to have the graco magnum x7 replacement spray gun as emergency loaner.

Smart Accessory Bundles to Extend Pump Life

BlueMax II Hose Pack. 50 ft × ⅜ in main + 3 ft whip dampen pressure spikes, adding 20 % life to seals—critical during roof runs.
RAC X LP & FFLP Tip Set. Twelve low-pressure patterns reduce overspray 50 % and lower amp-draw, easing wear on pump packings.
Pump Armor® Winterization Kit. One gallon anti-rust fluid, quick-coupler and storage plug keep Chromex rods corrosion-free all off-season.
Ground Strap & Static Dissipator. Eliminates arcing when spraying silica-filled elastomerics—protects SmartControl electronics.
Quick-Assist graco repair kit. Includes seat, balls, O-rings, and 248206 rod; swap a seized pump in 20 minutes without removing hoses.

Field-Proven Maintenance Blueprint—Five Habits for 1 000-Hour Pumps

1 • Log Gallons & Hours. Swap packings every 750 gal latex / 400 gal elastomeric.
2 • Flush Warm. 38 °C water dissolves acrylic faster; half-pressure back-flush keeps grit out of the transducer.
3 • Lube the Throat. Two drops TSL™ every coffee break keep rods mirror-bright.
4 • Re-Torque Monthly. Crankcase bolts 20 N·m; loose bolts hammer gears.
5 • Stock Redundancy. One $65 filter + $200 repair kit save a $5 000 shift—carry two per crew.

Add to Cart, Track, Spray

Open the site, tick your Chromex rod, packing kit, and filter elements, then hit Add to Cart. One freight fee, one tracking link, one bullet-proof fix—see you on tomorrow’s jobsite.
